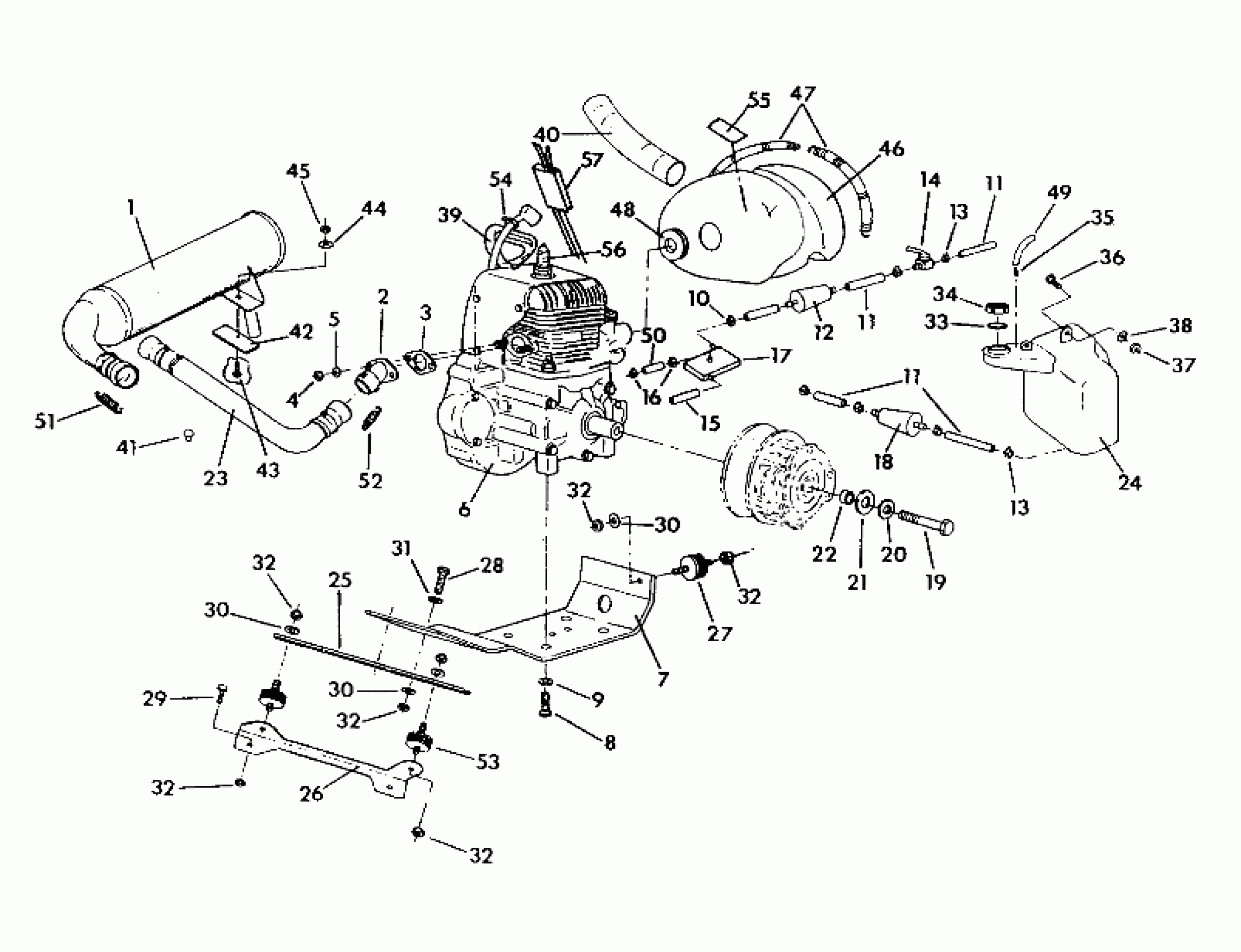

Polaris LITE - 0923033 ENGINE MOUNTING Star Lite (4921332133021A) Diagram
#
1
DESC NOT_AVAILABLE
1260559-067
Unavailable
2
MANIFOLD WELD.
1260566-029
$23.79
3
GASKET,EXHAUST
5830001
$2.47
4
NUT(10)
7542323
$1.99
5
LOCK WASHER(10)
7552901
$1.49
6
ENG.,EC25PS-01 [No Longer Available]
1211474
Unavailable
7
PLATE,ENG.MT,BLK.
5222539-067
$59.60
8
BOLT(10)
7512539
$3.99
9
WASHER LOCK(10)
7553101
$3.99
10
CLAMP-HOSE(10)
7080134
Unavailable
11
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
11
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
11
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
12
FILTER FUEL,(10)
2530008
$4.84
13
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
13
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
14
VALVE,FUEL SHUT-OFF
7052039
Unavailable
15
FUEL LINE3/16ID-2FT. Substituted by 8450037-600
5521133
Unavailable
16
HOSE CLAMP, RED
7080003
$1.49
17
PUMP, FUEL
3083436
Unavailable
18
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
19
BOLT(10)
7512566
$30.79
20
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
21
WASHER-.440X1.25X.190 FL-Y
5210748
$3.99
22
BUSHING-.437 X.770 X.50
5430261
$7.19
23
DESC NOT_AVAILABLE
1260558-067
Unavailable
24
TANK, OIL
5431225
Unavailable
25
STRAP,ENG.MT,BLK.
5211266-067
$17.30
26
MOUNT, ENGINE Substituted by 5222540-067
5222540
Unavailable
27
MOUNT-MTR.
3110020
Unavailable
28
BOLT(10)
7512405
$3.99
29
BOLT(10)
7512457
$3.99
30
WASHER(10) Substituted by 7555806
7555720
$0.79
30
WASHER(10) Substituted by 7555806
7555720
$0.79
30
WASHER(10) Substituted by 7555806
7555720
$0.79
31
WASHER-LOCK(10)
7571611
$3.19
32
NUT LOCK(10)
7542403
$3.99
32
NUT LOCK(10)
7542403
$3.99
32
NUT LOCK(10)
7542403
$3.99
32
NUT LOCK(10)
7542403
$3.99
32
NUT LOCK(10)
7542403
$3.99
32
NUT LOCK(10)
7542403
$3.99
33
GASKET-OIL CAP
5810141
$2.39
34
CAP,OIL TANK
5430779
$14.56
35
FITTING, OUTLET
7052042
$8.99
36
BOLT(10)
7512240
$3.99
37
NUT-LOCK(10)
7542122
$1.49
38
WASHER,WROUGHT(10)
7558302
$1.59
39
HANDLE-RECOIL
5430520
Unavailable
40
HOSE-SILENCER
5410340
Unavailable
41
DAMPNER, VIB.
5410467
$8.79
42
PAD
5810249
Unavailable
43
BOLT-CARRIAGE(10)
7512263
$3.99
45
NUT, LOCK(10)
7542103
$5.59
46
BOX, SILENCER
5431237
Unavailable
47
SPRING,HOLDDOWN
7041244
$11.79
48
BOOT-SILENCER
5410311
Unavailable
49
LINE,VENT,(38.0'') Substituted by 8360009-600
5521087
Unavailable
50
GOODYEAR,1/4"SAE#30R7 Substituted by 5521132
8450040
Unavailable
51
SPRING-EXHAUST(10)
7042029
$4.84
52
SPRING, EXHAUST(10)
7042031
$5.65
53
MOUNT, MOTOR
3110028
Unavailable
54
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
55
DECAL,SILENCER [No Longer Available]
7072087
Unavailable
56
SPARKPLUG (10)
3070156
$3.99
57
CABLE, THROTTLE Substituted by 7080556
7080410
Unavailable
