CHASSIS and SEAT Indy Lite/Star Lite (4921332133001A)

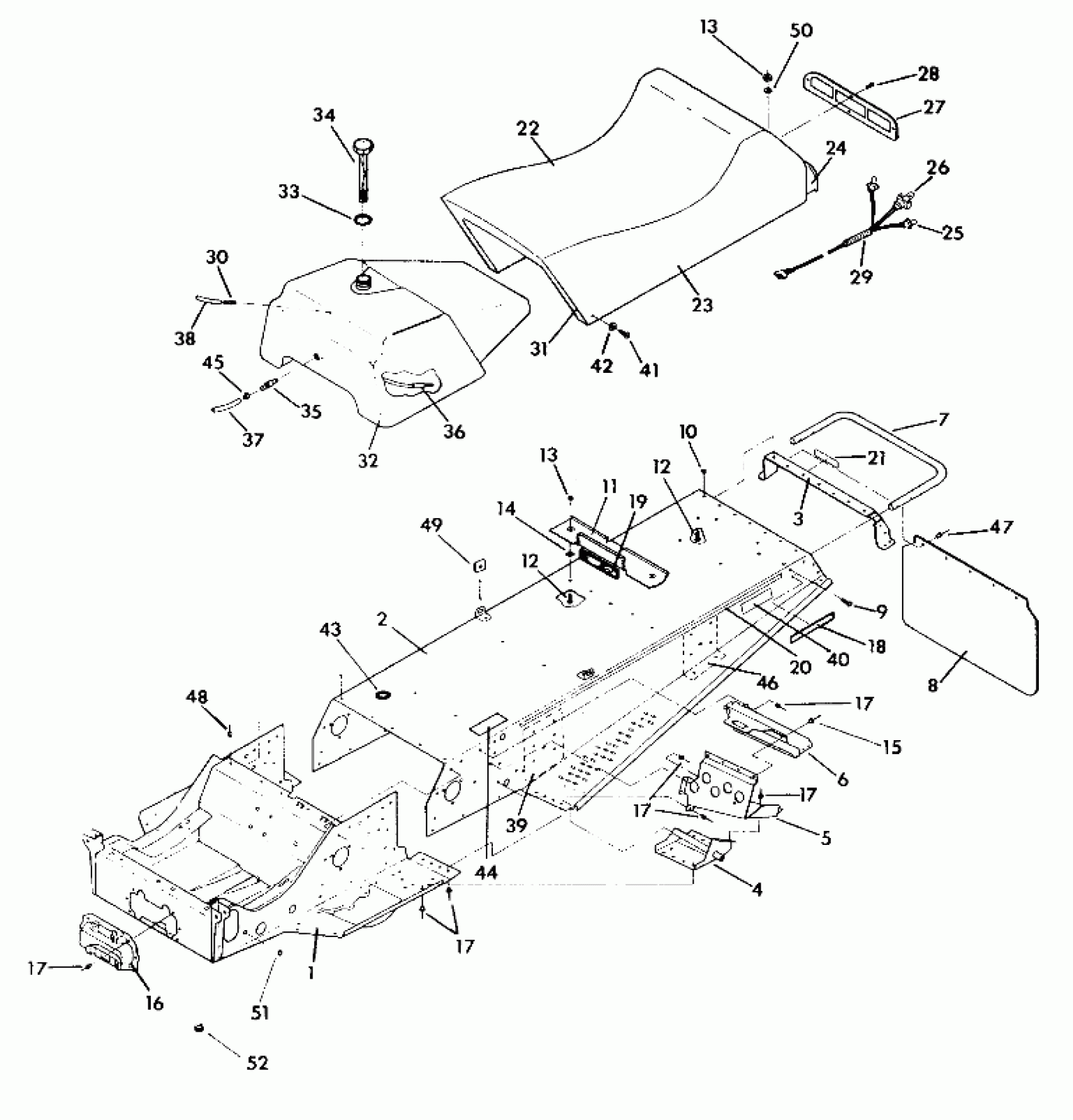

Polaris LITE - 0923033 CHASSIS and SEAT Indy Lite/Star Lite (4921332133001A) Diagram
#
1
BULKHEAD,'LITE INDY' (Indy)
1011784-067
Unavailable
1
BULKHEAD,'STARLITE' (Star)
1011785-067
Unavailable
2
TUNNEL ASM.
1011788
Unavailable
3
PANEL,REAR CLOSE-OFF
5222313
Unavailable
3
PANEL,REAR CLOSE-OFF
5222313
Unavailable
4
SUPPORT,LH TRLG.ARM,BLK.
1011792-067
Unavailable
4
SUPPORT,RH TRLG.ARM,BLK.
1011793-067
Unavailable
5
FOOTREST,RH LOWER Substituted by 5220643-067
5220643
Unavailable
5
FOOTREST,LH LOWER Substituted by 5220642-067
5220642
Unavailable
6
FOOTREST,LH UPPER
5222308
Unavailable
6
FOOTREST,RH UPPER Substituted by 1011826
5222309
Unavailable
7
BUMPER, REAR
5224429-067
Unavailable
8
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
9
SCREW(10)
7512252
Unavailable
10
RIVET Substituted by 7661829
7661828
Unavailable
11
STRAP,GAS TANK Substituted by 5222330-067
5221722
Unavailable
12
BOLT(10)
7512193
$2.39
12
BOLT(10)
7512193
$2.39
13
NUT-LOCK(10)
7542122
$1.49
13
NUT-LOCK(10)
7542122
$1.49
14
SPEED NUT(10)
7670021
$6.99
15
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
16
MOUNT,RADIUS ROD Substituted by 5630924
5130759
Unavailable
17
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
17
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
17
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
17
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
17
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
18
REFLECTOR RED
2670070
$9.91
19
CUSHION,TANK H.D.
5420126
Unavailable
20
STRIPE,TUNNEL(STARLITE) [No Longer Available] (Star)
7072916
Unavailable
20
STRIPE,TUNNEL(LITE) [No Longer Available] (Indy)
7072923
Unavailable
21
DECAL,TRACK SEAT(BLK.) [No Longer Available]
7073038
Unavailable
22
SEAT ASM,(LITE) Substituted by 2681472
2681476
Unavailable
23
COVER,SEAT,(LITE) Substituted by 2681473
2681477
Unavailable
24
HOUSING,TAILLIGHT
5430425
Unavailable
25
BULB TAILLIGHT(10)
4030015
$4.03
26
BULB, BRAKELIGHT
4030019
Unavailable
27
LENS,TAILLIGHT
5430423
Unavailable
28
SCREW(10)
7511840
Unavailable
29
HARNESS-TAILLIGHT Substituted by 2460399
2460226
Unavailable
30
VENT FITTING,TANK Substituted by 5430579
5430669
Unavailable
31
BUN,SEAT(INDY LITE) [No Longer Available]
5431213
Unavailable
32
TANK, FUEL Substituted by 2511188
5431210
Unavailable
33
GASKET, GAS CAP
5810513
$8.89
34
CAP,GAS
2511190
Unavailable
35
FITTING - OUTLET(10)
7052023
$24.99
36
FUELPICKUP,W/STRAINER
7052037
$12.94
37
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
38
LINE,VENT,(38.0'') Substituted by 8360009-600
5521087
Unavailable
39
BRKT,FR.SUSP,BLK.
5220542-067
Unavailable
40
DECAL,'340 LITE' [No Longer Available] (Indy)
7072942
Unavailable
41
BOLT(10)
7512297
$5.59
42
WASHER(10)
7555798
$1.49
44
Pad, Air Box
5810502
Unavailable
45
RING, COMPRESSION(10)
7080402
$1.60
46
BRKT,LH R.SUSP,BLK.
1011779-067
$31.41
46
BRKT,RH R.SUSP,BLK.
1011780-067
Unavailable
47
POP RIVET(50)
7621418
$1.49
48
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
49
NUT, RETAINER(10) Substituted by 7670060
7670059
$3.85
50
WASHER,WROUGHT(10)
7558302
$1.59
51
PLUG, HOLE(10)
7080416
$5.65
52
PLUG-HOLE (Indy)
7080398
$4.84
52
FOOTREST ASM,LH
1011830
$140.79
52
FOOTREST ASM,RH,(LITE)
1011825
Unavailable
