SUSPENSION Indy Lite and Star Lite (4919311931011A)

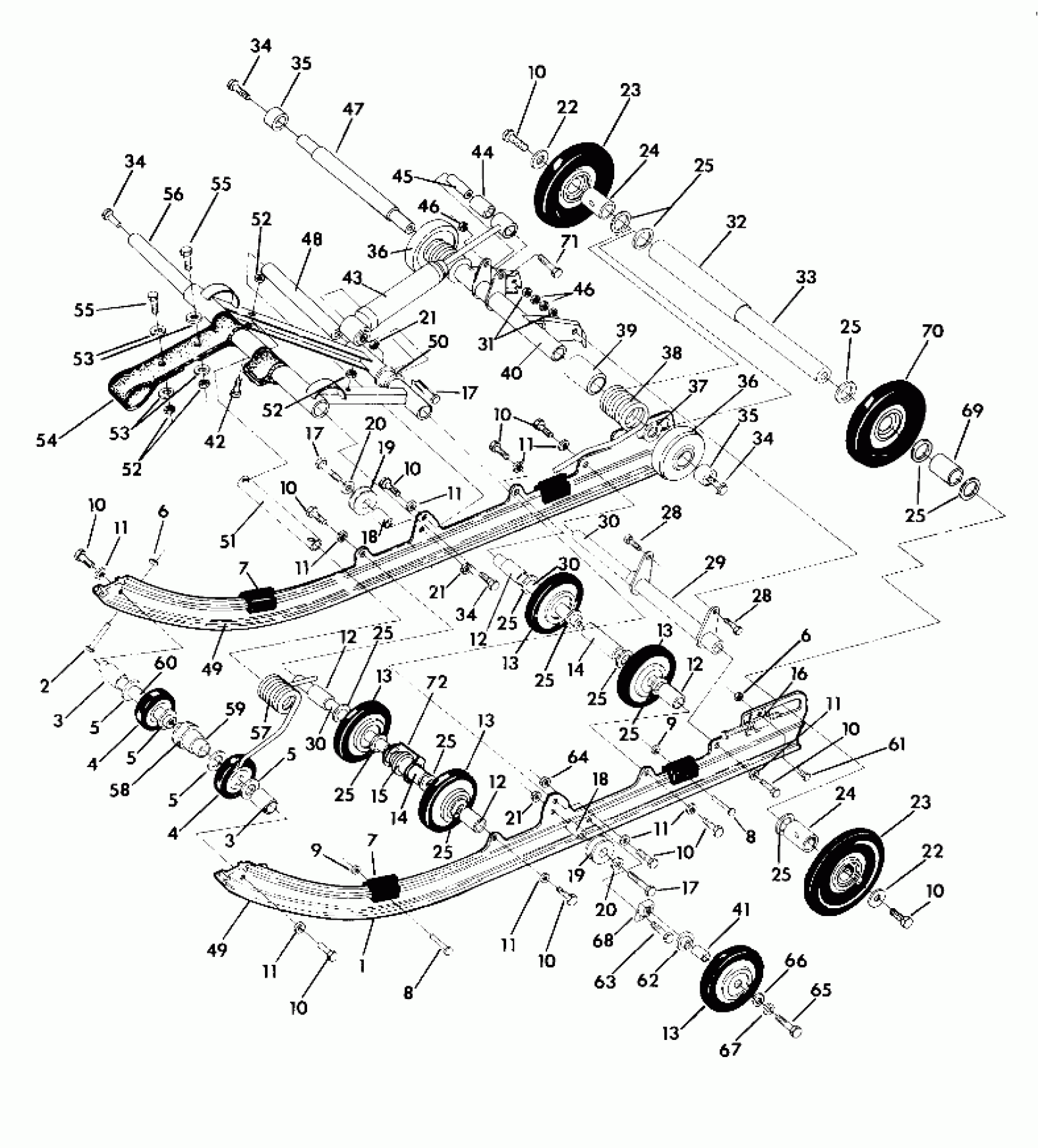

Polaris LITE - 0913033 SUSPENSION Indy Lite and Star Lite (4919311931011A) Diagram
#
1
RAIL ASM, RH (Incl. 7-9)
1540674
Unavailable
1
RAIL ASM, LH (Incl. 7-9)
1540673
Unavailable
2
SCREW(10)
7512227
$3.19
3
TUBE Substituted by 5332845-067
5332845
Unavailable
3
TUBE Substituted by 5332845-067
5332845
Unavailable
4
WHEEL, BOGIE
1594036
Unavailable
4
WHEEL, BOGIE
1594036
Unavailable
5
WASHER(10)
7555726
$1.59
5
WASHER(10)
7555726
$1.59
5
WASHER(10)
7555726
$1.59
5
WASHER(10)
7555726
$1.59
6
NUT-LOCK(10)
7542122
$1.49
6
NUT-LOCK(10)
7542122
$1.49
7
BUMPER-SUSPENSION Substituted by 5810554
5410315
Unavailable
7
BUMPER-SUSPENSION Substituted by 5810554
5410315
Unavailable
8
RIVET,(50)
7661609
Unavailable
8
RIVET,(50)
7661609
Unavailable
9
PALNUT(10)
7670009
$2.39
9
PALNUT(10)
7670009
$2.39
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
11
WASHER(10)
7552603
$1.49
11
WASHER(10)
7552603
$1.49
11
WASHER(10)
7552603
$1.49
11
WASHER(10)
7552603
$1.49
11
WASHER(10)
7552603
$1.49
11
WASHER(10)
7552603
$1.49
11
WASHER(10)
7552603
$1.49
11
WASHER(10)
7552603
$1.49
12
SPACER, OUTER
5332784
Unavailable
12
SPACER, OUTER
5332784
Unavailable
12
SPACER, OUTER
5332784
Unavailable
12
SPACER, OUTER
5332784
Unavailable
13
WHEEL-BOGIE
1543011
Unavailable
13
WHEEL-BOGIE
1543011
Unavailable
13
WHEEL-BOGIE
1543011
Unavailable
13
WHEEL-BOGIE
1543011
Unavailable
13
WHEEL-BOGIE
1543011
Unavailable
14
TUBE, SUSPENSION
5332783
Unavailable
14
TUBE, SUSPENSION
5332783
Unavailable
15
ROLLER-SPRING BOGIE
5430629
Unavailable
16
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
17
BOLT Substituted by 7515491
7515433
$1.59
17
BOLT Substituted by 7515491
7515433
$1.59
17
BOLT Substituted by 7515491
7515433
$1.59
18
Spacer
5332787
Unavailable
18
Spacer
5332787
Unavailable
19
ROLLER-SPRING
5430540
Unavailable
19
ROLLER-SPRING
5430540
Unavailable
20
WASHER(10)
7555743
Unavailable
20
WASHER(10)
7555743
Unavailable
21
NUT-LOCK(10)
7542439
$1.49
21
NUT-LOCK(10)
7542439
$1.49
21
NUT-LOCK(10)
7542439
$1.49
22
WASHER FLAT(10)
7555732
Unavailable
22
WASHER FLAT(10)
7555732
Unavailable
23
WHEEL, IDLER
1594037
Unavailable
23
WHEEL, IDLER
1594037
Unavailable
24
SPACER
5330153
Unavailable
24
SPACER
5330153
Unavailable
25
MACHINERY BUSHING(10)
7556301
$3.19
25
MACHINERY BUSHING(10)
7556301
$3.19
25
MACHINERY BUSHING(10)
7556301
$3.19
25
MACHINERY BUSHING(10)
7556301
$3.19
25
MACHINERY BUSHING(10)
7556301
$3.19
25
MACHINERY BUSHING(10)
7556301
$3.19
25
MACHINERY BUSHING(10)
7556301
$3.19
25
MACHINERY BUSHING(10)
7556301
$3.19
25
MACHINERY BUSHING(10)
7556301
$3.19
25
MACHINERY BUSHING(10)
7556301
$3.19
25
MACHINERY BUSHING(10)
7556301
$3.19
25
MACHINERY BUSHING(10)
7556301
$3.19
28
BOLT(10)
7515317
$4.79
28
BOLT(10)
7515317
$4.79
29
ARM,REAR PIVOT Substituted by 1540493-067
1540493
Unavailable
30
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$29.99
30
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$29.99
30
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$29.99
31
NUT, SHOULDER(10)
7542326
$19.99
32
SPACER Substituted by 5330152-067 (INDYLITE)
5330152
Unavailable
32
TUBESPACER,CTR.IDLER (STARLITE)
5330170
Unavailable
33
SHAFT,REAR IDLER
5020416
Unavailable
34
BOLT(10)
7515432
Unavailable
34
BOLT(10)
7515432
Unavailable
34
BOLT(10)
7515432
Unavailable
34
BOLT(10)
7515432
Unavailable
35
SPACER-CARR.WHEEL
5332730
$14.99
35
SPACER-CARR.WHEEL
5332730
$14.99
36
WHEEL-TRACK CARRIER
1543017
$48.56
36
WHEEL-TRACK CARRIER
1543017
$48.56
38
SPRING-SUSP.R.LH Substituted by 7041269
7041128
Unavailable
38
SPRING-SUSP.R.RH Substituted by 7041270
7041129
Unavailable
39
TUBE-SPRING
5521089
Unavailable
40
TORQUE ARM,REAR SUSP. Substituted by 1540494-067
1540494
Unavailable
41
SPACER
5332786
$7.99
42
BOLT(10) Substituted by 7515352
7515306
Unavailable
43
SHOCK-SUSP
7041130
Unavailable
44
BUSHING
5430537
$3.99
45
SPACER
5332631
$6.39
46
NUT LOCK(10)
7542302
$3.99
46
NUT LOCK(10)
7542302
$3.99
47
AXLE Substituted by 5020906
5020426
Unavailable
48
SHAFT-PIVOT ARM
5020413
Unavailable
49
SLIDE,RED,(HIFAX) Substituted by 5521321 (Cut to fit)
5521104
$40.46
49
SLIDE,RED,(HIFAX) Substituted by 5521321 (Cut to fit)
5521104
$40.46
50
TORQUE ARM, FRONT Substituted by 1540492-067
1540492
Unavailable
51
TUBE,BLK,F.SPRING Substituted by 5332751-067
5332751
Unavailable
52
NUT-5/16-18 NYLOK-Y
7542324
$1.49
52
NUT-5/16-18 NYLOK-Y
7542324
$1.49
52
NUT-5/16-18 NYLOK-Y
7542324
$1.49
53
WASHER(10)
7555716
$1.59
53
WASHER(10)
7555716
$1.59
54
STRAP, LIMITER
5410397
Unavailable
55
BOLT(10)
7515307
$3.99
55
BOLT(10)
7515307
$3.99
56
SHAFT,MOUNTING
5010149
Unavailable
57
SPRING,SUSPENSION
7041176
Unavailable
58
LIMITER,ROLL.SPRING
5431283
Unavailable
59
TUBE Substituted by 5332844-067
5332844
Unavailable
60
SHAFT, PIVOT ARM
5020410
$8.73
61
RIVET,(50)
7621501
$2.39
62
INSERTS, WHEEL
5430723
$3.99
63
BOLT(10)
7512404
$3.99
64
NUT LOCK(10)
7542403
$3.99
65
BOLT(10)
7512659
$7.99
66
WASHER(10)
7555804
$3.99
67
LOCK WASHER(10)
7553201
$3.99
68
BRACKET,BOGIE WHEEL
5130570
$48.56
69
TUBESPACER,CTR.OUTSIDE Substituted by 5330171-067 (STARLITE)
5330171
Unavailable
70
WHEEL, IDLER Substituted by 1594079-070 (STARLITE)
1594021
Unavailable
71
BOLT(10)
7512329
$3.99
72
RETAINER, SPRING Substituted by 5222369-067
5222369
Unavailable
