STEERING Indy Lite And Star Lite (4918591859009A)

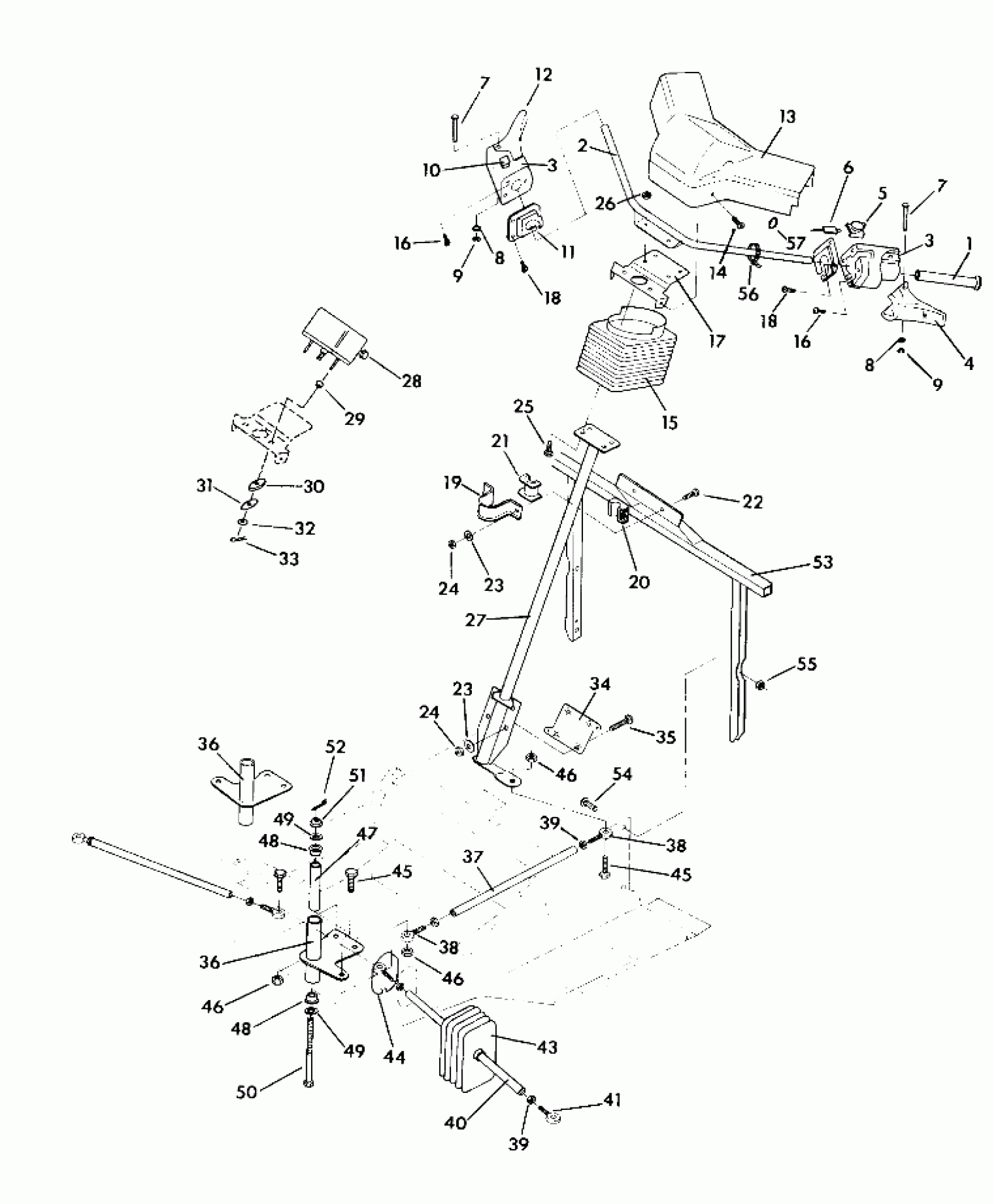

Polaris LITE - 0913033 STEERING Indy Lite And Star Lite (4918591859009A) Diagram
#
1
GRIP,H'BAR,BLACK Substituted by 5432634
5410272-067
$24.27
2
DESC NOT_AVAILABLE
1823148
Unavailable
3
BLOCK,THROTTLE/BRAKE Substituted by 5431592
5431265
$49.99
3
BLOCK,THROTTLE/BRAKE Substituted by 5431592
5431265
$49.99
4
LEVER-BRAKE
5430602
$36.41
5
Switch, Dimmer
4110104
Unavailable
6
Switch, Brake Light
4110105
Unavailable
7
PIN-RETAINING .186X1.780-AL
7661624
$12.79
7
PIN-RETAINING .186X1.780-AL
7661624
$12.79
8
WASHER(10)
7555730
$3.99
8
WASHER(10)
7555730
$3.99
9
RING-RETAINING EXTERNAL
7710401
$3.99
9
RING-RETAINING EXTERNAL
7710401
$3.99
10
SWITCH,AUX.SHUT-OFF
4110106
$94.99
11
BLOCK-ADAPTER
5430604
$13.75
12
LEVER-THROTTLE
5430601
Unavailable
13
COVER,H'BAR W/SPEEDO (W/ Speedometer)
5431232-070
Unavailable
13
COVER,H'BAR(W/O SPEEDO) (Wo/ Speedometer)
5431233-070
Unavailable
14
SCREW,(10)
7512024
$4.79
15
BOOT,STRG.POST
5431234-070
Unavailable
16
SCREW-SEMS(10)
7511848
$3.99
16
SCREW-SEMS(10)
7511848
$3.99
17
BRACKET Substituted by 5222472-067
5222472
Unavailable
18
SCREW(10)
7512465
$3.99
18
SCREW(10)
7512465
$3.99
19
BUSHING,UPPER STRG. Substituted by 5220887-067
5220887
Unavailable
20
BUSHING,STRG.,UPPER Substituted by 5431572
5430966
Unavailable
21
BUSHING,UPPER STRG. Substituted by 5431573
5431138
$8.48
22
BOLT(10)
7515321
$1.49
23
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
23
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
24
NUT-5/16-18 NYLOK-Y
7542324
$1.49
24
NUT-5/16-18 NYLOK-Y
7542324
$1.49
25
BOLT(10)
7512240
$3.99
26
NUT-LOCK(10)
7542122
$1.49
27
DESC NOT_AVAILABLE (Star)
1823147
Unavailable
27
POST, STRG, BLK. (Indy)
1823150-067
Unavailable
28
SPEEDOMETER
3280112
Unavailable
28
CABLE,SPEEDOMETER
3280113
Unavailable
29
SPACER
5410592
Unavailable
30
SPACER,SPEEDO.MTG.
5810442
$10.99
31
PLATE,MTG,(SPEEDO)
5211189
$12.99
32
WASHER, FLAT(10)
7558201
$5.79
33
HAIRPIN, COTTER(10)
7660701
$1.99
34
BRKT, BOLT RETAINER
5222421
$5.52
35
BOLT(10) Substituted by 7512377
7512394
Unavailable
36
FROG, LH STRG. (Indy)
5222402
Unavailable
36
FROG, RH STRG. (Star)
5222403
Unavailable
37
ROD, DRAG LINK
5333005
Unavailable
38
ROD END, LH Substituted by 7060166
7060151
$48.56
38
ROD END, RH Substituted by 7060167
7060152
$48.56
38
ROD END, LH Substituted by 7060166
7060151
$48.56
38
ROD END, RH Substituted by 7060167
7060152
$48.56
39
NUT HEX(10)
7542401
$2.39
39
NUT
7542424
$1.49
39
NUT HEX(10)
7542401
$2.39
39
NUT
7542424
$1.49
40
ROD, TIE Substituted by 5333006-067
5333006
Unavailable
41
ROD END,LH Substituted by 7060164
7060124
$48.56
41
ROD END RH Substituted by 7060165
7060125
$48.56
43
BOOT, TIE ROD
5410576
Unavailable
44
RETAINER, BOOT
5222283
Unavailable
45
BOLT(10)
7512404
$3.99
45
BOLT(10)
7512404
$3.99
46
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
46
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
46
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
47
BUSHING, SPACER
5333009
$11.99
48
BUSHING
5630371
$5.03
48
BUSHING
5630371
$5.03
49
WASHER(10)
7555817
Unavailable
49
WASHER(10)
7555817
Unavailable
50
BOLT(10)
7512572
$13.19
51
NUT, CASTLE(10)
7542523
Unavailable
52
PIN COTTER(10)
7661203
$1.49
53
HOOP, STEERING Substituted by 1011782-067
1011782
Unavailable
54
BOLT(10)
7512298
$3.99
56
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
