NOSEPAN AND CONSOLE Indy Lite and Star Lite (4919311931005A)

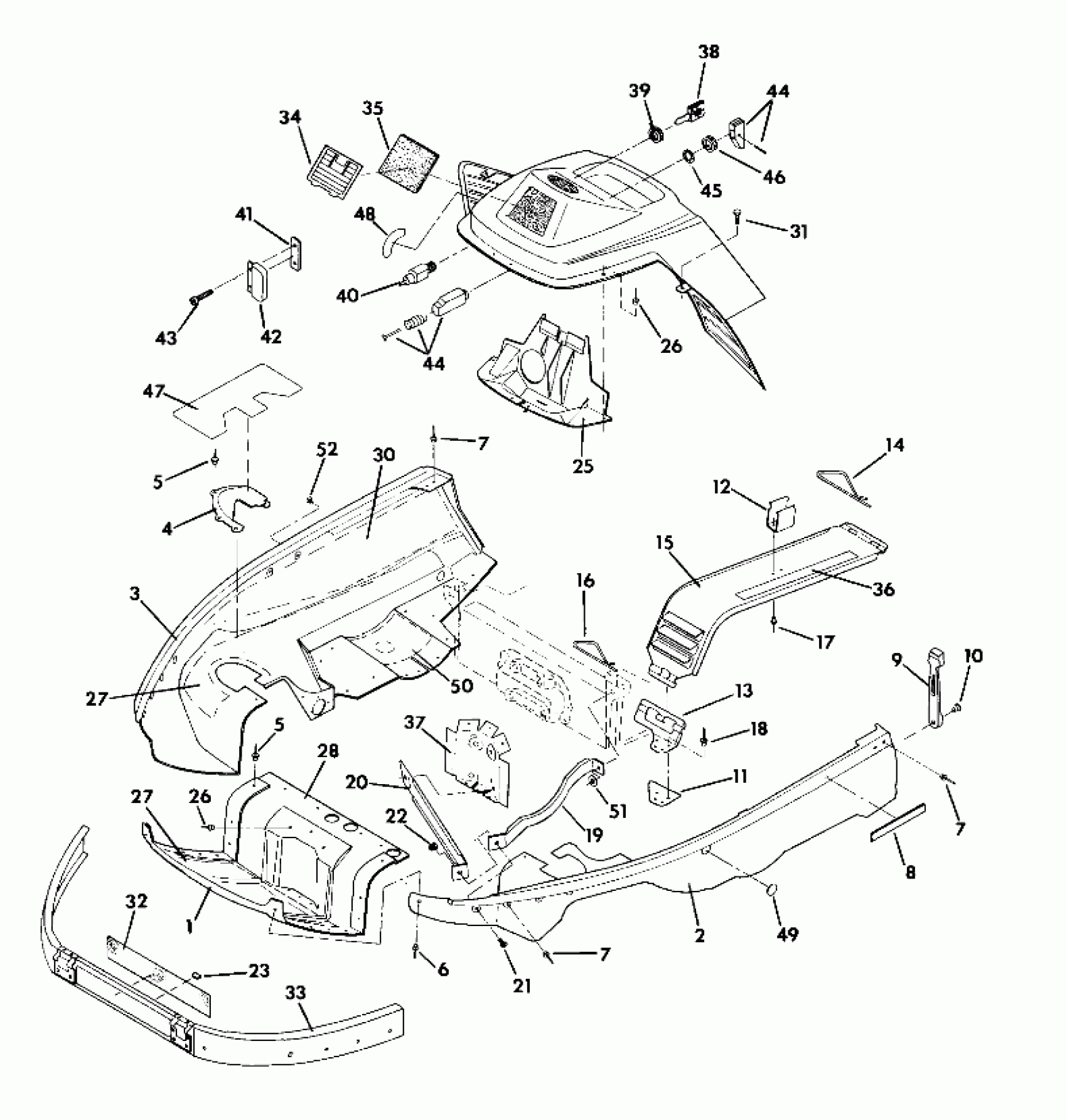

Polaris LITE - 0913033 NOSEPAN AND CONSOLE Indy Lite and Star Lite (4919311931005A) Diagram
#
1
NOSEPAN, CTR.
5431154-070
Unavailable
2
NOSEPAN,LH,BLK.
5431155-070
Unavailable
3
NOSEPAN,RH,BLK.
5431156-070
Unavailable
4
COVER, RH SHOCK
5431253
Unavailable
4
COVER, LH SHOCK
5431252
Unavailable
5
RIVET(50)
7621457
$1.49
5
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
5
RIVET(50)
7621457
$1.49
5
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
6
RIVET, BLIND(50)
7621467
$1.49
7
RIVET(50)
7621472
$1.49
7
RIVET(50)
7621472
$1.49
7
RIVET(50)
7621472
$1.49
8
REFLECTOR AMBER
2670071
Unavailable
9
STRAP, HOOD
5410573
Unavailable
10
RIVET,(50)
7621601
Unavailable
11
PLATE,CLUTCH GUARD Substituted by 5211249-067
5211249
Unavailable
12
CLIP, BELT Substituted by 5222769
5220817
Unavailable
13
SUPPORT,CLUTCH GUARD Substituted by 5222332-067
5222332
Unavailable
14
PIN
5224440
Unavailable
15
GUARD, CLUTCH
5230123
Unavailable
16
PIN, FRONT
7080311
Unavailable
17
RIVET(50)
7621429
$1.49
18
RIVET(50)
7621449
$3.19
19
BRKT,RH PAN BRACE Substituted by 5222340-067
5222340
Unavailable
19
BRKT,LH PAN BRACE Substituted by 5222339-067
5222339
Unavailable
20
BRKT,LH BUMPER BRACE Substituted by 5222345-067
5222345
Unavailable
20
BRKT,RH BUMPER BRACE Substituted by 5222346-067
5222346
Unavailable
21
BOLT(10)
7512297
$5.59
22
NUT(10)
7542124
Unavailable
23
U-CLIP,(10)
7670070
Unavailable
25
CONSOLE, INNER Substituted by 5431214-070 (Indy Lite)
5431214
Unavailable
26
CLIP, DART (Star lite)
7670067
$3.99
26
CLIP, DART (Star lite)
7670067
$3.99
27
Tape, Foil
5810475
Unavailable
27
Tape, Foil
5810475
Unavailable
28
TAPE, FOIL
5810476
Unavailable
30
TAPE, FOIL
5810478
Unavailable
31
SCREW(10)
7512252
Unavailable
32
SCREEN Substituted by 5211267-067
5211267
Unavailable
33
HINGE Substituted by 2635010-067
2635010
Unavailable
34
LOUVER, INTAKE
5431211-070
Unavailable
35
FOAM, INTAKE (Indy)
5810458
Unavailable
36
DECAL,ENG/CLUTCH [No Longer Available]
7072871
Unavailable
37
BRKT, SUPPORT Substituted by 5222356-067
5222356
$38.19
38
KEY, IGNITION
5410378
$13.75
39
NUT, IGN.SWITCH(10)
7543101
Unavailable
40
SWITCH IGNITION
4110038
$44.51
41
HEAT SINK
5210650
Unavailable
42
REGULATOR - MINKS
4060071
Unavailable
43
SCR-#10-24X3/4,PN/TR RD-TORX-Y
7512018
$3.19
44
CABLE, CHOKE(LITE) Substituted by 7080661 (Indy)
7080405
Unavailable
44
CABLE, CHOKE(STAR) (Star)
7080411
Unavailable
44
CABLE, CHOKE(LITE) Substituted by 7080661 (Indy)
7080405
Unavailable
44
CABLE, CHOKE(STAR) (Star)
7080411
Unavailable
45
WASHER-LOCK(10)
7571610
$3.99
46
Nut
7080229
$19.99
47
TAPE, FOIL,(PAN)
5810482
Unavailable
48
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
49
PLUG,CATCH HOLE
5410582
$7.27
50
TAPE,FOIL,PAN
5810499
Unavailable
51
WASHER(10)
7555806
$1.49
52
RIVET,(50)
7621336
$1.59
