CRANKCASE AND CYLINDER Star Lite (4919311931023A)

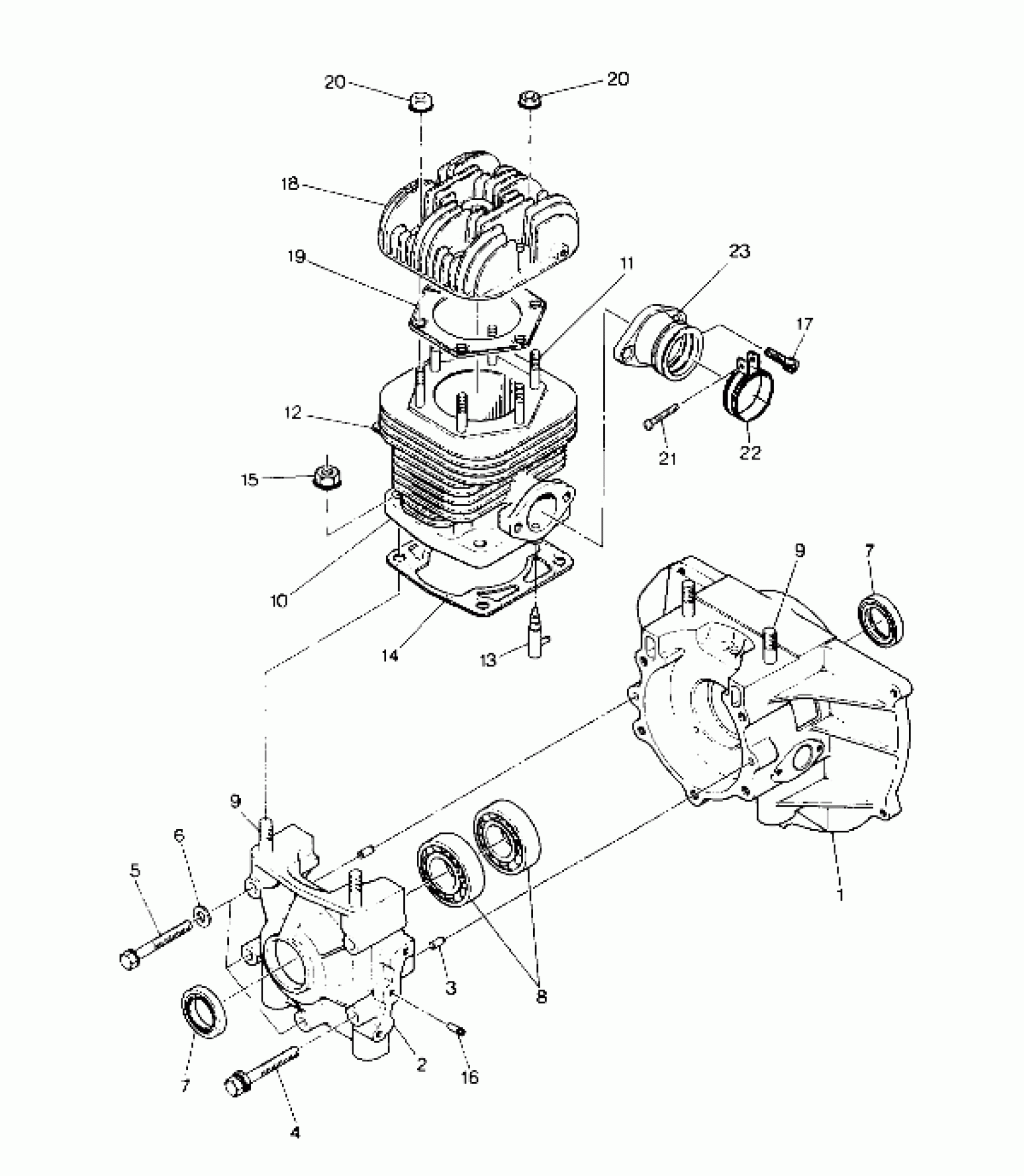

Polaris LITE - 0913033 CRANKCASE AND CYLINDER Star Lite (4919311931023A) Diagram
#
Description
Price
-
CRANKCASE ASM. (Incl. 1-9)
3083797
$263.89
1
Crankcase - Recoil Side
-------
Unavailable
2
Crankcase - PTO Side
-------
Unavailable
3
PIN, DOWEL Substituted by 3086838
3080103
$7.14
4
BOLT AND WASHER ASSY.
3082096
$1.49
5
BOLT&WASHER ASM.
3083509
Unavailable
6
WASHER
3082505
Unavailable
7
SEAL,OIL
3082162
$39.99
7
SEAL,OIL
3082162
$39.99
8
BEARING,BALL
3083805
Unavailable
9
STUD Substituted by 3085713
3080746
Unavailable
9
STUD Substituted by 3085713
3080746
Unavailable
10
CYLINDER Substituted by 3083411 (Incl. 11-13)
3084290
Unavailable
11
Stud
3080283
$12.94
12
STUD (10)
3080016
$5.75
13
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
14
GASKET,CYLINDER
3080301
Unavailable
15
NUT-FLANGE(10)
3082911
$1.99
16
PIPE, (PULSE) Substituted by 3083798
3083567
Unavailable
17
Bolt, Allen
3081330
$3.99
18
HEAD CYLINDER
3081219
Unavailable
19
GASKET HEAD Substituted by 3084019
3081520
Unavailable
20
NUT-FLANGE(10)
3082910
$2.39
20
NUT-FLANGE(10)
3082910
$2.39
21
SCREW,(10)
3081497
$2.39
22
BAND-CARB MTG. (Incl. 21)
3082257
Unavailable
23
ADAPTER
3084291
Unavailable
