CHASSIS AND SEAT Indy Lite and Star Lite (4919311931001A)

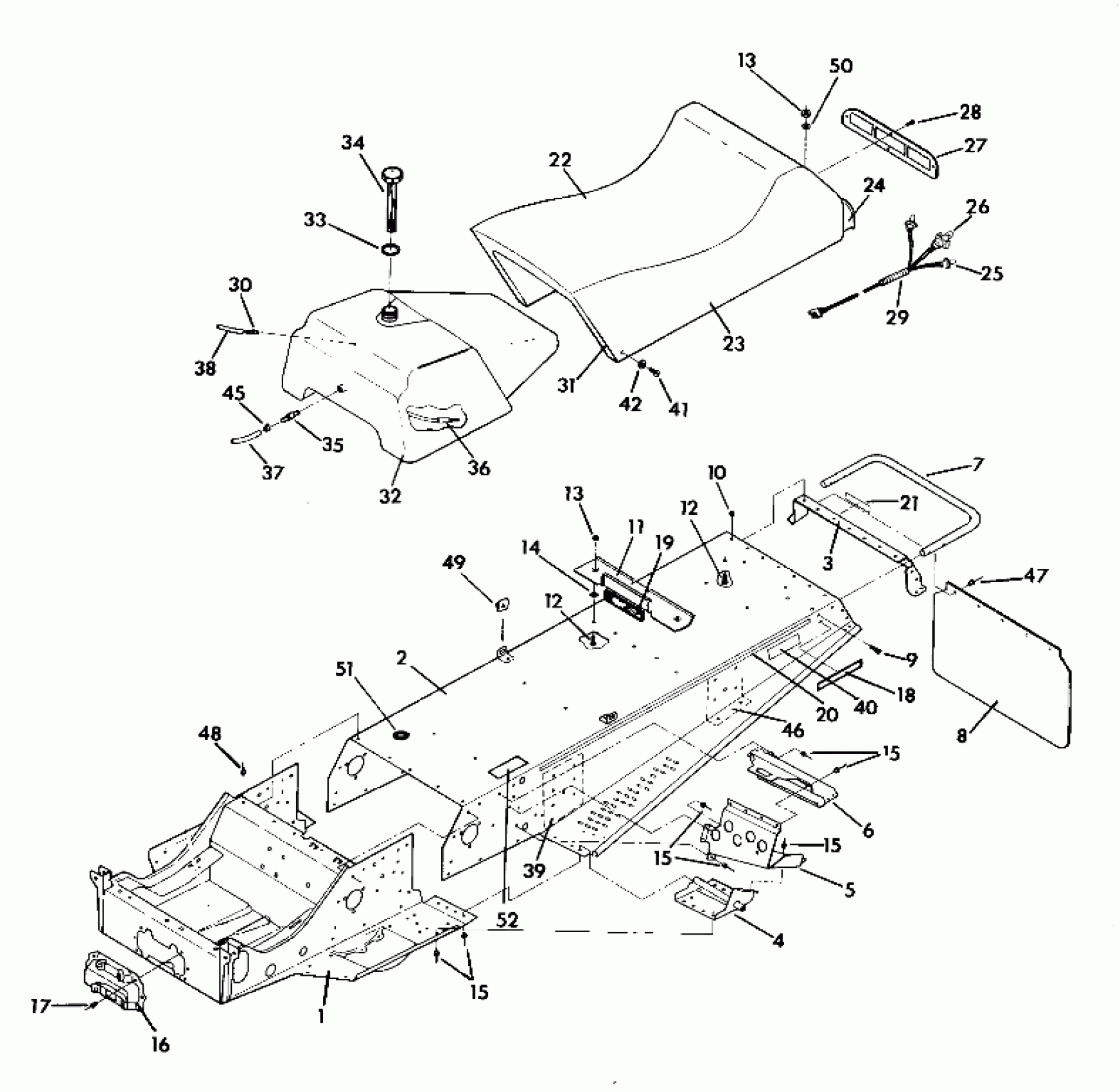

Polaris LITE - 0913033 CHASSIS AND SEAT Indy Lite and Star Lite (4919311931001A) Diagram
#
1
BULKHEAD,'LITE INDY'
1011784-067
Unavailable
2
TUNNEL ASM.
1011788
Unavailable
3
PANEL,REAR CLOSE-OFF
5222313
Unavailable
4
SUPPORT,LH TRLG.ARM Substituted by 1011792-067
1011792
Unavailable
4
SUPPORT,RH TRLG.ARM Substituted by 1011793-067
1011793
Unavailable
5
FOOTREST,RH LOWER Substituted by 5220643-067
5220643
Unavailable
5
FOOTREST,LH LOWER Substituted by 5220642-067
5220642
Unavailable
6
FOOTREST,LH UPPER
5222308
Unavailable
6
FOOTREST,RH UPPER Substituted by 1011826
5222309
Unavailable
7
BUMPER, REAR Substituted by 5224429-067
5224429
Unavailable
8
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
9
SCREW(10)
7512252
Unavailable
10
RIVET Substituted by 7661829
7661828
Unavailable
11
STRAP,GAS TANK Substituted by 5222330-067
5221722
Unavailable
12
BOLT(10)
7512193
$2.39
12
BOLT(10)
7512193
$2.39
13
NUT-LOCK(10)
7542122
$1.49
13
NUT-LOCK(10)
7542122
$1.49
14
SPEED NUT(10)
7670021
$6.99
15
RIVET Substituted by 7661812
7661818
Unavailable
15
RIVET Substituted by 7661812
7661818
Unavailable
15
RIVET Substituted by 7661812
7661818
Unavailable
15
RIVET Substituted by 7661812
7661818
Unavailable
16
MOUNT,RADIUS ROD Substituted by 5630924
5130759
Unavailable
17
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
18
REFLECTOR RED
2670070
$9.91
19
CUSHION,TANK H.D.
5420126
Unavailable
20
STRIPE,TUNNEL(STARLITE) [No Longer Available] (Star)
7072916
Unavailable
20
STRIPE,TUNNEL(LITE) [No Longer Available] (Indy)
7072923
Unavailable
21
DECAL,TRACK SEAT(BLK.) [No Longer Available]
7073038
Unavailable
22
SEAT ASM,(LITE) Substituted by 2681472
2681476
Unavailable
23
COVER,SEAT,(LITE) Substituted by 2681473
2681477
Unavailable
24
HOUSING,TAILLIGHT
5430425
Unavailable
25
BULB TAILLIGHT(10)
4030015
$4.03
26
BULB, BRAKELIGHT
4030019
Unavailable
27
LENS,TAILLIGHT
5430423
Unavailable
28
SCREW(10)
7511840
Unavailable
29
HARNESS-TAILLIGHT Substituted by 2460399
2460226
Unavailable
30
VENT FITTING,TANK Substituted by 5430579
5430669
Unavailable
31
BUN,SEAT(INDY LITE) [No Longer Available]
5431213
Unavailable
32
TANK, FUEL Substituted by 2511188
5431210
Unavailable
33
GASKET-GAS CAP Substituted by 5810513
5810142
Unavailable
34
CAP, GAS Substituted by 2511190
2511193
Unavailable
35
FITTING - OUTLET(10)
7052023
$24.99
36
FUELPICKUP,W/STRAINER
7052037
$12.94
37
GAS LINE, (FT.) [Cannot Purchase as Assembly]
8450003
Unavailable
38
VENT LINE,1/8,BULK Substituted by 8360009-600
8360009
Unavailable
39
BRKT. Substituted by 5220542-067
5220542
Unavailable
40
DECAL,'340 LITE' [No Longer Available] (Indy Lite)
7072942
Unavailable
41
BOLT(10)
7512297
$5.59
42
WASHER(10)
7555798
$1.49
45
RING, COMPRESSION(10)
7080402
$1.60
46
BRKT,LH-R.SUSP. Substituted by 1011779-067
1011779
Unavailable
46
BRKT,RH-R.SUSP. Substituted by 1011780-067
1011780
Unavailable
47
POP RIVET(50)
7621418
$1.49
48
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
49
NUT, RETAINER(10) Substituted by 7670060
7670059
$3.85
50
WASHER,WROUGHT(10)
7558302
$1.59
51
GROMMET RUBBER
5410021
Unavailable
52
Pad, Air Box
5810502
Unavailable
