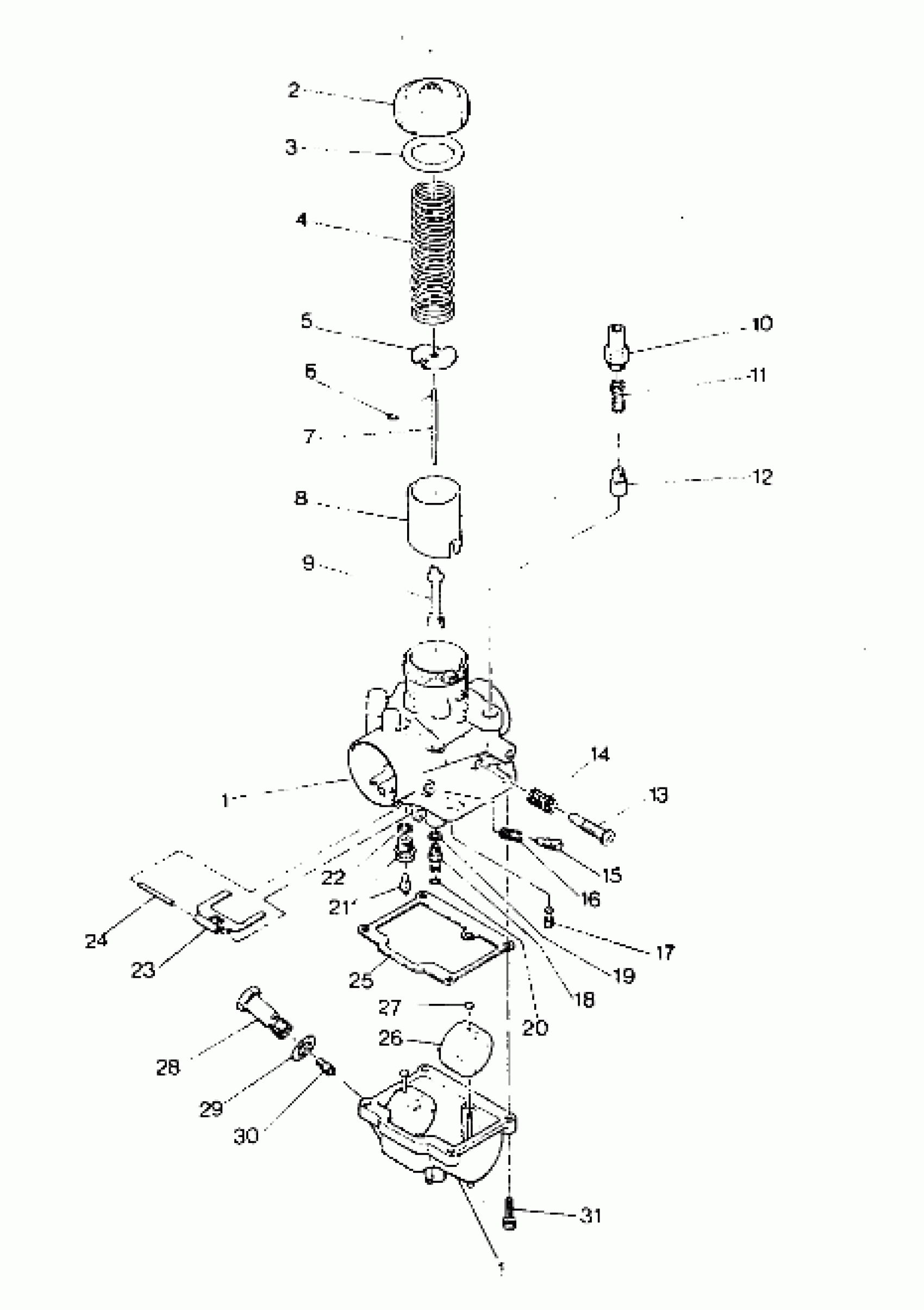

Polaris LITE - 0913033 CARBURETOR Star Lite (4919311931037A) Diagram
#
Description
Price
1
CARBURETOR (Incl., 2-31)
3130455
Unavailable
1
CARBURETOR (Incl., 2-31)
3130455
Unavailable
2
TOP,MIX CHAMBER (Incl., 3)
3130060
Unavailable
3
GASKET
-------
Unavailable
4
SPRING, THROTTLE
3130344
Unavailable
5
PLATE,THROTTLE
3130002
$20.22
6
E RING(10) Substituted by 3130508
3130003
Unavailable
7
JET NEEDLE
3130154
Unavailable
8
VALVE, THROTTLE (3.0)
3130323
Unavailable
9
JET NEEDLE (O-8)
3130035
Unavailable
10
Cap, Plunger
3130359
$14.56
11
SPRING,PLUNGER
3130006
$8.89
12
PLUNGER ASM. Substituted by 3130328
3130440
Unavailable
13
Screw, Throttle Stop
3130324
$19.84
14
SPRING,THROTTLE ADJ.
3130010
$8.89
15
SCREW,AIR
3130011
$19.99
16
SPRING,AIR ADJUST
3130012
$8.89
17
JET,PILOT,#60(10) (No 60)
3130071
Unavailable
18
NEEDLE JET SETTER
3130283
Unavailable
19
WASHER (10)
3130014
$1.59
20
O RING
3130015
Unavailable
21
VALVE,NEEDLE Substituted by 3131146 (1.5)
3130016
$48.56
22
PACKING(10)
3130017
$4.03
23
ARM,FLOAT
3130018
$24.27
24
PIN,FLOAT
3130043
Unavailable
25
GASKET Substituted by 3130020
3130438
Unavailable
26
CAP Substituted by 3130237
3130431
Unavailable
27
CAP Substituted by 3130237
3130431
Unavailable
28
BOLT, BANJO
3130210
Unavailable
29
WASHER Substituted by 3130024
3130185
Unavailable
30
JET,MAIN RD.HD#160 [No Longer Available] (No. 160)
3130094
Unavailable
31
SCREW & WASHER(10)
3130025
$3.19
