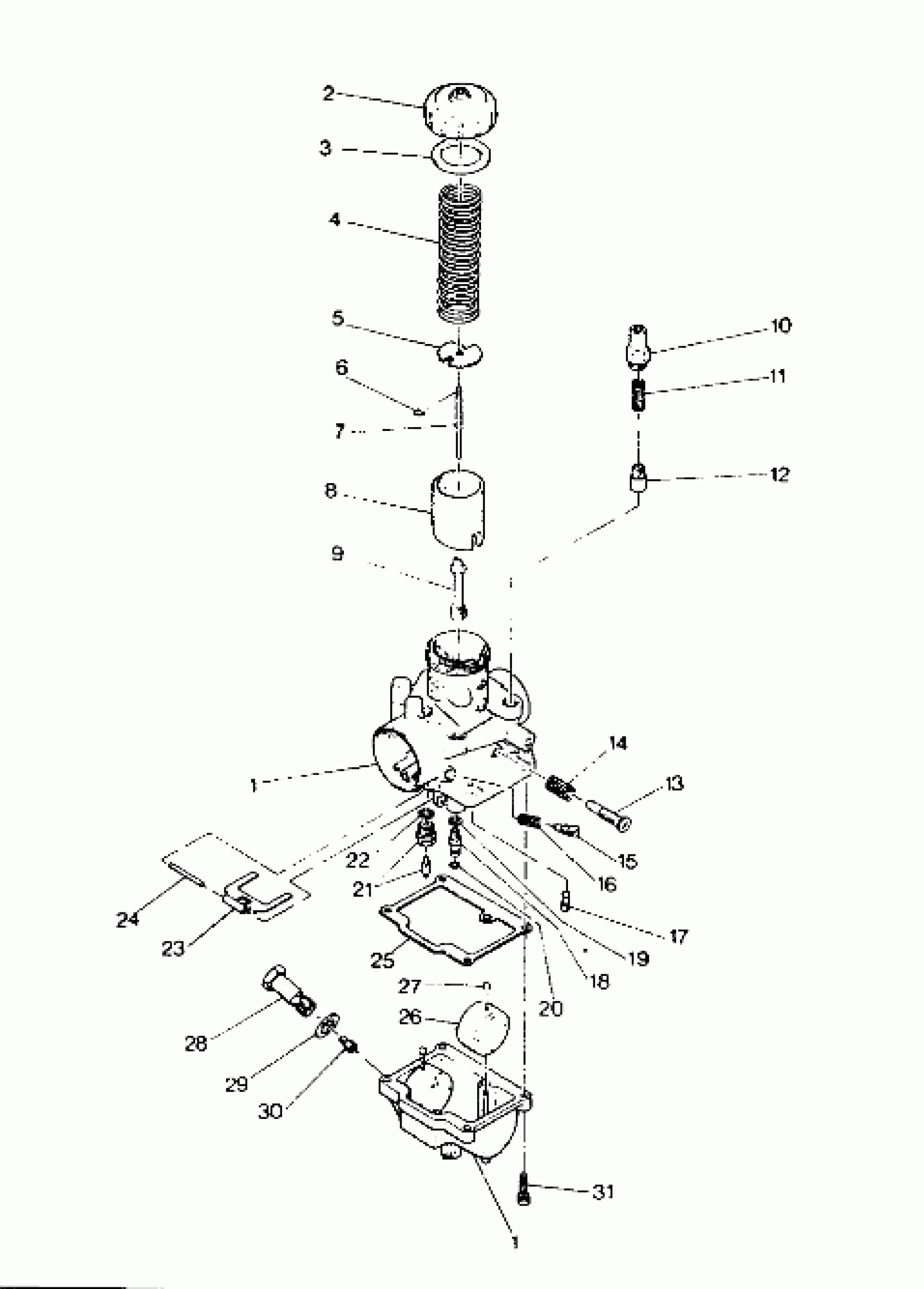

Polaris LITE - 0913033 CARBURETOR Indy Lite (4919311931038A) Diagram
#
Description
Price
1
CARBURETOR (Incl., 2-31)
3130349
Unavailable
1
CARBURETOR (Incl., 2-31)
3130349
Unavailable
2
TOP,MIX CHAMBER (Incl., 3)
3130060
Unavailable
3
GASKET
-------
Unavailable
4
SPRING,THROTTLE
3130354
$28.32
5
PLATE,THROTTLE
3130002
$20.22
6
E RING,(10) Substituted by 3130508
3130230
Unavailable
7
JET NEEDLE Substituted by 3130155
3130356
$24.27
8
VALVE, THROTTLE (3.0)
3130323
Unavailable
9
JET NEEDLE (O-8)
3130035
Unavailable
10
Cap, Plunger
3130359
$14.56
11
PLUNGER ASM. Substituted by 3130328
3130440
Unavailable
12
PLUNGER ASM, STARTER
3130328
$32.37
13
Screw, Throttle Stop
3130324
$19.84
14
SPRING,THROTTLE ADJ.
3130010
$8.89
15
SCREW,AIR
3130011
$19.99
16
SPRING,AIR ADJUST
3130012
$8.89
17
JET,PILOT,#35(10)
3130066
$8.89
18
SETTER,JET NEEDLE Substituted by 3130283
3130167
Unavailable
19
WASHER (10)
3130014
$1.59
20
O RING Substituted by 3130015
3130259
Unavailable
21
VALVE,NEEDLE Substituted by 3131146 (1.5)
3130016
$48.56
22
PACKING(10)
3130017
$4.03
23
ARM,FLOAT
3130018
$24.27
24
PIN,FLOAT
3130043
Unavailable
25
GASKET Substituted by 3130020
3130438
Unavailable
26
FLOAT ASM
3130021
$40.46
27
CAP Substituted by 3130237
3130431
Unavailable
28
BOLT, BANJO
3130210
Unavailable
29
WASHER Substituted by 3130024
3130185
Unavailable
30
JET,MAIN RD.HD#160 [No Longer Available]
3130094
Unavailable
31
SCREW & WASHER(10)
3130025
$3.19
