Description

Price

1

LAMP ASSY,TAIL

23024-067

Unavailable

2

SCREW-PAN-CROS

220R0460

Unavailable

3

LENS,TAIL LAMP

23026-034

$77.14

4

GASKET,TAIL LAMP LENS

23028-021

$12.37

5

BULB,12V 27/8W

92069-059

$8.12

6

BODY-COMP-TAIL LAMP

23027-041

$128.08

7

BKT,LICENSE PLATE

23036-046

Unavailable

8

DAMPER

23066-023

$17.63

9

DAMPER

23066-020

$14.96

10

COLLAR,6.8X10X8.5

92027-129

$5.00

11

WASHER,6.5X20X1.6

92022-125

$1.40

12

BOLT 6X22

112B0622

$3.48

13

DAMPER,TAIL LAMP

35039-004

$18.41

14

DAMPER,FENDER

92075-121

$4.56

15

COLLAR,6.8X10X14.5

92027-156

$5.00

16

WASHER SPRING 6MM

461F0600

$0.69

17

BOLT-UPSET

112G0625

$3.62

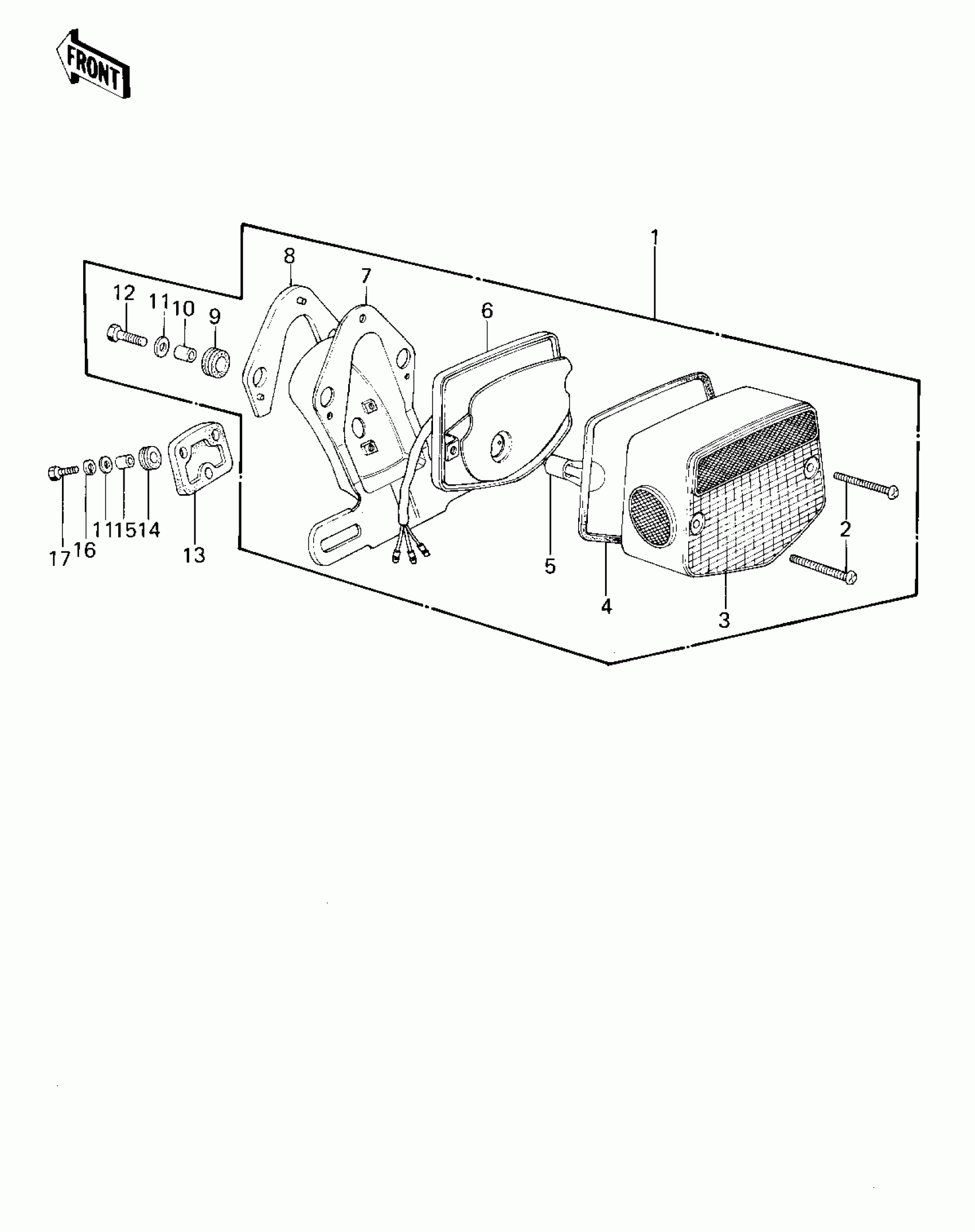

Kawasaki KZ1000 TAILLIGHT ('77-'78 A1/A2/A2A) Diagram

LAMP ASSY,TAIL

SCREW-PAN-CROS

LENS,TAIL LAMP

GASKET,TAIL LAMP LENS

BULB,12V 27/8W

BODY-COMP-TAIL LAMP

BKT,LICENSE PLATE

DAMPER

DAMPER

COLLAR,6.8X10X8.5

WASHER,6.5X20X1.6

BOLT 6X22

DAMPER,TAIL LAMP

DAMPER,FENDER

COLLAR,6.8X10X14.5

WASHER SPRING 6MM

BOLT-UPSET
