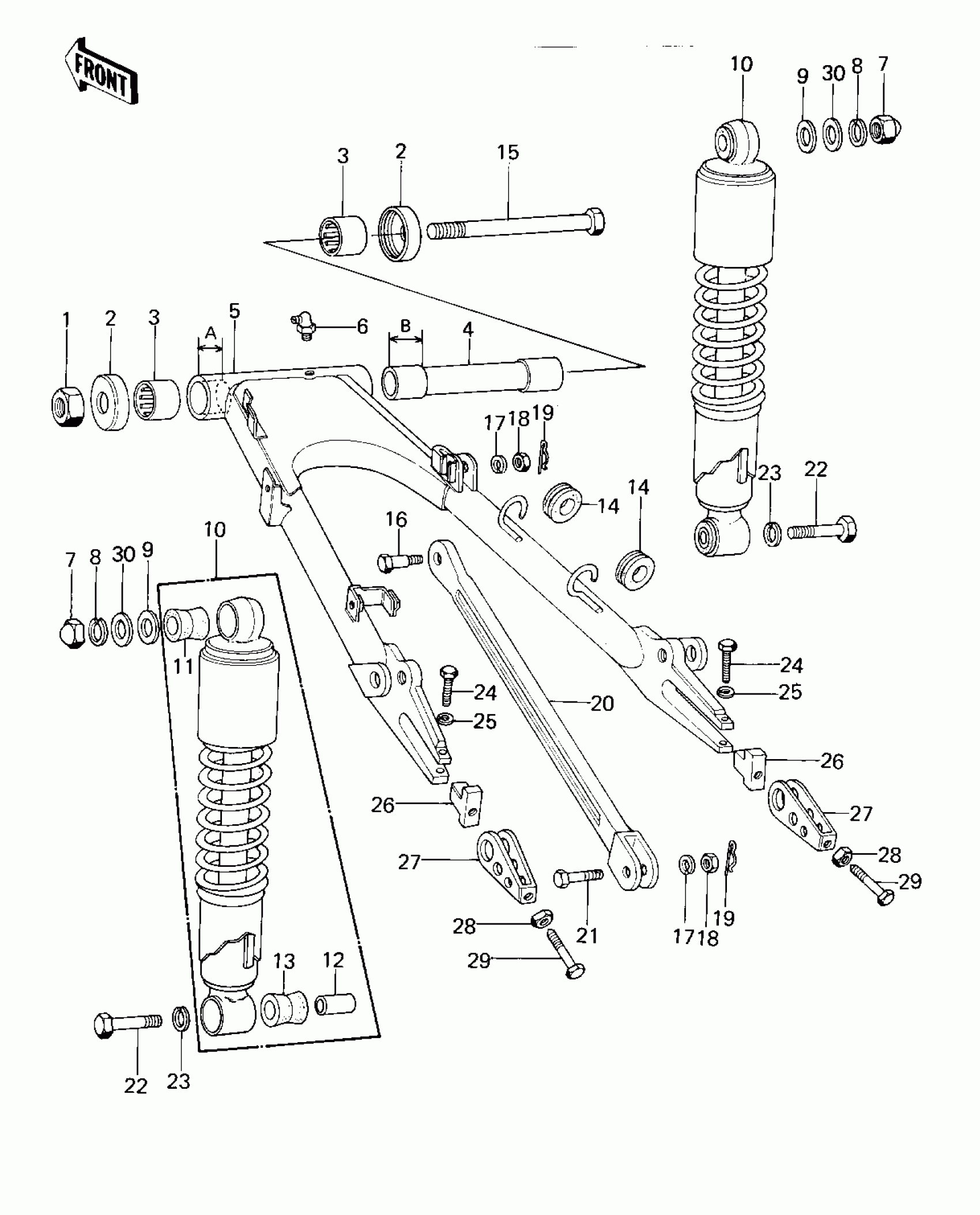

Kawasaki KZ1000 SWING ARM/SHOCK ABSORBERS ('77-'78 A1/A2 Diagram
#
Description
Price
1
NUT-SELF LOCKING
92019-012
$25.70
2
CAP,SWING ARM
33035-009
Unavailable
3
BEARING-NEEDLE,HK2216
92046-1115
$20.02
3
BEARING-NEEDLE,22BTM2816
92046-061
$20.02
4
SLEEVE,SWING ARM
33034-025
$97.14
4
SLEEVE,SWING ARM
42036-1011
Unavailable
5
SWING ARM
33001-091
$288.03
5
ARM,SWING
33001-1014
$354.18
6
GREASE NIPPLE
92005-002
Unavailable
7
NUT,CAP,12MM
92020-014
$9.45
8
WASHER-SPRING,12MM
461F1200
$0.96
9
WASHER-PLAIN-SMALL,12MM
410B1200
$0.70
10
SHOCK ABSBR RR
45014-107
$884.48
11
BUSHING,SHCK ABS RUB
45017-018
Unavailable
12
COLLAR,SHOCKABSORBER
45016-003
$15.92
13
BUSHING,SHCK ABSORBER
45017-011
$24.97
14
GROMMET,HOSE CLAMP
43064-007
$5.52
15
SHAFT-SWING ARM
33032-036
$64.39
16
BOLT,HEX HEAD,10X39
92003-218
Unavailable
17
WASHER SPRING 10MM
461F1000
$0.67
18
NUT-HEX-FINE,10MM
314B1000
$0.67
19
PIN-SNAP,8MM
554A0800
$1.26
21
BOLT,10X47
92001-1145
Unavailable
22
BOLT HEX HEAD 10X35
113N1035
$9.14
23
WASHER SPRING 10MM
461F1000
$0.67
24*
BOLT
92001-1578
$8.19
25*
WASHER SPRING 8MM
461F0800
$0.40
26*
STOPPER,CHAIN ADJUSTER
33044-001
$40.02
27
ADJUSTER-CHAIN
33040-066
$30.91
28
NUT-HEX-FINE,10MM
315B1000
$0.58
29
BOLT,10X50
92001-143
$19.74
30
WASHER,PLAIN,12 X 22
92022-1057
Unavailable
