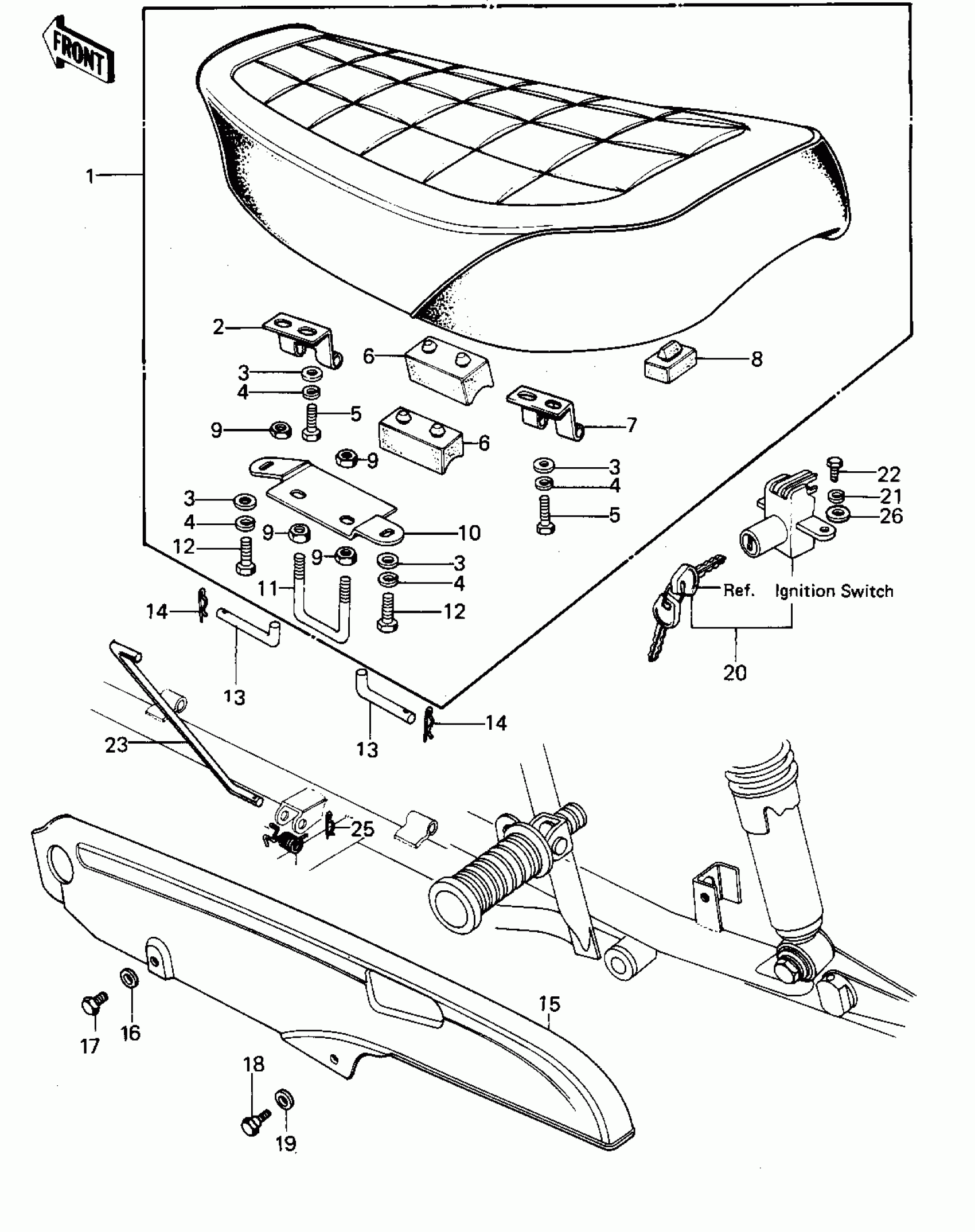

Kawasaki KZ1000 SEAT/CHAIN COVER ('77-'78 A1/A2/A2A) Diagram
#
Description
Price
1
SEAT-ASSY,DUAL
53001-119
$452.33
1
SEAT-ASSY,DUAL
53001-1009
$458.38
2
HINGE,REAR
53009-030
Unavailable
3
WASHER PLAIN 6MM
411B0600
$2.84
4
WASHER SPRING 6MM
461F0600
$0.69
5
BOLT-UPSET,6X16
112G0616
$1.10
6
DAMPER RUBBER,SEAT
92075-139
$11.46
7
HINGE,REAR
53009-032
Unavailable
7
SEAT DUAL
53001-034
$93.04
8
DAMPER
92075-099
$5.52
9
NUT 6MM
311B0600
$0.93
10
BRACKET,SEAT CATCH
53058-003
Unavailable
11
HOOK,SEAT
53056-002
$16.66
12
BOLT-UPSET 6X14
112B0614
Unavailable
13
PIN,DUAL SEAT PIVOT
53011-008
Unavailable
14
COTTER PIN
92041-003
$5.72
15
CASE-CHAIN
36014-061
$234.03
16
WASHER,6.5X20X1.6
92022-125
$1.40
17
BOLT-UPSET
112G0618
$1.01
18
BOLT,HEAX HEAD,6X14
92001-115
$9.81
19
WASHER,8.5X20X1.6
92022-1561
$4.31
20
LOCK,SEAT
27030-005
$146.92
21
WASHER SPRING 6MM
461F0600
$0.69
22
BOLT-UPSET 6X14
112B0614
Unavailable
23
HOOK SEAT
53054-001
$15.38
24
SPRING,SEAT HOOK
53055-001
Unavailable
24
SPRING,SEAT HOOK
92081-1053
$15.20
25
COTTER PIN
92041-003
$5.72
26
WASHER PLAIN 6MM
411B0600
$2.84
