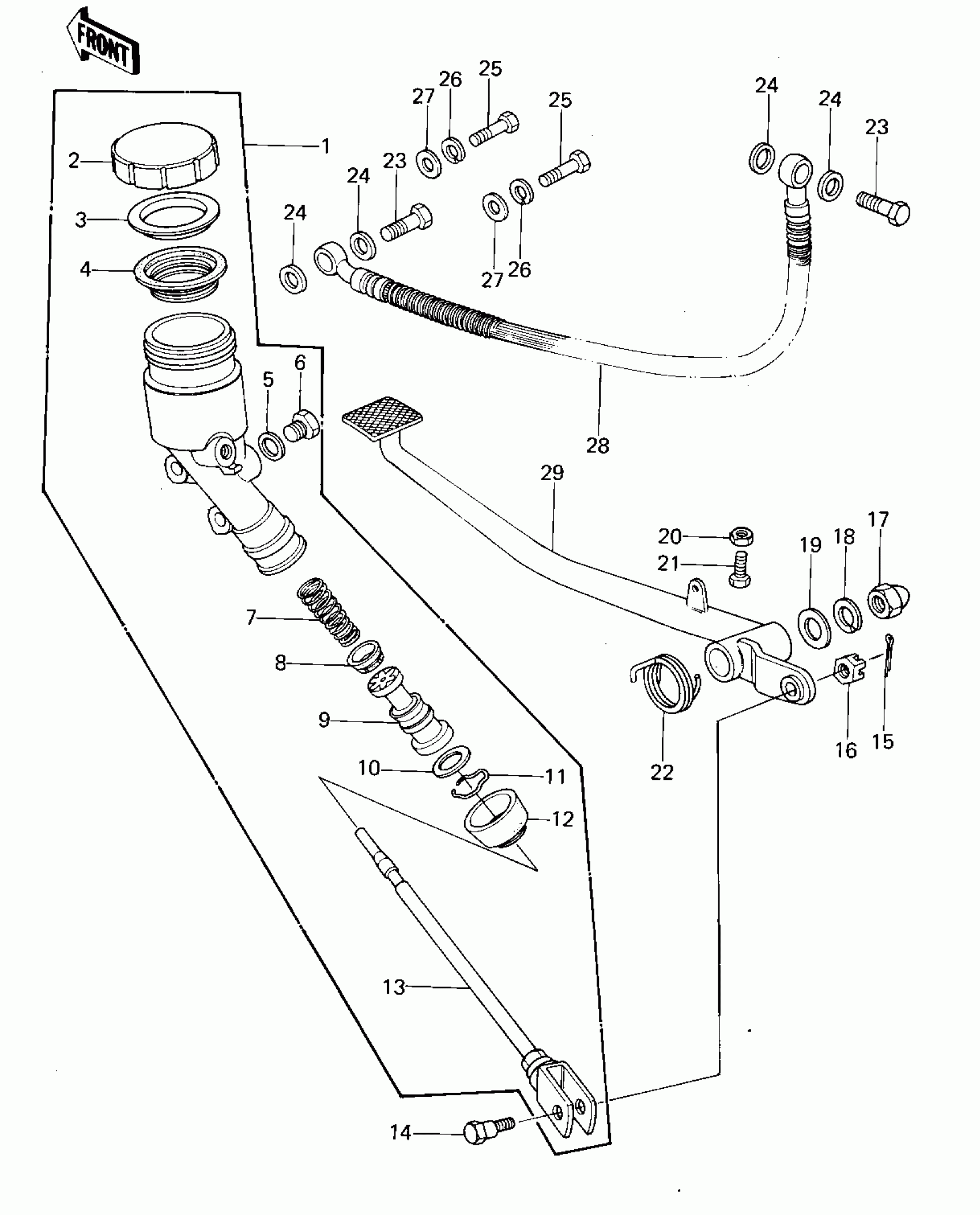

Kawasaki KZ1000 REAR MASTER CYLINDER/BRAKE PEDAL ('77-'7 Diagram

#

Description
Price

1

CYLINDER ASSY,REAR

43015-033

Unavailable

2

CAP,OIL CUP

43026-004

Unavailable

3

PLATE-MASTER CYLINDE

43027-001

Unavailable

4

DIAPHRAGM

43028-003

Unavailable

5

'O'RING

43079-002

Unavailable

6

BOLT

43070-003

Unavailable

7

SPRING ASSY, RETURN

43018-002

$39.46

8

CUP, PRIMARY

43019-002

$25.99

9

PISTON ASSY

43072-004

$96.81

10

STOPPER,PISTON

43022-002

$10.26

11

RING,ROD STOPPER

43058-004

$7.64

12

DUST COVER

43024-003

$25.46

13

ROD,BRAKE

43010-021

Unavailable

14

BOLT

92003-198

Unavailable

15

PIN-COTTER,2.0X20

550D2020

$0.96

16

NUT CASTLE

321B0800

$4.87

17

NUT,CAP AND LOCK,8MM

92019-013

$14.88

18

WASHER SPRING 8MM

461F0800

$0.40

19

WASHER,8.5X20X1.6

92022-1561

$4.31

20

NUT 6MM

311B0600

$0.93

21

BOLT-UPSET,6X20

112G0620

$2.12

22

SPRING,BRAKE PEDAL

43005-037

$18.10

23

BOLT,OIL,L=23

92002-1888

$5.48

24

WASHER,10.5X15X1.5

43067-001

$2.15

25

BOLT,10X45

92001-1182

$10.86

26

WASHER SPRING 8MM

461F0800

$0.40

27

WASHER PLAIN 8MM

410B0800

$0.93

28

HOSE,REAR MASTER CYL

43059-031

Unavailable

29

PEDAL,BRAKE

43001-074

$61.80
