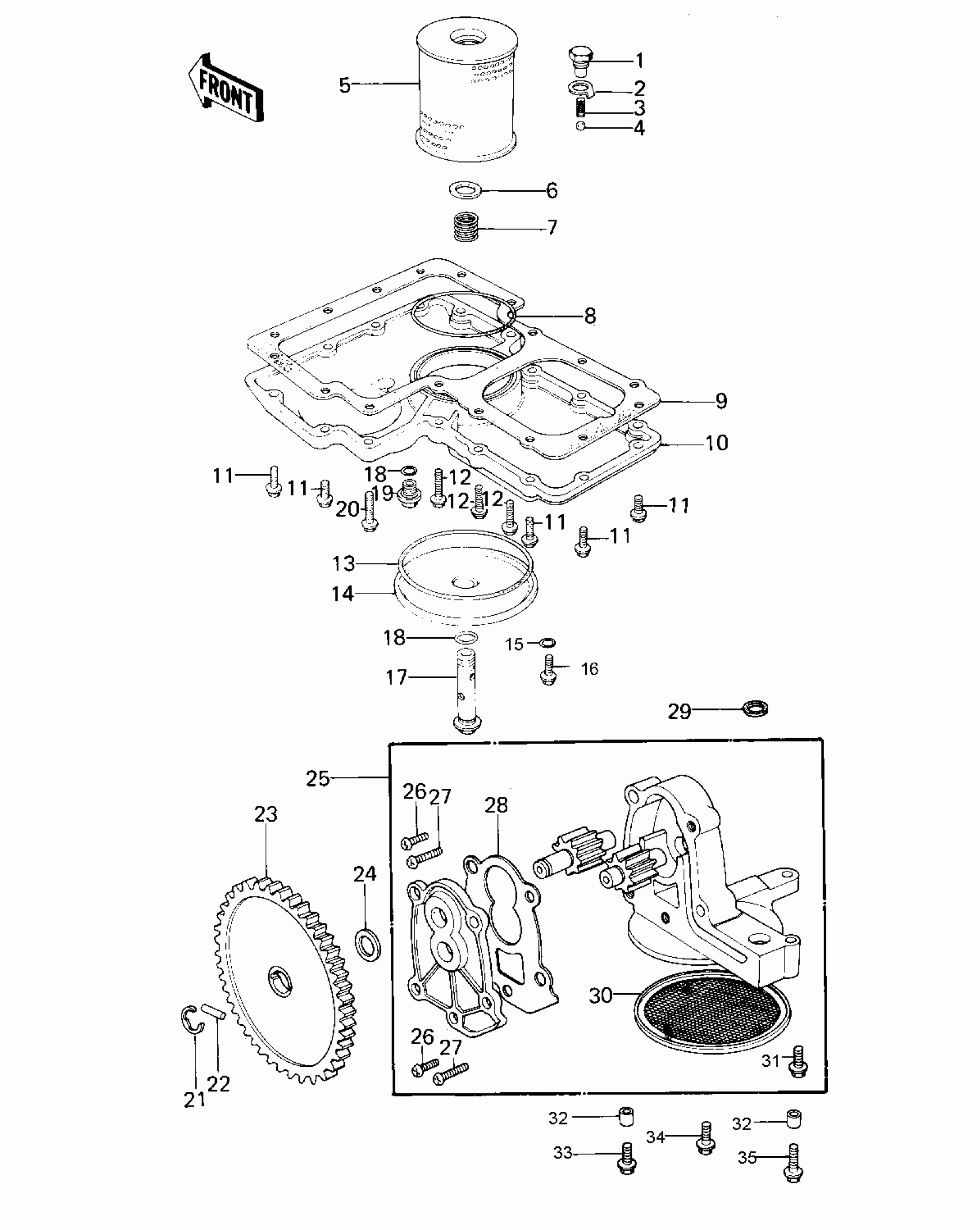

Kawasaki KZ1000 OIL PUMP/OIL FILTER/OIL PAN ('77-'78 A1/ Diagram
#
Description
Price
1
BOLT
92003-095
Unavailable
2
WASHER,LOCK
92024-048
Unavailable
3
SPRING
92081-109
$11.29
4
BALL-STEEL,3/8"
600A1200
$1.56
5
ELEMENT-OIL FILTER
16099-002
$16.20
6
WASHER,20.5X30X1
92022-1012
$4.34
6
WASHER,20.5X30X1
92022-1012
$4.34
7
SPRING,OIL FILTER
92081-1018
$4.65
7
SPRING,OIL FILTER
92081-1018
$4.65
8
RING-O,91.6X3.4
92055-052
$9.89
9
GASKET,OIL PAN
16112-002
$49.19
10
PAN-OIL
16110-003
$265.23
11
BOLT,FLANGED,6X25
92003-178
$1.20
12
BOLT, HEX HEAD, 6X34
92003-159
Unavailable
13
"0" RING,105MM
671B25105
$31.93
14
COVER,OIL FILTER
16146-001
Unavailable
15
O RING,8MM
670B1508
$1.29
16
PLUG,OIL DRAIN
92066-024
Unavailable
17
BOLT,OIL FILTER
92001-1074
$83.10
17
BOLT,OIL FILTER
92001-1074
$83.10
18
O RING,22MM
670B2022
$4.69
19
PLUG,OIL DRAIN
92066-026
$54.58
20
BOLT,FLANGED,6X48
92003-179
$1.03
21
CIRCLIP,7MM
482K7000
$3.81
22
PIN,DOWEL,3X14
551A0314
$0.73
23
GEAR,OIL PUMP 49T
16085-019
$102.31
24
WASHER,LOCK,16MM
92026-080
$4.69
25
PUMP-ASSY-OIL
16082-059
$637.41
26
SCREW PAN HEAD 6X18
220B0618
$3.67
27
SCREW PAN HEAD 6X28
220B0628
$3.41
28
GASKET,OIL PUMP
11009-1029
Unavailable
28
GASKET,OIL PUMP
11009-1029
Unavailable
29
RING-O,OD=18
92055-048
$4.80
30
FILTER,OIL PUMP
16111-004
$44.36
31
SCREW PAN HEAD 5X8
220B0508A
$0.47
32
IN,DOWEL,8X10
92042-038 P
Unavailable
33
BOLT,HEX HEAD,6X35
92001-164
$6.60
34
OLT,FLANGED,6X22
92001-163 B
Unavailable
35
BOLT,FLANGED,6X45
92001-165
$5.24
