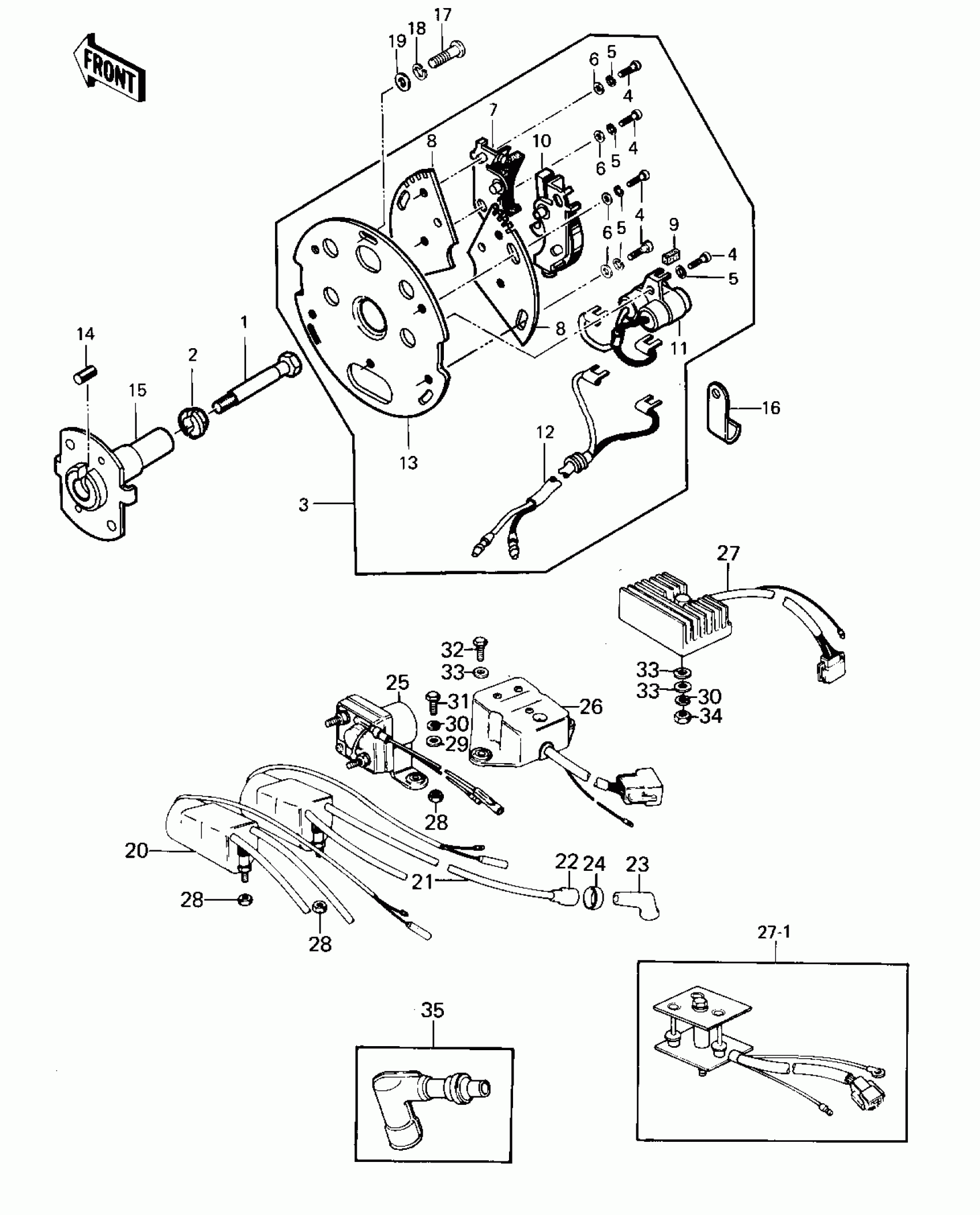

Kawasaki KZ1000 IGNITION/REGULATOR/RECTIFIER ('77-'78 A1 Diagram
#
Description
Price
1
BOLT,SPARK ADVANCER
92001-113
Unavailable
2
WASHER,BREAKER GOVERNOR
92022-244
$14.09
3
BREAKER,CONTACT
21135-011
$255.64
4
SCREW PAN HEAD 4X8
220B0408A
$0.68
5
WASHER SPRING 4MM
461F0400
Unavailable
6
WASHER PLAIN 4MM
410B0400
$0.48
7
BREAKER,CONTACT
21008-028
$71.65
8
PLATE,CONTACT BREAKE
21156-010
Unavailable
9
BRUSH,OIL
21019-005
$5.39
10
BREAKER,CONTACT
21008-027
$71.65
11
CONDENSER
21013-035
Unavailable
12
WIRING HARNESS,BRAKE
21029-037
Unavailable
13
PLATE,CONTACT BREAKE
21021-004
$24.57
14
PIN-SPRING,4X8
92042-034
$3.92
15
ADVANCER,SPARK
21148-010
$302.90
15
ADVANCER ASSY,SPARK
21148-1003
$299.72
16
CLAMP,WIRING HARNESS
21126-008
$4.73
17
SCREW PAN HEAD 5X12
220B0512A
$0.47
18
WASHER SPRING 5MM
461F0500
$0.69
19
WASHER-PLAIN,5MM
411B0500
$0.46
20
IGNITION COIL
21121-1003
Unavailable
20
IGNITION COIL
21121-1003
Unavailable
21
COIL,IGNITION,#2&3
21121-1004
Unavailable
22
GROMMET,HIGH TENSION
21131-005
$6.16
23
CAP SPARK PLUG
21160-020
Unavailable
24
GROMMET,PLUG CAP
21131-006
$8.53
25
SWITCH ASSY,MAGNETIC
27010-1023
Unavailable
25
SWITCH ASSY,MAGNETIC
27010-1023
Unavailable
26
REGULATOR
21066-025
Unavailable
27
SET,RECTIFIER
21061-1002
$398.82
27-1
SET,RECTIFIER
21061-1002
$398.82
28
NUT,LOCK 6MM
92017-014
$7.51
29
WASHER,6.5X22X1.6
92022-237
$3.92
30
WASHER SPRING 6MM
461F0600
$0.69
31
BOLT, HEX HEAD 6X35
110B0620
$2.12
31
BOLT,6X14
110B0614
Unavailable
32
BOLT, HEX HEAD, 6X12
110B0612
$1.45
33
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
34
NUT 6MM
311B0600
$0.93
35
CAP-ASSY-PLUG
21160-005
$51.69
