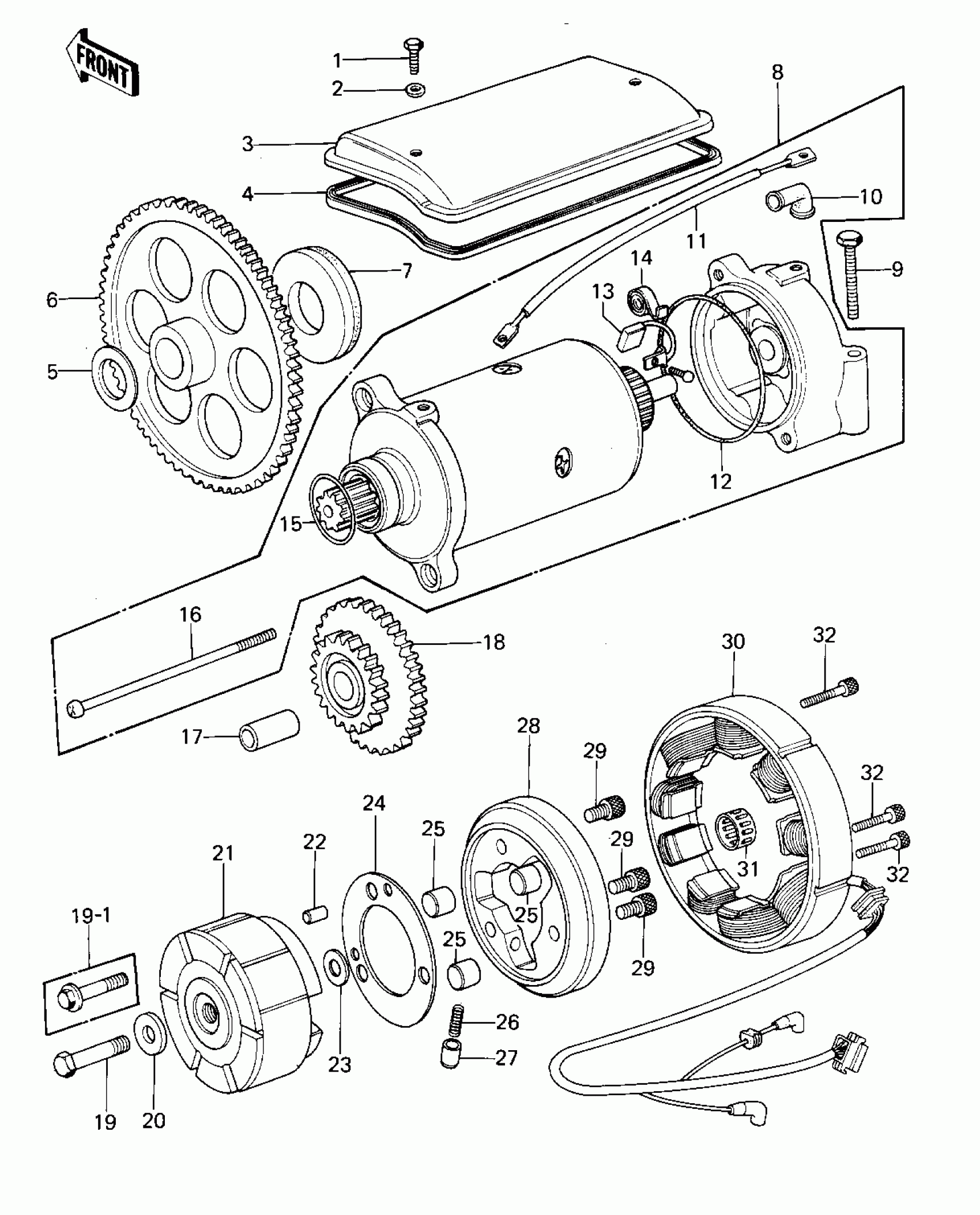

Kawasaki KZ1000 GENERATOR/STARTER MOTOR/STARTER CLUTCH ( Diagram
#
Description
Price
1
BOLT (6X10)
110N0610
$3.37
2
WASHER,PLAIN,6MM
410D0600
$0.77
3
COVER,STARTING MOTOR
21165-001
Unavailable
4
GASKET,STARTER COVER
21166-001
$36.70
5
WASHER 22.1X30.7X2.0
92026-091
Unavailable
6
GEAR,STARTING CLUTCH
21167-003
Unavailable
7
DAMPER RUBBER 6.3T
92075-192
Unavailable
7
DAMPER RUBBER 7.3T
92075-193
Unavailable
7
DAMPER RUBBER 8.3T
92075-194
Unavailable
8
STARTER-ELECTRIC
21163-008
$625.66
9
BOLT-HEX HEAD,6X55
110B0655
Unavailable
10
GROMMET,STARTER TERMINAL
21017-017
$9.43
11
WIRE,STARTER MOTOR
26010-055
$29.04
12
RING-O,STARTER MOTOR
21027-003
Unavailable
13
BRUSH,CARBON
21039-003
$40.76
14
SPRING-BRUSH
21040-003
Unavailable
15
RING-O,STARTER MOTOR,25MM
21027-004
$9.91
16
SCREW,PAN HEAD,5X110
21015-005
$9.81
17
PIN
13002-007
$18.23
18
GEAR-SPUR,STARTER MOTOR
21167-002
Unavailable
19
BOLT,8X40
114G0840
$6.00
19-1
BOLT,10X40
92001-173
$10.65
20
WASHER 8.5X23.5X4.5
92022-218
Unavailable
21
ROTOR
21007-1004
$1,183.01
21
ROTOR
21007-1004
$1,183.01
21
ROTOR
21007-1005
$1,183.01
22
PIN,DOWEL,6X22
551A0622
$3.89
23
SPACER,22X35.5X1.0
92026-092
$12.48
24
PLATE,CLUTCH STARTER
92026-112
Unavailable
25
ROLLER,15X14.4
92122-001
$11.60
26
SPRING
92081-110
$4.76
27
PIN
92043-087
$12.76
28
CLUTCH ASSY,STARTING
13194-003
Unavailable
29
BOLT SOCKET 8X16
92003-104
$4.45
30
STATOR ASSY
21Q76-023
Unavailable
31
NEEDLE BEARING, K222620
92046-033
Unavailable
32
BOLT-SOCKET,6X35,BLA
120Q0635
$1.98
