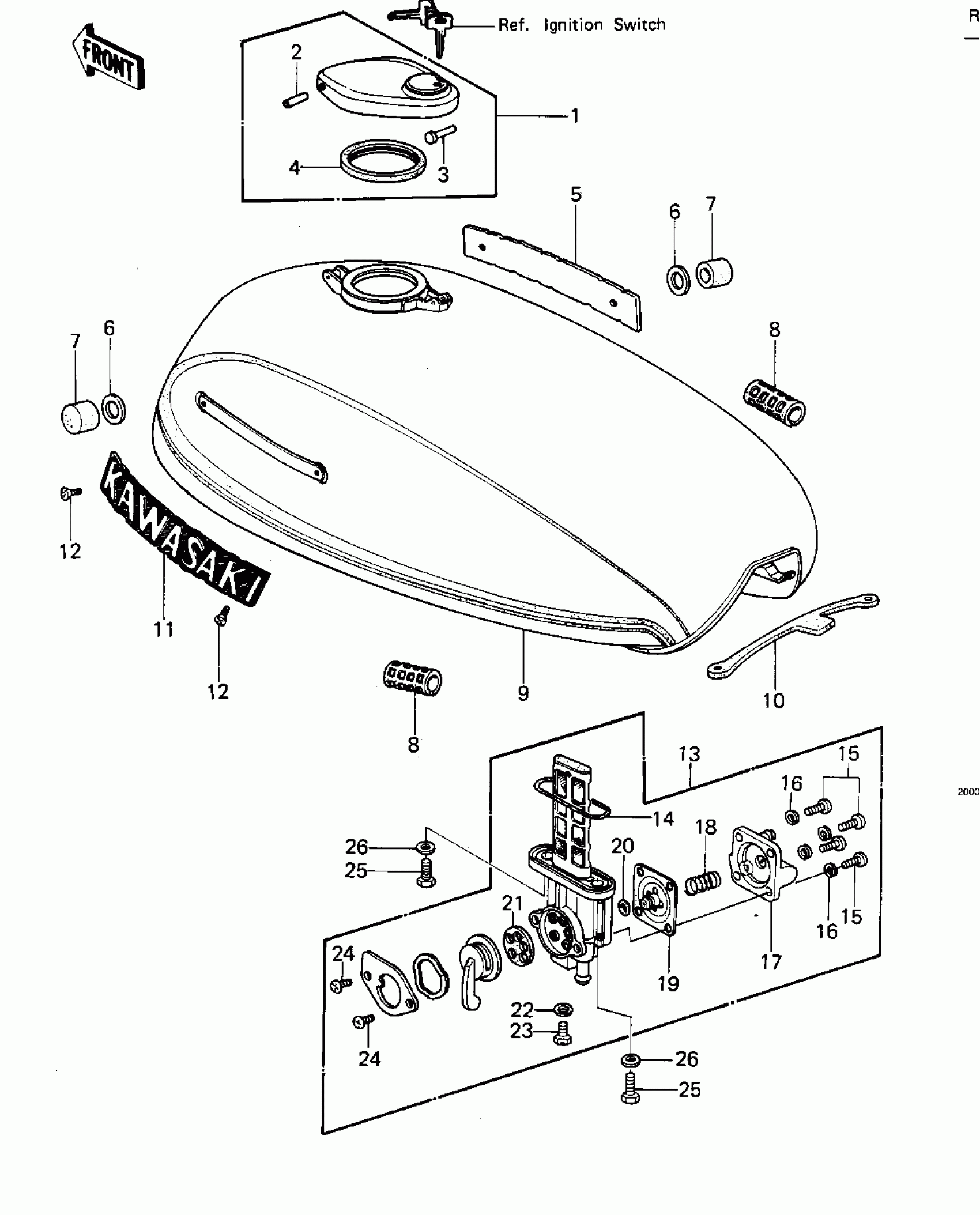

Kawasaki KZ1000 FUEL TANK (KZ1000-A2/A2A) Diagram
#
Description
Price
1
CAP,FUEL TANK
51048-012
Unavailable
2
PIN,CAP HINGE
92043-127
$5.24
3
PIN,HOOK
92043-126
Unavailable
4
GASKET-FUEL TANK CAP
51059-008
$10.97
5
EMBLEM,FUEL TANK
56014-1006
$132.38
6
WASHER,10.5X26X2.3
92022-044
$3.92
7
DAMPER,FUEL TANK
92075-125
$6.22
8
DAMPER,FUEL TANK
92075-084
$10.04
9
TANK-FUEL,L.GREEN
51001-1007-7T
Unavailable
9
TANK-FUEL,L.RED
51001-1007-7V
Unavailable
9
TANK-FUEL,EBONY
51001-1007-8G
$648.46
10
BAND,FUEL TANK
92072-042
$15.19
11
EMBLEM,FUEL TANK
56014-1006
$132.38
12
SCREW-CSK-CROS
221C0306
$0.74
13
TAP ASSY,FUEL
51023-1018
Unavailable
14
"0" RING
43058-1001
$15.05
15
SCREW-PAN-CRSOSS,4X1
220B0412
$0.21
16
WASHER SPRING 4MM
461F0400
Unavailable
17
COVER ASSY,FUEL TAP
51036-1001
Unavailable
18
SPRING,DIAPHRAGM
92081-1054
Unavailable
19
DIAPHRAGM VALVE ASSY
16126-1011
Unavailable
20
"0" RING,DIAPHRAGM
92055-1068
Unavailable
21
GASKET,FUEL TAP
11009-1044
$19.31
22
GASKET,DRAIN BOLT
11009-1045
Unavailable
23
BOLT,DRAIN
92001-1089
Unavailable
24
SCREW PAN HEAD 4X8
220B0408
$0.67
25
BOLT-HEX HEAD,6X16
92001-114
$4.37
26
WASHER-PLAIN
92022-183
$3.92
