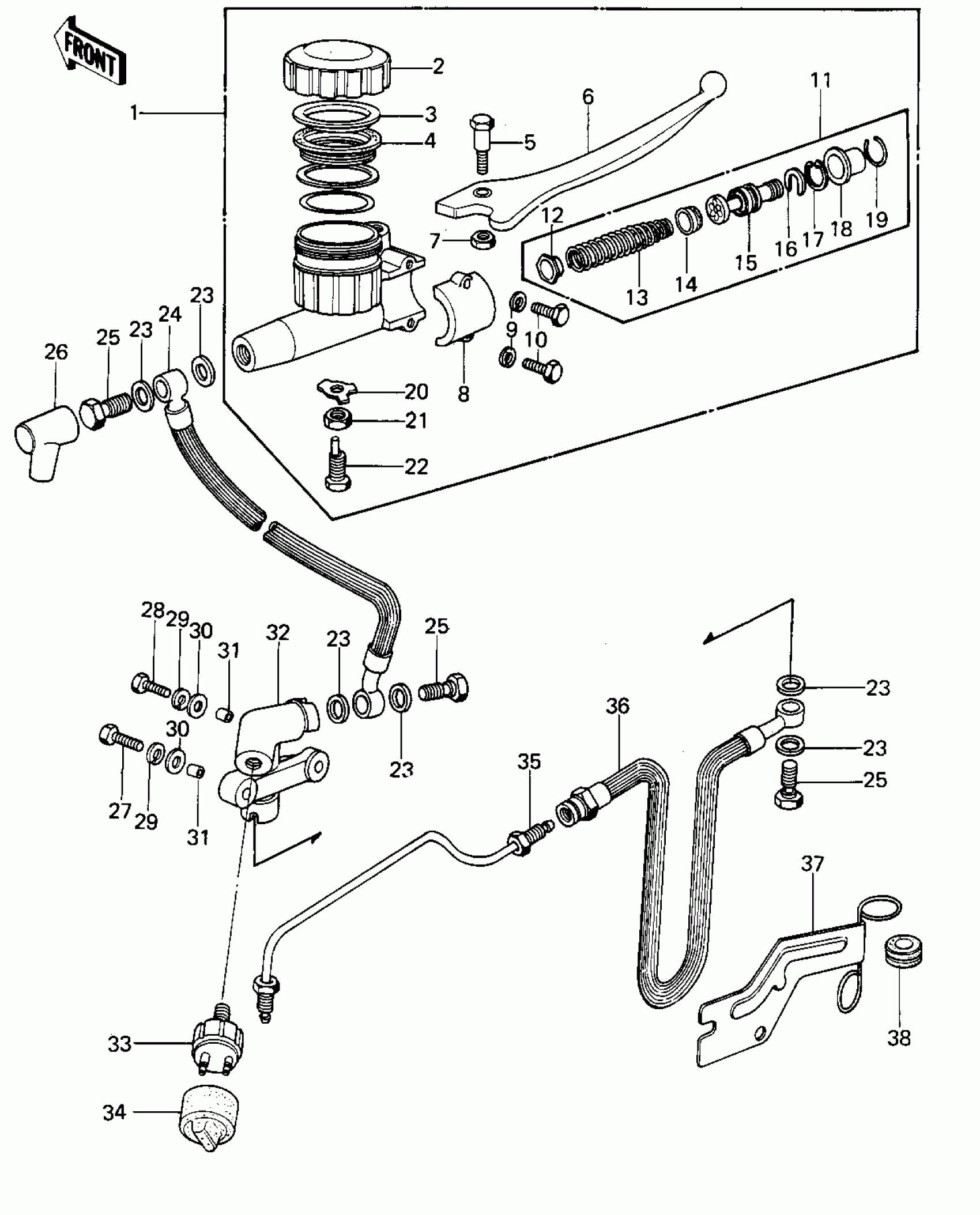

Kawasaki KZ1000 FRONT MASTER CYLINDER (KZ1000-A1) Diagram
#
Description
Price
1
CYL ASSY,MASTER,FRONT
43015-027
Unavailable
2
CAP,OIL CUP
43026-003
Unavailable
3
PLATE-MASTER CYLINDE
43027-001
Unavailable
4
DIAPHRAGM
43028-003
Unavailable
5
BOLT-LEVER FITTING
43033-001
Unavailable
7
NUT 6MM
312B0600
$0.72
8
HOLDER-MASTER CYL
43034-001
$39.96
9
WASHER PLAIN 6MM
411B0600
$2.84
10
BOLT HEX HEAD 6X25
110N0625
$5.46
11
REPAIR SET-MASTER CYL
43073-001
$102.17
12
VALVE ASSY-CHECK
43017-001
$14.80
13
SPRING ASSY-RETURN
43018-001
$24.74
14
CUP-PRIMARY
43019-001
$16.61
15
PISTON ASSY
43072-001
Unavailable
16
STOPPER-PISTON
43022-001
Unavailable
17
CIRCLIP-TYPE-C,18MM
481J1800
$4.31
18
BOOTS
43024-001
$7.20
19
STOPPER-BOOTS
43025-001
Unavailable
20
WASHER-LOCK,8MM
43031-001
Unavailable
22
BOLT,LEVER ADJUSTING
43030-003
Unavailable
23
WASHER,10.5X15X1.5
43067-001
$2.15
24
HOSE,FRONT BRAKE
43059-007
Unavailable
25
BOLT,OIL,L=23
92002-1888
$5.48
26
BOOT,DUST
49006-1041
$11.49
26
BOOT,DUST
49006-1041
$11.49
27
BOLT,HEX HEAD,6X45
110N0645
$3.58
28
BOLT HEX HEAD 6X36
110N0636
$3.38
30
WASHER PLAIN 6MM
411B0600
$2.84
31
COLLAR
92027-241
$6.57
32
JOINT,THREE WAY
43061-002
Unavailable
33
SWITCH-FRONT BRAKE
43065-001
Unavailable
34
CAP,FRONT BRK SWITCH
11012-1037
Unavailable
35
PIPE,BRIDGE
43060-021
Unavailable
37
BRACKET-BRAKE HOSE
43063-001
Unavailable
38
GROMMET-HOSE BRACKET
43064-001
Unavailable
