Description

Price

1

COLLAR,FRONT AXLE

41069-033

Unavailable

2

GEAR BOX ASSY

41078-008

Unavailable

3

PIN,SPRING

41082-001

$3.92

4

WASHER,5.1X9X0.4

41063-001

$4.69

5

PINION,SPEEDOMETER

41060-017

Unavailable

6

BUSHING,SPEEDOMETER CABLE

41062-005

$19.48

7

GEAR-METER SCREW,26T

41059-026

$42.53

8

SEAL-OIL,BJN30427-C3

92049-1057

$9.28

9

RECEIVER,GEAR

41064-013

Unavailable

10

DRUM-ASSY,FR BRK

41034-041

$232.28

11

BEARING-BALL,#6203C3

601B6203

$14.12

12

COLLAR,BRG

41039-028

Unavailable

13

RING-SNAP,40MM

92033-1040

$5.90

14

OIL SEAL

654A254008

$25.75

15

DUST COVER

41042-016

Unavailable

16

WASHER-PLAIN,5MM

411B0500

$0.46

17

SCREW-PAN-CROS

220B0512

$0.47

18

BOLT

92001-158

$3.41

19

WASHER,LOCK

92088-023

$11.60

20

DUST COVER

41042-014

Unavailable

21

COLLAR,FRONT AXLE

41069-032

$26.55

22

AXLE,FRONT

41068-049

$132.80

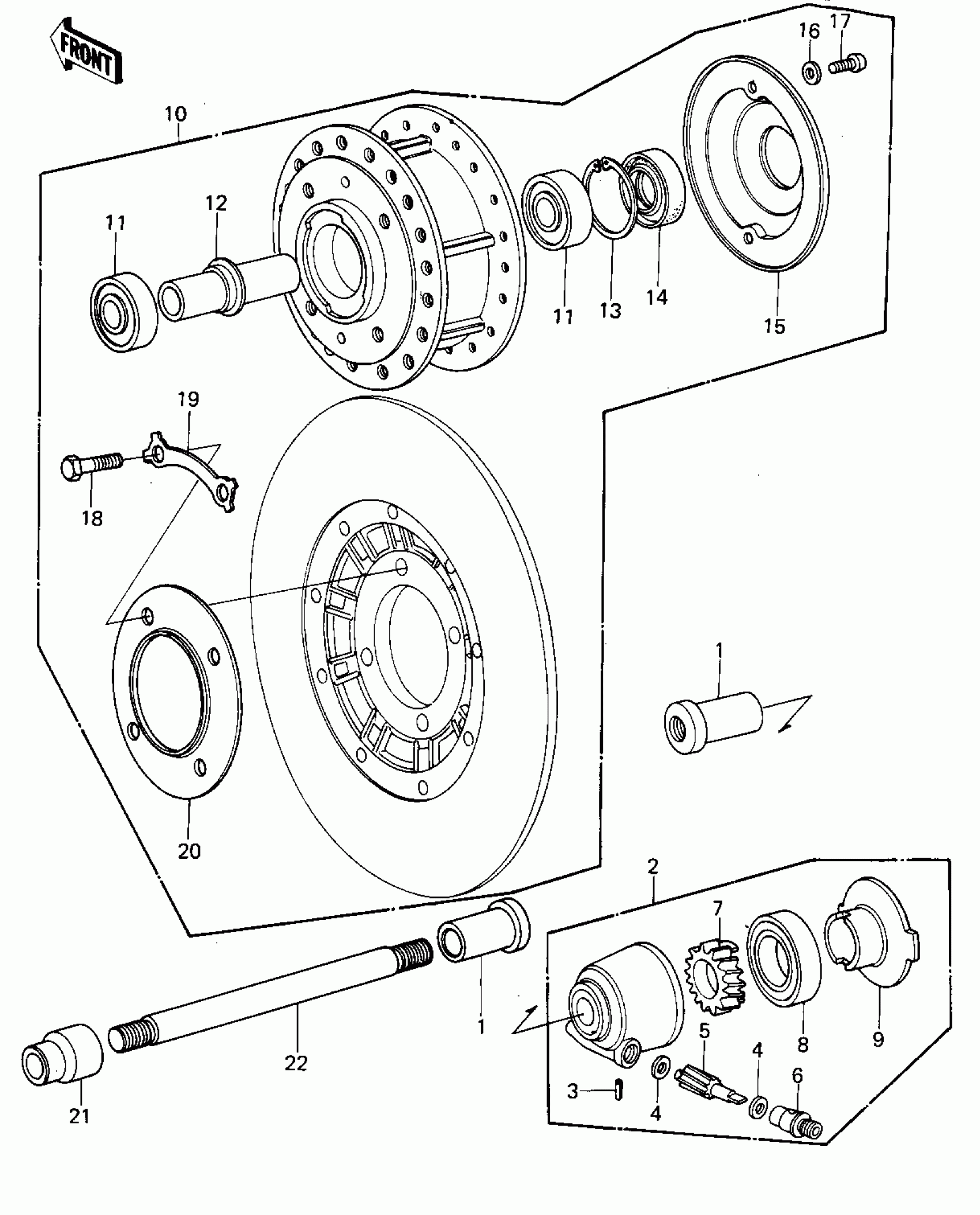

Kawasaki KZ1000 FRONT HUB ('77-'78 A1/A2/A2A) Diagram

COLLAR,FRONT AXLE

GEAR BOX ASSY

PIN,SPRING

WASHER,5.1X9X0.4

PINION,SPEEDOMETER

BUSHING,SPEEDOMETER CABLE

GEAR-METER SCREW,26T

SEAL-OIL,BJN30427-C3

RECEIVER,GEAR

DRUM-ASSY,FR BRK

BEARING-BALL,#6203C3

COLLAR,BRG

RING-SNAP,40MM

OIL SEAL

DUST COVER

WASHER-PLAIN,5MM

SCREW-PAN-CROS

BOLT

WASHER,LOCK

DUST COVER

COLLAR,FRONT AXLE

AXLE,FRONT
