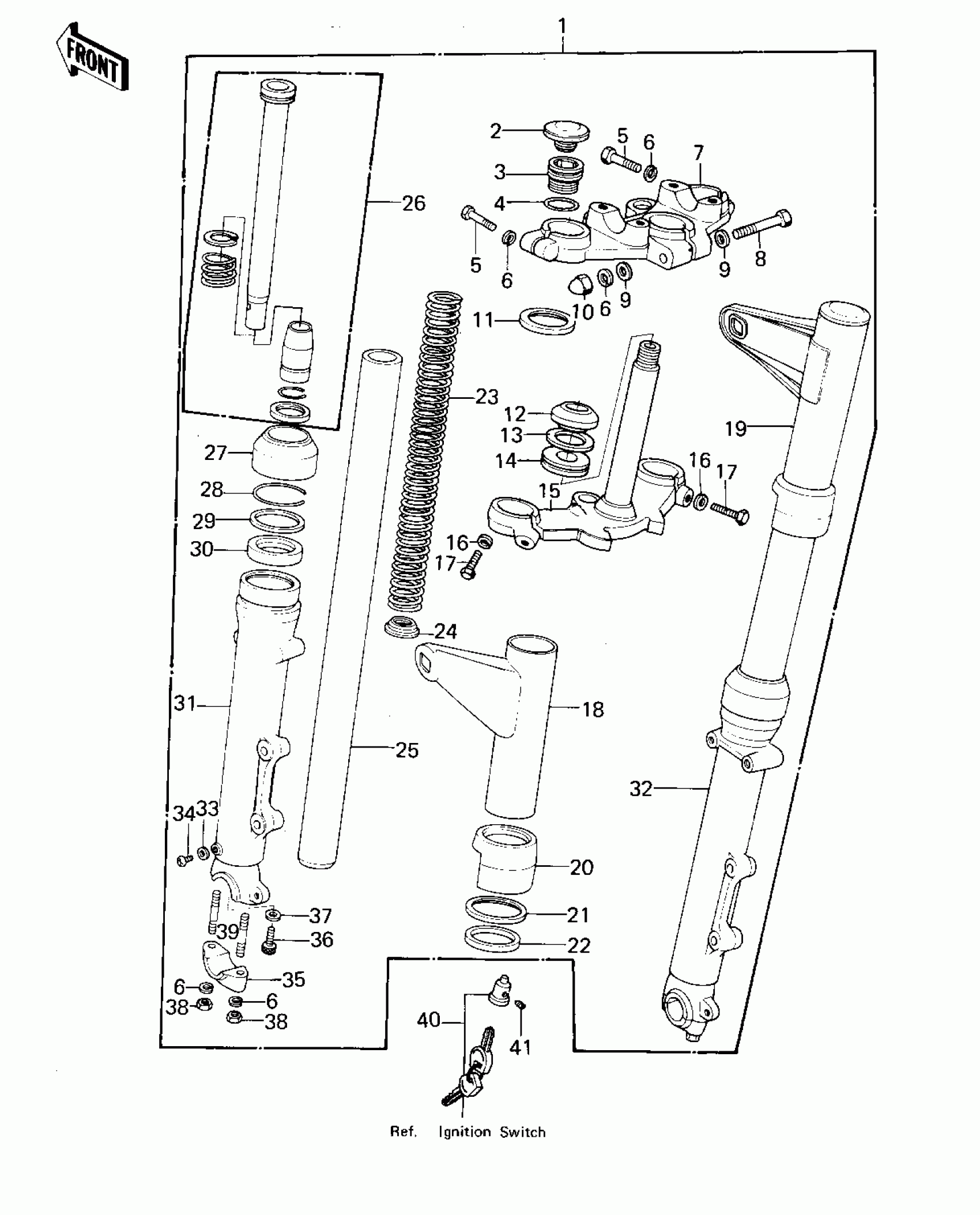

Kawasaki KZ1000 FRONT FORK (KZ1000-A2/A2A) Diagram
#
1
FORK-FRONT
44001-1007
$1,477.41
2
CAP,RUBBER
11012-1017
$11.49
3
CAP,FORK SPRING
44029-1003
Unavailable
4
"O" RING,FORK TOP
92055-1009
Unavailable
5
BOLT-HEX HEAD.8M/M
44041-045
$25.59
6
WASHER SPRING 8MM
461F0800
$0.40
7
HEAD,STEERING
44039-073
Unavailable
8
BOLT-STEERING STEM HD
44041-042
Unavailable
9
WASHER PLAIN 8MM
410B0800
$0.93
10
NUT FUEL TANK FRONT
92020-007
Unavailable
11
WASHER,FORK COVER
44064-005
Unavailable
12
RACE,STEERING STEM BEARING
92047-012
$14.60
13
WASHER,30.5X50X0.6
92022-231
$4.69
14
SEAL-OIL,STEERING STEM
92056-003
$8.86
15
STEM,STEERING
44037-098
$326.23
16
WASHER-SPRING,12MM
461F1200
$0.96
17
BOLT-HEX HEAD,12X36
92003-064
$25.59
18
COVER,L.H FORK
44033-072
$256.02
19
COVER,R.H FORK
44034-072
$236.71
20
GUIDE,FORK COVER
44064-025
Unavailable
21
WASHER,FORK COU GUID
44064-008
$11.66
22
GASKET,FORK COVER
44045-038
Unavailable
23
SPRING,FORK
44026-1003
$66.91
24
GUIDE,FORK SPRING
44028-1001
Unavailable
25
TUBE,FORK INNER
44013-1003
Unavailable
26
CYLINDER-FORK
44022-1002
$70.55
27
DUST SHEILD,FORK
44010-032
$39.46
28
CIRCLIP-OIL SEAL FIT
44044-012
$29.65
29
WASHER-OIL SEAL FIT
44043-044
$13.51
30
OIL SEAL,FORK
44009-024
$23.21
31
TUBE,LH,FORK OUTER
44005-1031
$362.15
32
TUBE,RH,FORK OUTER
44006-1031
$257.41
33
GASKET,FORK DRAIN PLUG
44045-002
$5.18
34
SCREW PAN HEAD 4X8
220B0408
$0.67
35
SCREW PAN HEAD 4X8
220B0408
$0.67
36
BOLT,SOCKET,FORK CYLINDER
44041-040
$6.57
37
GASKET
44045-057
$4.86
38
NUT,LOCK,8MM
92017-013
$10.35
39
STUD,8X35
92004-1009
$6.38
40
LOCK,STEERING
27016-048
Unavailable
41
UNAVAILABLE IN PRICE BOOK
92014016
Unavailable
