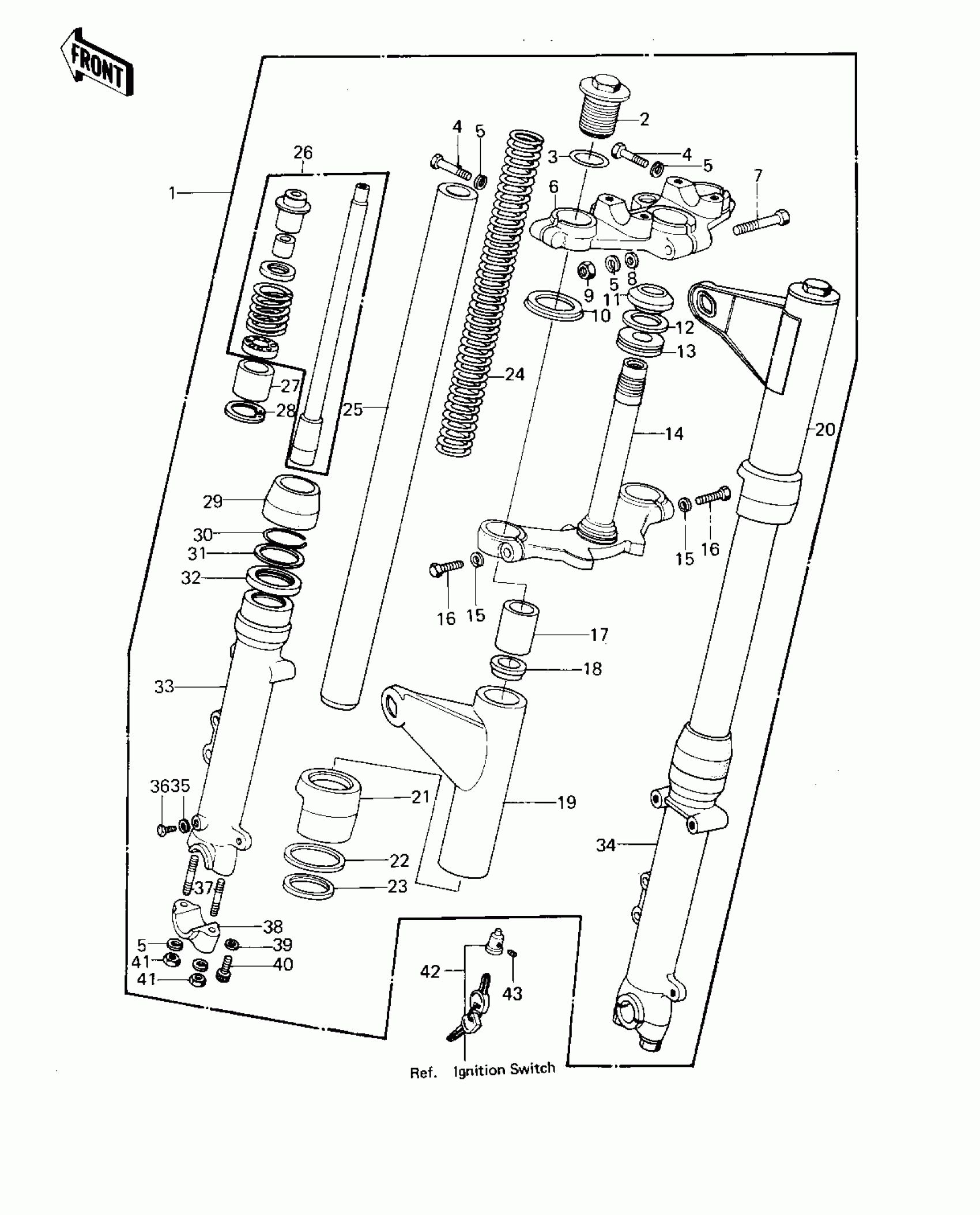

Kawasaki KZ1000 FRONT FORK (KZ1000-A1) Diagram

#

Description
Price

1

FORK-FRONT

44001-175

$1,269.52

2

'O' RING FORK TOP

44046-015

$9.40

3

'O' RING FORK TOP

44046-015

$9.40

4

WASHER SPRING 8MM

461F0800

$0.40

6

HEAD,STEERING

44039-073

Unavailable

7

BOLT-STEERING STEM HD

44041-042

Unavailable

8

WASHER PLAIN 8MM

410B0800

$0.93

9

NUT FUEL TANK FRONT

92020-007

Unavailable

10

WASHER,FORK COVER

44064-005

Unavailable

11

RACE,STEERING STEM BEARING

92047-012

$14.60

12

WASHER,30.5X50X0.6

92022-231

$4.69

14

UNAVAILABLE IN PRICE BOOK

44037-09B

Unavailable

15

WASHER-SPRING,12MM

461F1200

$0.96

16

BOLT-HEX HEAD,12X36

92003-064

$25.59

17

SPACER

44028-039

$6.72

18

GUIDE-FORK SPRING

44029-019

Unavailable

20

COVER,R.H FORK

44034-072

$236.71

21

GUIDE,FORK COVER

44064-025

Unavailable

22

WASHER,FORK COU GUID

44064-008

$11.66

23

GASKET,FORK COVER

44045-038

Unavailable

24

SPRING,FORK

44026-071

$81.16

25

TUBE,FORK INNER

44013-037

$620.14

26

CYLINDER-FORK

44022-027

Unavailable

27

PISTON,FORK

44018-009

Unavailable

28

CIRCLIP,FORK PISTON

44044-019

Unavailable

29

DUST SHEILD,FORK

44010-032

$39.46

30

CIRCLIP-OIL SEAL FIT

44044-012

$29.65

31

WASHER-OIL SEAL FIT

44043-044

$13.51

32

OIL SEAL,FORK

44009-024

$23.21

33

TUBE,LH,FORK OUTER

44005-065

$319.24

34

TUBE,RH,FORK OUTER

44006-063

$506.09

35

GASKET,FORK DRAIN PLUG

44045-002

$5.18

36

SCREW PAN HEAD 4X8

220B0408

$0.67

37

STUD,8X35

92004-1009

$6.38

38

HOLDER,FRONT AXLE

44063-014

Unavailable

38

GASKET

44045-057

$4.86

40

BOLT,SOCKET,FORK CYLINDER

44041-040

$6.57

41

NUT,LOCK,8MM

92017-013

$10.35

42

LOCK,STEERING

27016-048

Unavailable

43

SCREW,SEAT LOCK

92014-016

Unavailable
