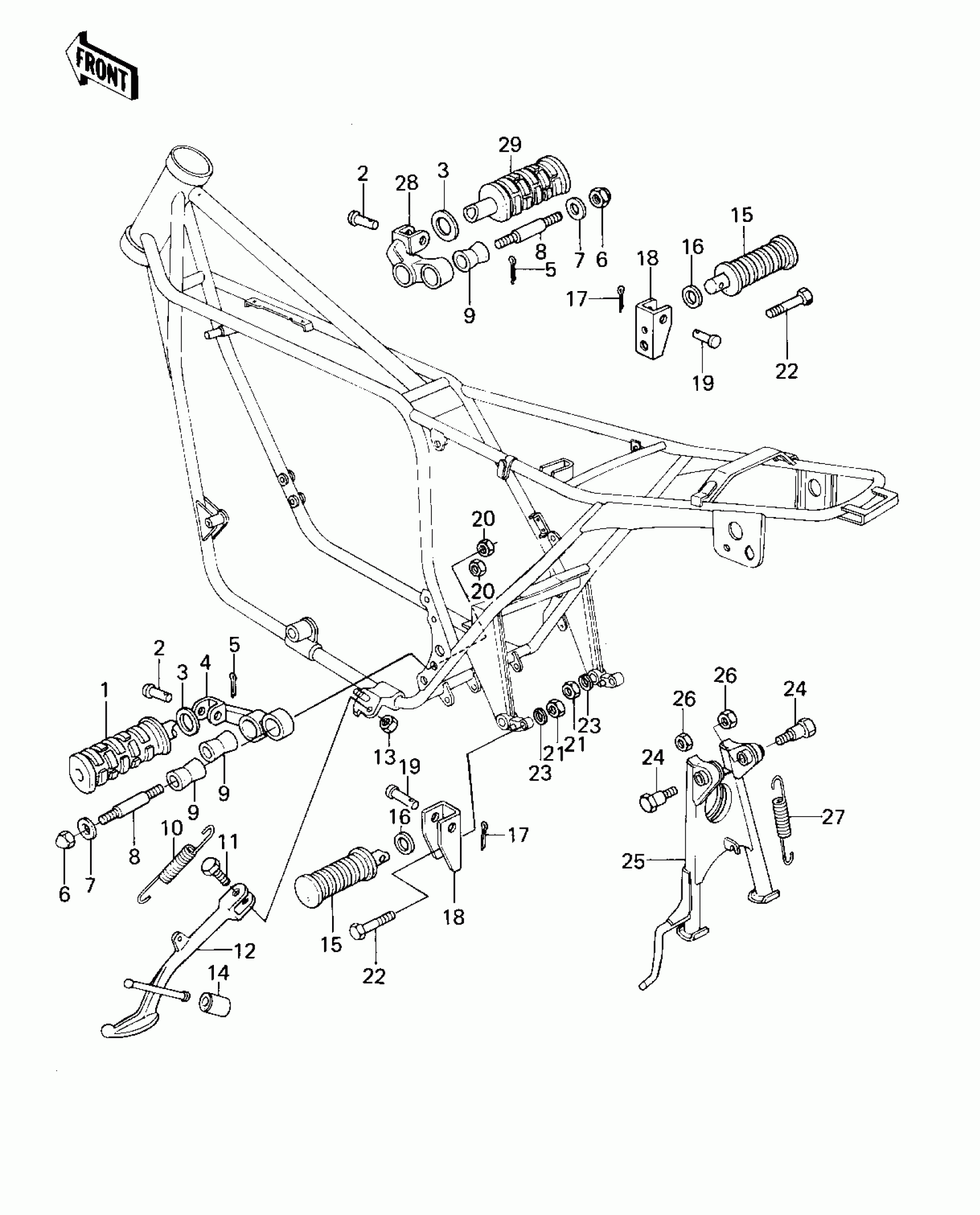

Kawasaki KZ1000 FOOTRESTS/STANDS ('77-'78 A1/A2/A2A) Diagram
#
Description
Price
1
BAR-FOOTREST,L.H
34028-011
Unavailable
2
PIN,8X31
92043-080
$5.52
3
WASHER,25X36X2.3
92022-250
$5.00
4
BRACKET,FOOTREST,L.H
34003-036
$119.76
5
NUT,CAP AND LOCK,8MM
92019-013
$14.88
6
NUT,CAP AND LOCK,8MM
92019-013
$14.88
7
CAP,FOOTRESTBAR
92102-010
$8.49
8
STUD,FOOTREST BAR FI
92004-048
$14.37
9
DAMPER RUBBER,FOOTRST
92075-140
$11.03
10
SPRING,STAND
34025-005
$7.58
11
BOLT,SIDE STAND
92003-079
$11.79
12
STAND-SIDE
34024-1038
$91.30
13
NUT-HEX-FINE,10MM
315B1000
$0.58
14
DAMPER RUBB SIDE STND
92075-031
$10.21
15
RUBBER,FOOTREST
92076-027
$37.21
16
WASHER-PLAIN (OPT)
92022-199
Unavailable
17
PIN-COTTER,2.0X12
550D2012
$1.11
18
BRACKET,STEP
32054-1021
Unavailable
19
PIN,6X28
92043-1464
$8.10
20
NUT-HEX-FINE,10MM
315B1000
$0.58
20
NUT-HEX-FINE,10MM
315B1000
$0.58
21
NUT-HEX-FINE,10MM
314B1000
$0.67
22
BOLT,10X28
113G1028
$5.98
23
WASHER SPRING 10MM
461F1000
$0.67
24
SHAFT MAIN STAND
34019-014
$32.19
25
STAND-MAIN
34011-1015
Unavailable
26
NUT,14MM
92016-044
$7.71
27
SPRING,CNT STAND
34023-012
$16.24
28
BRACKET,FOOTREST,R.H
34003-037
Unavailable
29
SPRING,CNT STAND
34023-012
$16.24
