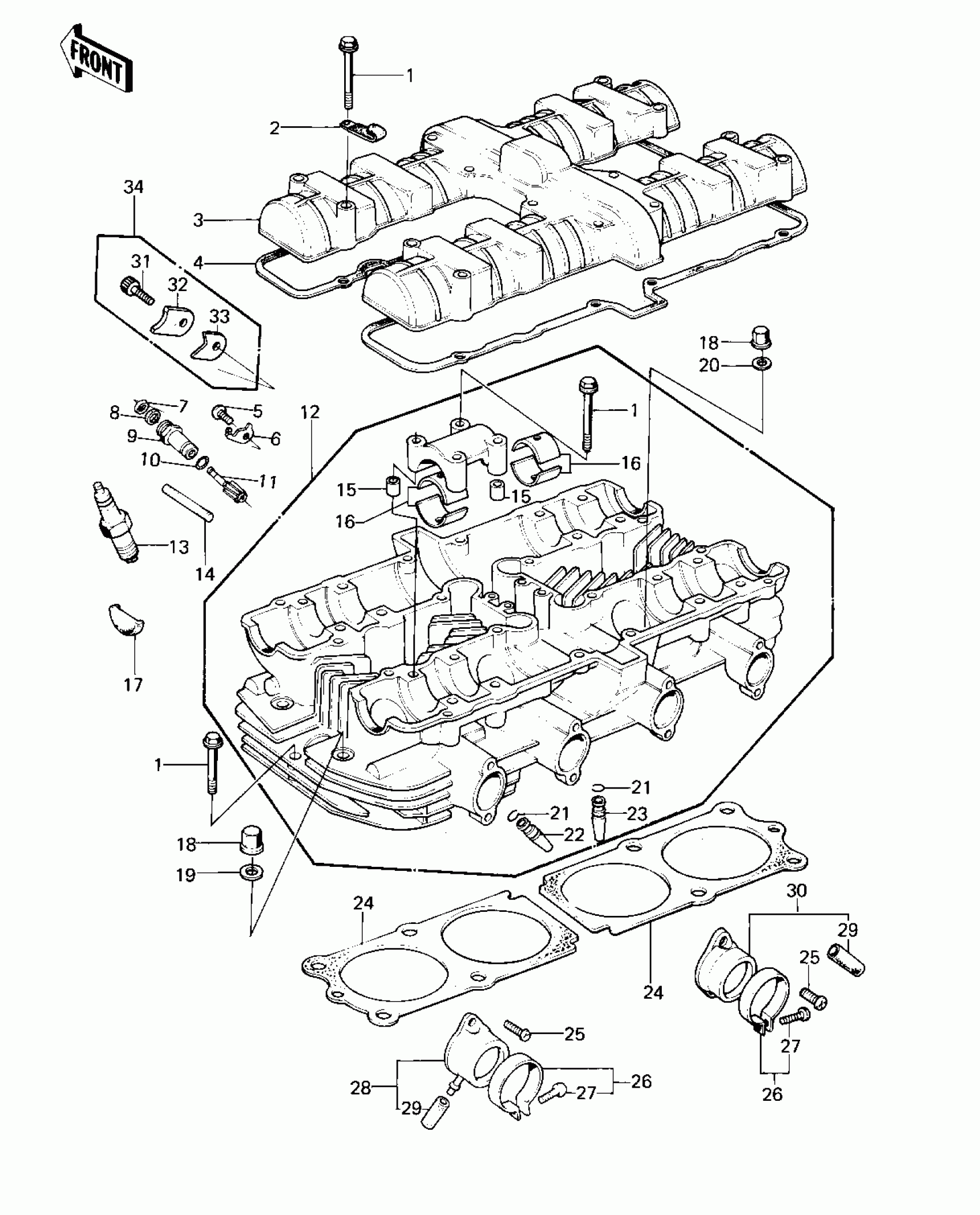

Kawasaki KZ1000 CYLINDER HEAD/COVER ('77-'78 A1/A2/A2A) Diagram
#
Description
Price
1
BOLT,FLANGED,6X45
92003-092
$7.58
2
CLAMP,WIRING HARNESS
21126-007
$4.73
3
COVER,CYLINDER HEAD
11022-012-2H
Unavailable
4
GASKET,CYL HEAD COVE
11023-006
Unavailable
5
SCREW PAN HEAD 6X10
220B0610
$3.14
6
PLATE,STOPPER
13169-015
Unavailable
7
GASKET,TACHOMETER GEAR
92065-103
$4.07
8
SEAL-OIL
92050-075
$11.39
9
GUIDE,TACHOMETER GEAR
92087-010
$24.19
10
RING-O,10MM
92055-096
$6.57
11
GEAR,TACHOMETER,10T
13223-011
Unavailable
12
CYLINDER HEAD,BARREL
11002-024-2H
Unavailable
13
PLUG-SPARK,B8ES(NGK)
92070-037
$3.62
14
TUD,8X30
92004-065 S
Unavailable
15
PIN,DOWEL,6.3X8X14
92042-007
$5.70
16
BUSHING,CAMSHAFT
13034-030
$22.16
17
PLUG,CAM SHAFT
92066-017
Unavailable
18
NUT,FLANGED CAP,10MM
92015-076
$13.08
19
WASHER,PLAIN,10MM
92022-215
$9.64
20
WASHER-PLAIN,10MM
411B1000
$0.93
21
RING-SNAP,VALVE GUIDE
92036-023
$0.48
22
GUIDE-VALVE,INTAKE
12013-009
$27.29
23
GUIDE-VALVE,EXHAUST
49002-1002
Unavailable
23
GUIDE-VALVE,EXHAUST
49002-1002
Unavailable
24
GASKET,CYLINDER HEAD
11004-076
Unavailable
25
SCREW PAN HEAD 6X18
220B0618
$3.67
26
CLAMP,HOLDER
92123-001
$12.00
27
SCREW,PAN HEAD
92011-037
Unavailable
28
HOLDER,CARBURETOR,L.
16065-029
$100.50
29
PLUG,12X25
92068-006
$4.26
30
HOLDER-R.H CARBRETOR
16065-028
$100.50
31
BOLT-SOCKET,6X14
120P0614
$3.82
32
HOLDER,TACHOMETER2.3T
13091-1008
$4.26
33
HOLDER,TACHOMETR,3.2T
13091-1009
$4.26
34
HOLDER SET,TACHOMETER
13091-5001
Unavailable
