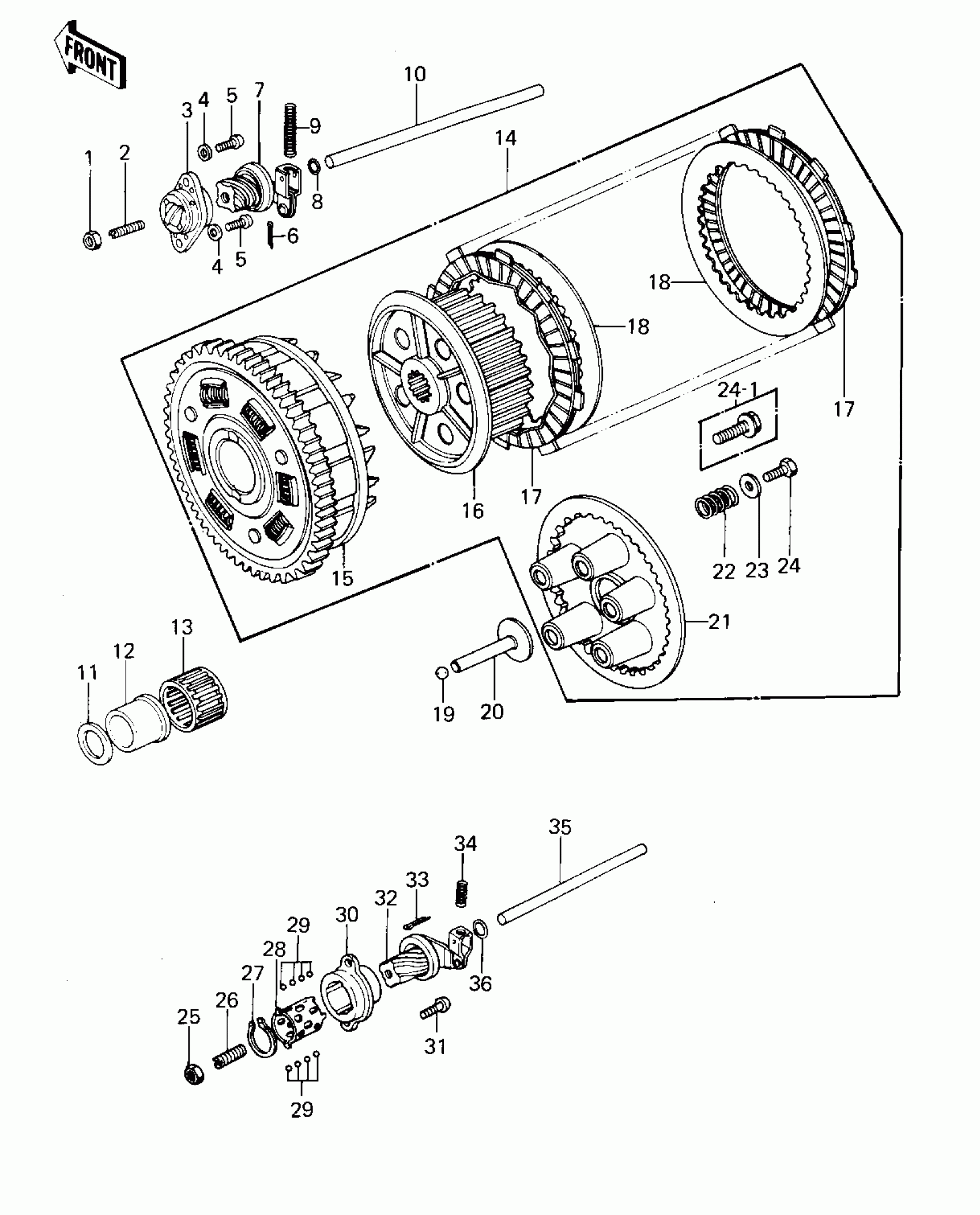

Kawasaki KZ1000 CLUTCH ('77-'78 A1/A2/A2A) Diagram

#

Description
Price

1

NUT 8MM

315B0800

$0.70

2

SCREW,SLOTTED,8X25

92014-014

Unavailable

3

OUTER,CLUTCH RELEASE

13118-007

Unavailable

4

WASHER PLAIN 6MM

411B0600

$2.84

5

SCREW-PAN-CROS,6X16

220B0616

$2.84

6

PIN-COTTER,1.6X15

550D1615

$2.51

7

INNER,CLUTCH RELEASE

13102-013

Unavailable

8

O RING,7MM

670B1507

$1.28

9

SPRING,CLUTCH RELEASE

92081-069

$7.51

10

PUSH ROD,CLUTCH

13116-021

Unavailable

11

SPACER,25.5X47X2.5

92026-022

$9.91

12

BUSHING,CLUTCH

92028-135

Unavailable

13

BEARING-NEEDLE,KTV323723

92046-028

$21.24

14

CLUTCH-ASSY

13081-1005

Unavailable

15

CLUTCH-ASSY

13095-036

Unavailable

16

CLUTCH-ASSY

13087-031

Unavailable

17

PLATE,CLUTCH FRICTION

13088-030

$26.17

18

PLATE,CLUTCH STEEL

13089-022

Unavailable

19

BALL-STEEL,3/8"

600A1200

$1.56

20

PUSHER,CLUTCH SPRG P

13116-022

Unavailable

21

PLATE,CLUTCH SPRING

13187-006

Unavailable

22

SPRING,CLUTCH

92081-1033

$7.38

22

SPRING,CLUTCH

92081-1033

$7.38

23

HOLDER,CLUTCH SPRING

13091-011

$5.78

24

BOLT,6X18

110G0618

$1.01

24-1

BOLT,FLANGED,6X18

92001-1066

$6.22

25

NUT-HEX-SMALL,8MM

318B0800

$0.59

26

SCREW,SLOTTED,8X25

92014-014

Unavailable

27

CIRCLIP-TYPE-C,15MM

480J1500

$2.31

28

RETAINER

13197-004

Unavailable

29

BALL,STEEL,1/8"

600A0400

$1.40

30

OUTER,CLUTCH RELEASE

13118-011

Unavailable

31

SCREW-PAN-CROS,6X16

220B0616

$2.84

32

INNER,CLUTCH RELEASE

13102-019

Unavailable

33

PIN-COTTER,1.6X15

550D1615

$2.51

34

SPRING,CLUTCH RELEASE

92081-069

$7.51

35

PUSH ROD,CLUTCH

13116-021

Unavailable

36

O RING,7MM

670B1507

$1.28
