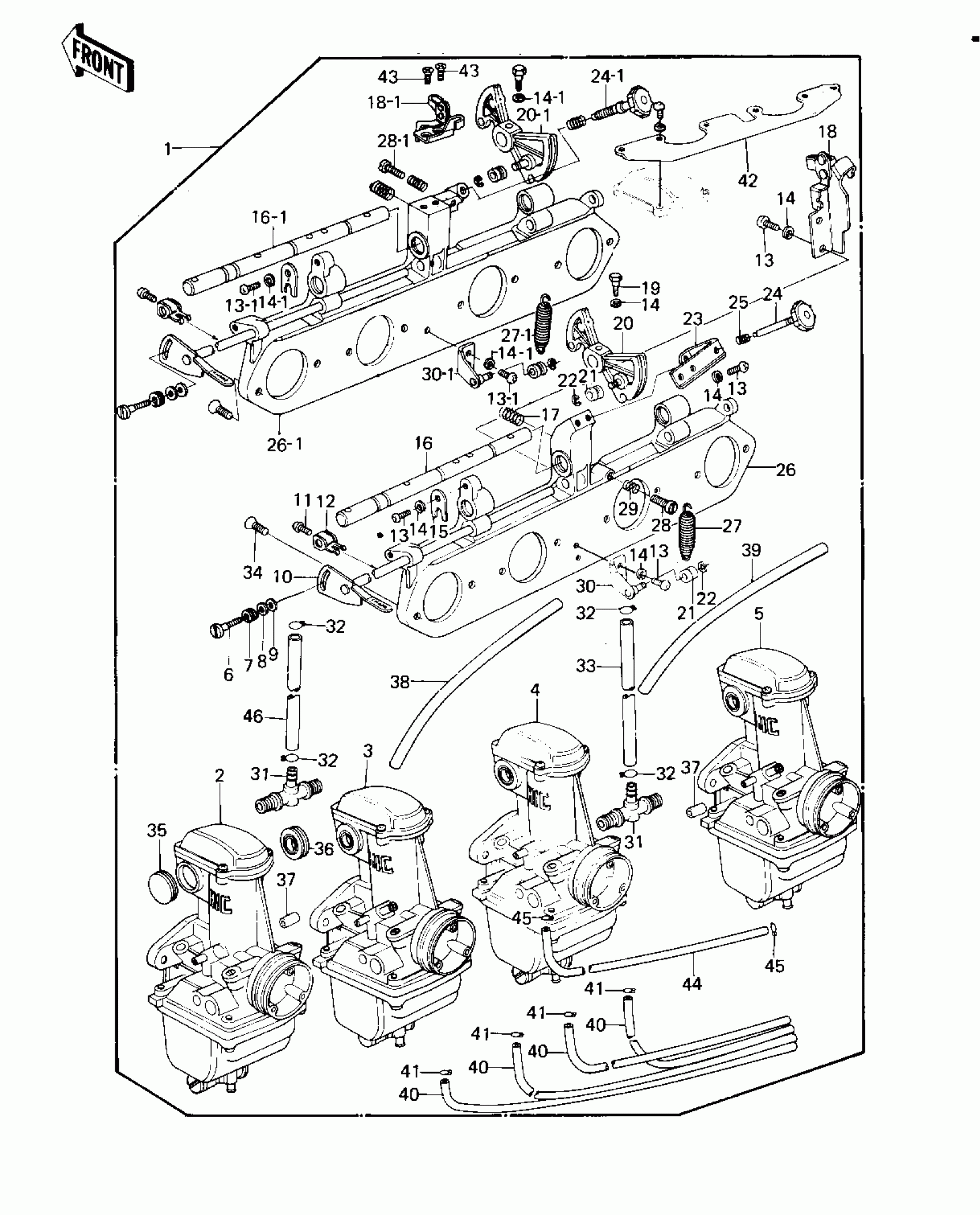

Kawasaki KZ1000 CARBURETOR ASSY ('77-'78 A1/A2/A2A) Diagram
#
1
CARBURETOR ASSY
16001-1024
$1,142.33
1
CARBURETOR ASSY
16001-1024
$1,142.33
1
CARBURETOR ASSY
16001-1025
Unavailable
1
CARBURETOR ASSY
16001-1023
$1,123.94
2
CARB ASSY,L.H OUTSID
16001-311
$488.37
2
CARBURETOR L.H OUT
16001-1056
$348.88
2
CARBURETOR,L.H,OUTSI
16001-1075
$434.13
3
CARB ASSY,L.H INSIDE
16001-312
$348.97
3
CARBURETOR,L.H.INSID
16001-1057
$348.88
3
CARBURETOR,L.H INSID
16001-1076
$433.32
4
CARB ASSY,R.H INSIDE
16001-313
$349.61
4
CARBURETOR,R.H INSID
16001-1058
$348.88
4
CARBURETOR,R.H INSID
16001-1077
$433.32
5
CARB ASSY,R.H OUTSID
16001-314
$349.30
5
CARBURETOR R.H OUT
16001-1059
$348.88
5
CARBURETOR,R.H OUTSI
16001-1078
$433.32
6
SCREW
16046-005
Unavailable
7
SPRING,F
16040-009
Unavailable
8
WASHER PLAIN 5MM
410B0500
$0.46
9
WASHER,PLAIN,NYLON
16039-019
Unavailable
10
SHAFT,STARTER PLUNGE
16041-021
$54.54
11
SCREW,PAN HEAD,5X7
16046-007
Unavailable
12
LEVER,STARTER PLUNGE
13168-1026
Unavailable
12
LEVER,STARTER PLUNGE
13168-1026
Unavailable
13
SCREW PAN HEAD 5X14
220B0514A
$4.43
13-1
SCREW PAN HEAD 5X14
220B0514A
$4.43
14
WASHER SPRING 5MM
461F0500
$0.69
14-1
WASHER SPRING 5MM
461F0500
$0.69
15
PLATE,SHAFT STOPPER
16055-012
Unavailable
16
SHAFT,CARB CONNECTIO
16041-022
$58.94
16-1
SHAFT,CARB CONNECTIO
16041-017
Unavailable
17
SPRING,CABLE PULLY
16040-022
Unavailable
18
BRACKET,CABLE PULLY
16077-014
$53.40
18-1
BRACKET,THROTTLE CAB
16077-017
$59.26
19
BOLT,HEX HEAD,5X14
16067-006
Unavailable
20
PULLY,THROTTLE CABLE
16068-017
$41.31
20-1
PULLEY,THROTTLE CABLE
16068-015
$66.67
21
RING
16073-016
Unavailable
22
CIRCLIP 3MM
482K3000
$1.78
23
HOLDER,THROTTLE SCRE
16077-013
$21.87
24
SCREW,THROTTLE STOP
16021-028
$29.26
24-1
SCREW,THROTTLE STOP
16021-033
$32.19
25
SPRING,THROTTLE STOP
16022-017
Unavailable
26
HOLDER,CARB MOUNTING
16065-039
$113.43
26-1
HOLDER,CARBURETOR
16065-049
$114.50
27
SPRING,CABLE PULLY
16040-020
Unavailable
27-1
SPRING,THROTTLE PULL
92081-1028
Unavailable
28
ADJUSTER,THROTTLE LEV
16021-020
Unavailable
28-1
SCREW
16021-032
$6.77
29
SPRING,THROTTLE ADJST
16022-010
Unavailable
30
BRK,THROT CABLE PULL
16077-018
$26.71
30-1
BRACKET,THROTTLE CABL
16077-016
$15.67
31
JOINT,FUEL PIPE
16046-002
$49.81
32
CLAMP,CARB CONECT HOS
92037-056
$6.60
33
HOSE,FUEL
92059-144
$97.88
34
SCREW,6X14
16033-029
Unavailable
35
CAP,RUBBER
16039-042
Unavailable
36
GROMMET,CARBURETOR
92071-104
Unavailable
37
HOSE,6X11.5X16
92059-141
$17.97
38
HOSE,AIR VENT,5X8X55
92059-1028
Unavailable
38
HOSE,AIR VENT,5X8X55
92059-1028
Unavailable
39
HOSE,AIR VENT,5X8X55
92059-1028
Unavailable
39
HOSE,AIR VENT,5X8X55
92059-1028
Unavailable
40
HOSE,FUEL OVERFLOW
92059-147
Unavailable
41
CLAMP,OVERFLOW HOSE
92037-173
Unavailable
42
PLATE,CARB CONNECTIO
16065-040
Unavailable
43
SCREW CNTSNK HD 5X10
221B0510A
$3.67
44
HOSE,FUEL TAP DIAPHRA
92059-1023
$16.60
45
CLAMP,TUBE
92037-072
$7.22
46
HOSE,6.50X11.50X100
92059-1059
$35.79
