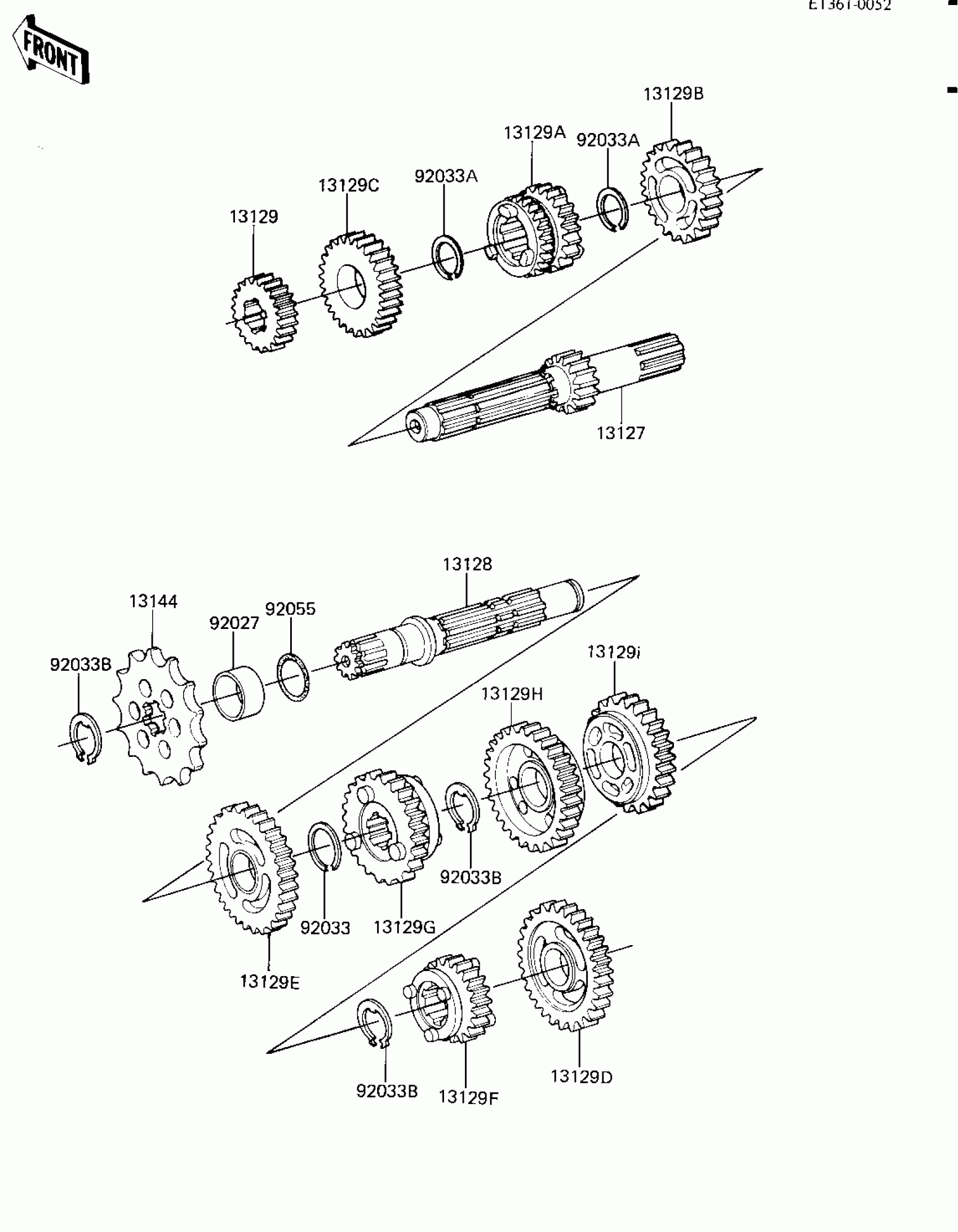

Kawasaki KX80 TRANSMISSION ('82 KX80-C2) Diagram

Description

Price

13127

LOW GEAR,13T

13127-1032

Unavailable

13128

SHAFT-TRANSMISSION OUTPUT

13128-1028

$137.91

13129

GEAR,INPUT 2ND,16T

13129-1215

$65.22

13129A

GEAR,INPUT,3RD&4TH

13129-1378

Unavailable

13129B

5TH GEAR,23T

13129-1217

Unavailable

13129C

TOP GEAR,24T

13129-1218

Unavailable

13129D

LOW GEAR,37T

13129-1219

Unavailable

13129E

2ND GEAR,34T

13129-1220

Unavailable

13129F

5TH GEAR,28T

13129-1223

Unavailable

13129G

GEAR,OUTPUT,TOP,26T

13129-1339

Unavailable

13129H

GEAR,OUTPUT,3RD,31T

13129-1377

Unavailable

13129I

GEAR,OUTPUT,4TH,30T

13129-1315

Unavailable

13144

SPROCKET-OUTPUT,14T

13144-1022

$23.92

92027

COLLAR,20X25X12.5

92027-1077

$20.77

92033

RING-SNAP,18MM

92033-029

$9.82

92033A

RING-SNAP,17MM

92033-1060

$4.26

92033B

RING-SNAP,18MM

92033-1079

$4.26

92055

RING-O,17.5X1.5

92055-022

$6.22
