Description

Price

1

LOW GEAR,13T

13127-1032

Unavailable

2

5TH GEAR,23T

13129-1217

Unavailable

3

RING-SNAP,17MM

92033-1060

$4.26

4

GEAR,INPUT,3RD&4TH

13129-1378

Unavailable

5

TOP GEAR,24T

13129-1218

Unavailable

6

GEAR,INPUT 2ND,16T

13129-1215

$65.22

7

SHAFT-TRANSMISSION OUTPUT

13128-1028

$137.91

8

LOW GEAR,37T

13129-1219

Unavailable

9

5TH GEAR,28T

13129-1223

Unavailable

10

RING-SNAP

92033-028

$8.79

11

WASHER,LOCK

92024-055

$5.17

12

4TH GEAR,30T

13129-1222

Unavailable

13

3RD GEAR,31T

13129-1221

Unavailable

14

GEAR,OUTPUT,TOP,26T

13129-1339

Unavailable

15

2ND GEAR,34T

13129-1220

Unavailable

16

RING-O,17.5X1.5

92055-022

$6.22

17

COLLAR,20X25X12.5

92027-1077

$20.77

18

SPROCKET-OUTPUT,14T

13144-1022

$23.92

19

CIRCLIP-TYPE-C,20MM

480J2000

$2.71

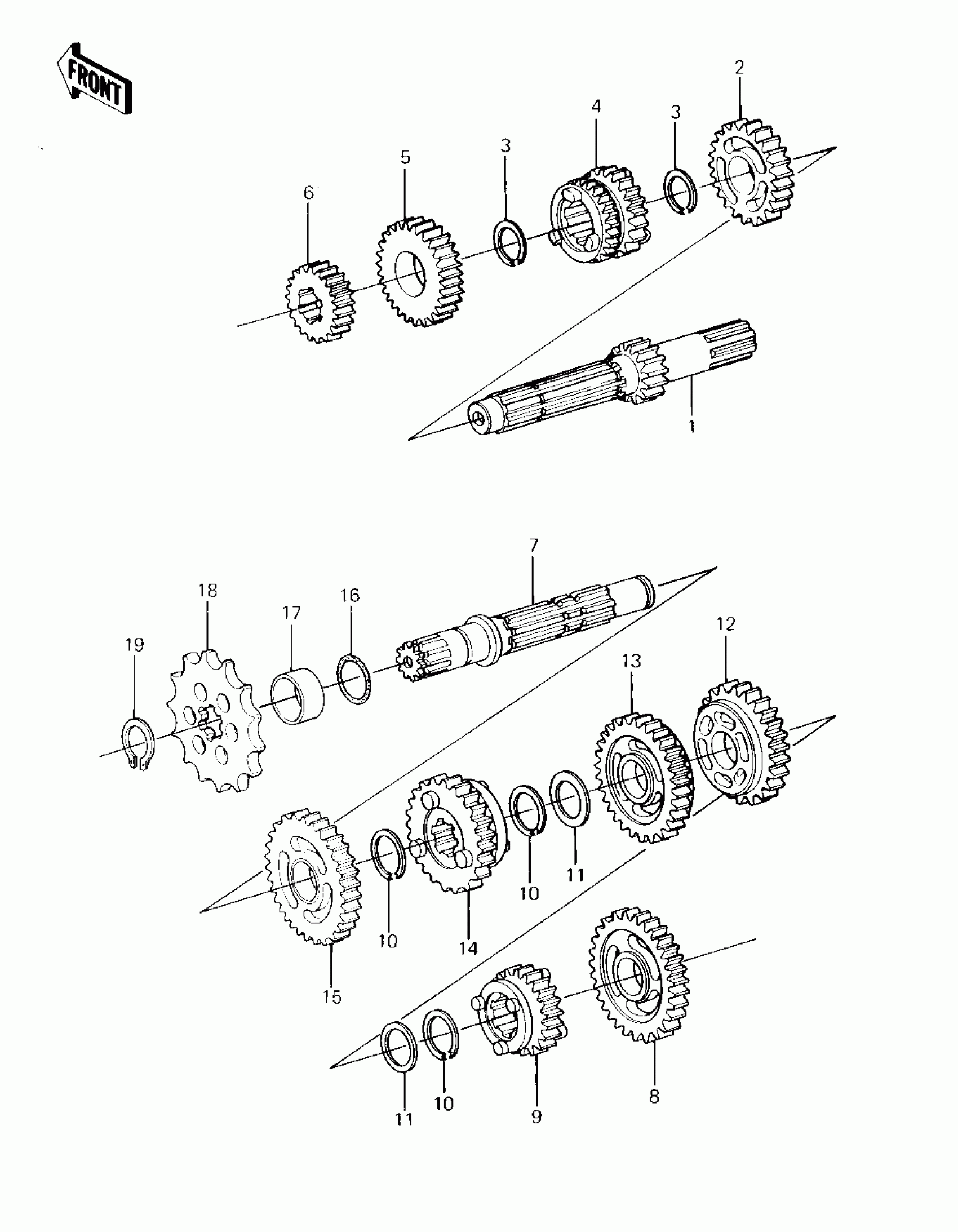

Kawasaki KX80 TRANSMISSION ('81 KX80-C1) Diagram

LOW GEAR,13T

5TH GEAR,23T

RING-SNAP,17MM

GEAR,INPUT,3RD&4TH

TOP GEAR,24T

GEAR,INPUT 2ND,16T

SHAFT-TRANSMISSION OUTPUT

LOW GEAR,37T

5TH GEAR,28T

RING-SNAP

WASHER,LOCK

4TH GEAR,30T

3RD GEAR,31T

GEAR,OUTPUT,TOP,26T

2ND GEAR,34T

RING-O,17.5X1.5

COLLAR,20X25X12.5

SPROCKET-OUTPUT,14T

CIRCLIP-TYPE-C,20MM
