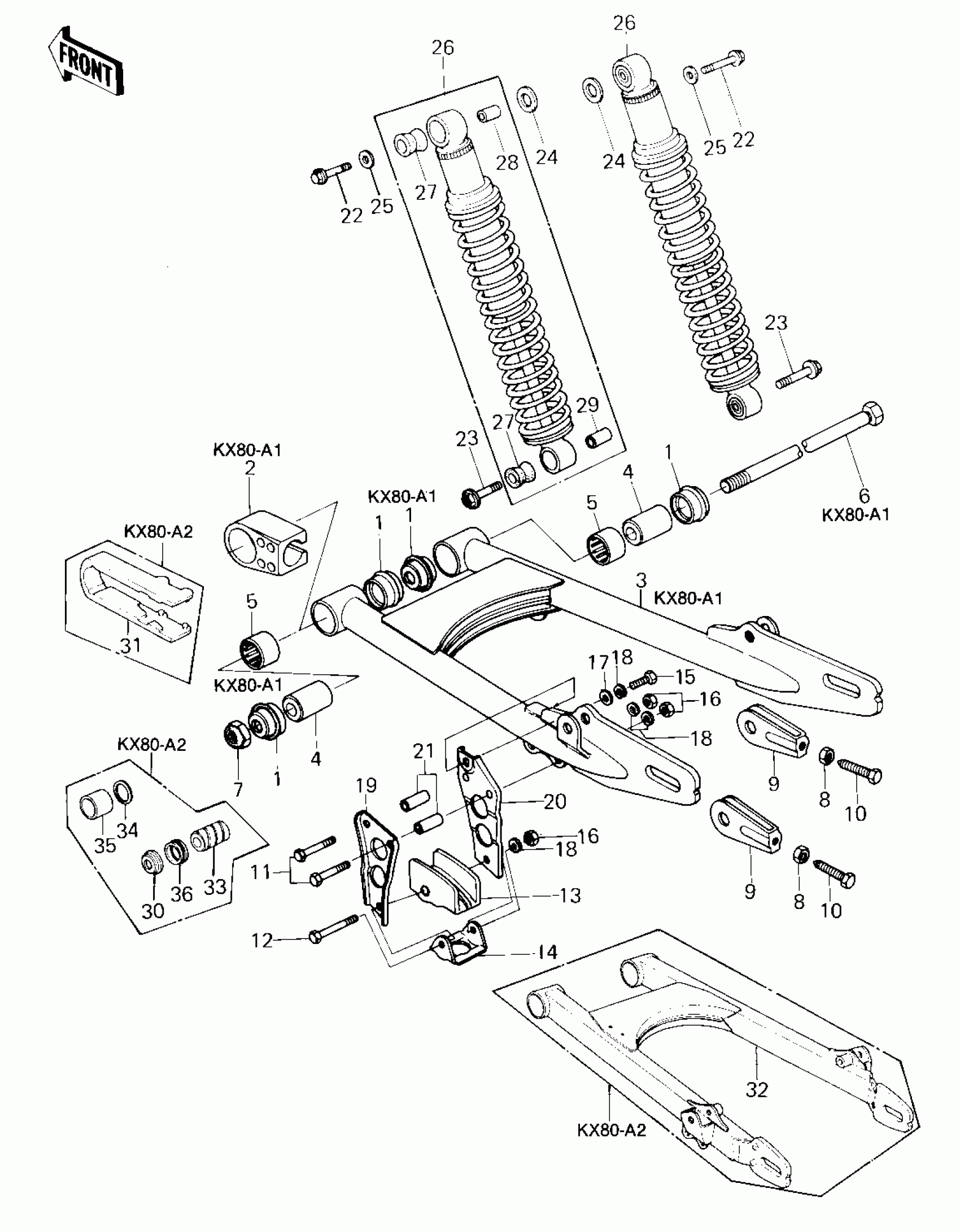

Kawasaki KX80 SWING ARM/SHOCK ABSORBERS Diagram
#
1
CAP,SWING ARM
11012-1065
Unavailable
2
GUIDE,CHAIN
12053-1029
Unavailable
3
ARM,SWING
33001-1053-10
Unavailable
3
ARM,SWING
33001-1053-10
Unavailable
4
SLEEVE,SWING ARM
42036-1022
Unavailable
5
BEARING-NEEDLE,HK2216
92046-1115
Unavailable
6
SHAFT,SWING ARM PIVOT
33032-1007
Unavailable
7
NUT,LOCK,12MM
92015-1774
Unavailable
8
NUT 6MM
311B0600
Unavailable
9
ADJUSTER,CHAIN
33040-1009
Unavailable
10
BOLT,6X39
92001-1463
Unavailable
11
BOLT 6X35
110R0635
Unavailable
12
BOLT-UPSET
112G0645
Unavailable
13
GUIDE,CHAIN
12053-1030
Unavailable
14
RETAINER,CHAIN GUIDE
14020-1006
Unavailable
15
BOLT-UPSET 6X14
112B0614
Unavailable
16
NUT 6MM
311B0600
Unavailable
17
WASHER PLAIN 6MM
411B0600
Unavailable
18
WASHER SPRING 6MM
461F0600
Unavailable
19
GUARD,CHAIN,OUTSIDE
55020-1017
Unavailable
20
GUARD,CHAIN,INSIDE
55020-1018
Unavailable
21
SPACER,10X13.2X22
92026-1040
Unavailable
22
BOLT-FLANGED,6X10
130G0610
Unavailable
23
BOLT,FLANGED,10X30
92001-1104
Unavailable
23
BOLT,FLANGED,10X33
92001-1308
Unavailable
24
WASHER,12.3X22X1.6
92022-1065
Unavailable
25
WASHER,6.5X22X1.6
92022-237
Unavailable
26
SHOCK ABSBR RR
45014-1041
Unavailable
26
SHOCK ABSBR RR
45014-1053
Unavailable
27
DAMPER,SHOCKABSORBER
45017-012
Unavailable
28
COLLAR,SHOCK ABSORBER
92027-1016
Unavailable
29
COLLAR,SHOCKABSORBER
45016-008
Unavailable
30
CAP,SWING ARM
11012-1110
Unavailable
31
GUIDE,CHAIN
12053-1044
Unavailable
32
ARM,SWING
33001-1052
Unavailable
33
SLEEVE,SWING ARM
42036-1033
Unavailable
34
SHIM,22.1X27.6X0.5
92025-1197
Unavailable
35
BUSHING,22X28X23.5
92028-1078
Unavailable
36
OIL SEAL
92049-1053
Unavailable
37
SPRING,SHOCK ABSORBER
92081-1169
Unavailable
