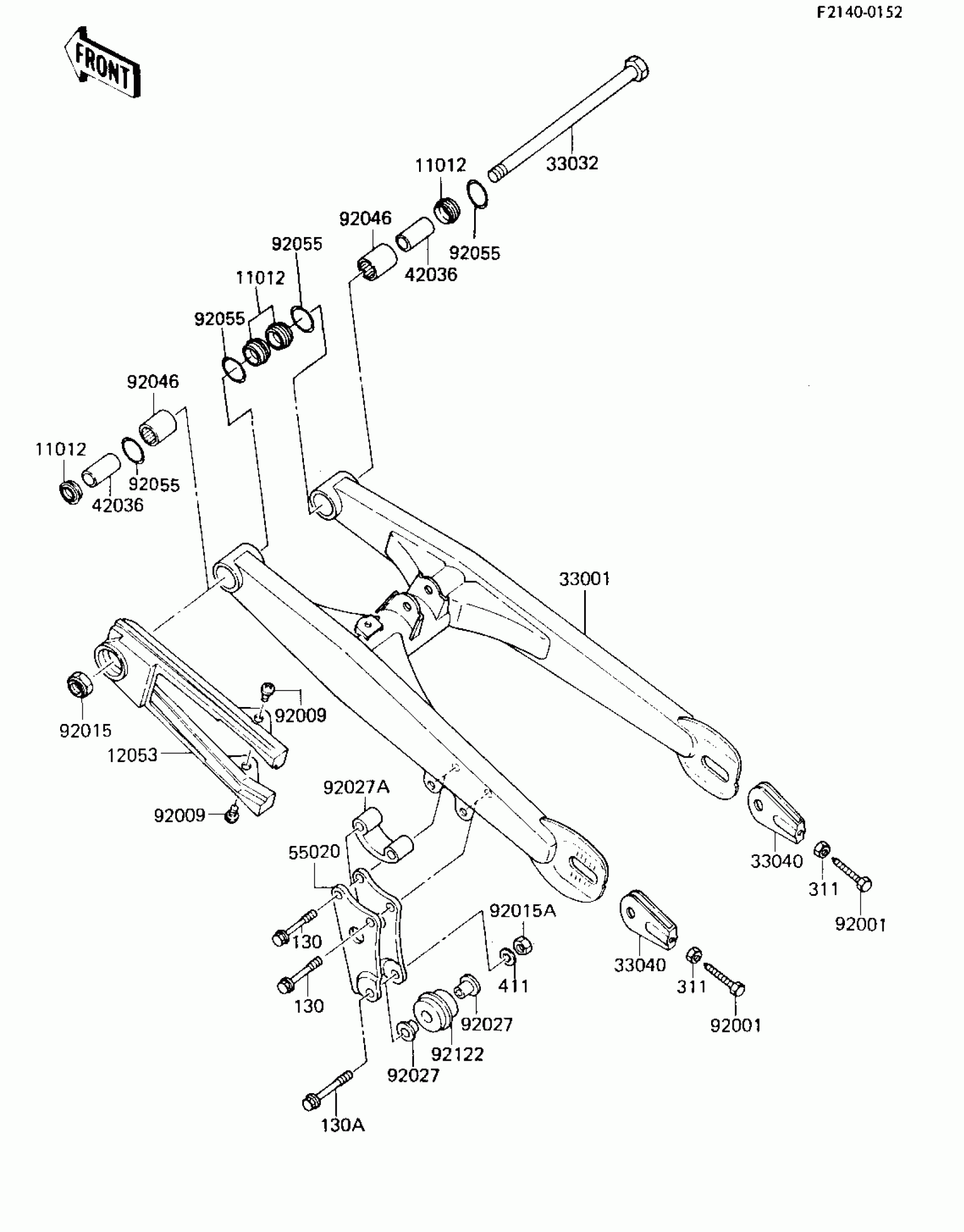

Kawasaki KX80 SWING ARM ('84 KX80-E2) Diagram

Description

Price

11012

CAP

11012-1263

$16.53

12053

GUIDE-CHAIN,FR

12053-1074

Unavailable

33001

ARM-COMP-SWING

33001-1206

$179.77

33032

SHAFT-SWING ARM,PIVOT

33032-1031

$29.87

33040

ADJUSTER-CHAIN

33040-1055

$9.83

42036

SLEEVE,SWING ARM,L=34

42036-1067

$10.65

55020

GUARD,CHAIN,RR

55020-1163

$33.60

92001

BOLT,6X39

92001-1463

$4.69

92009

SCREW,6X10,WHITE

92009-1286

$4.31

92015

NUT,LOCK,12MM

92015-1774

$7.71

92015A

NUT,LOCK 6MM

92017-014

$7.51

92027

COLLAR,6.5X10X14.1

92027-1183

$5.52

92027A

COLLAR,CHAIN GUIDE

92027-1495

$11.38

92046

BEARING-NEEDLE

92046-1046

$27.88

92055

RING-O,SWING ARM

92055-1240

Unavailable

92122

ROLLER,CHAIN GUIDE

92122-1030

$34.49

130

BOLT-FLANGED,6X45

130G0645

$0.93

130A

BOLT-FLANGED,6X50

130G0650

$1.01

311

NUT 6MM

311B0600

$0.93

411

WASHER PLAIN 6MM

411B0600

$2.84
