Description

Price

1

SHAFT,SWING ARM

33032-1017

$36.02

2

CAP,SWING ARM

11012-1150

Unavailable

3

BEARING-NEEDLE,F-2220

92046-1162

$21.24

4

NUT-LOCK,14MM

92019-011

Unavailable

5

ARM,SWING

33001-1074

$175.45

6

SLEEVE,CHAIN GUIDE

42036-1042

Unavailable

7

GUIDE,CHAIN

12053-1053

Unavailable

8

BOLT-UPSET,6X16

112G0616

$1.10

9

WASHER SPRING 6MM

461F0600

$0.69

10

COLLAR,L=5.1

92027-1260

$6.22

11

COLLAR,CHAIN GUIDE

92027-1332

Unavailable

12

BOLT,6X39

92001-1463

$4.69

13

NUT 6MM

311B0600

$0.93

14

ADJUSTER,CHAIN

33040-1009

$9.83

15

GUIDE,CHAIN

12053-1057

Unavailable

16

GUARD,CHAIN

55020-1047

$36.91

17

GUARD,CHAIN

55020-1055

Unavailable

18

BOLT-UPSET

112G0645

$0.48

19

WASHER SPRING 6MM

461F0600

$0.69

20

BOLT-UPSET,6X16

112G0616

$1.10

21

NUT,LOCK,6MM

92019-008

$4.26

22

WASHER,6.5X20X1.6

92022-125

$1.40

23

MARK

56018-1157

Unavailable

24

BOLT,FLANGED,6X40

130B0640

$0.74

25

WASHER PLAIN 6MM

411B0600

$2.84

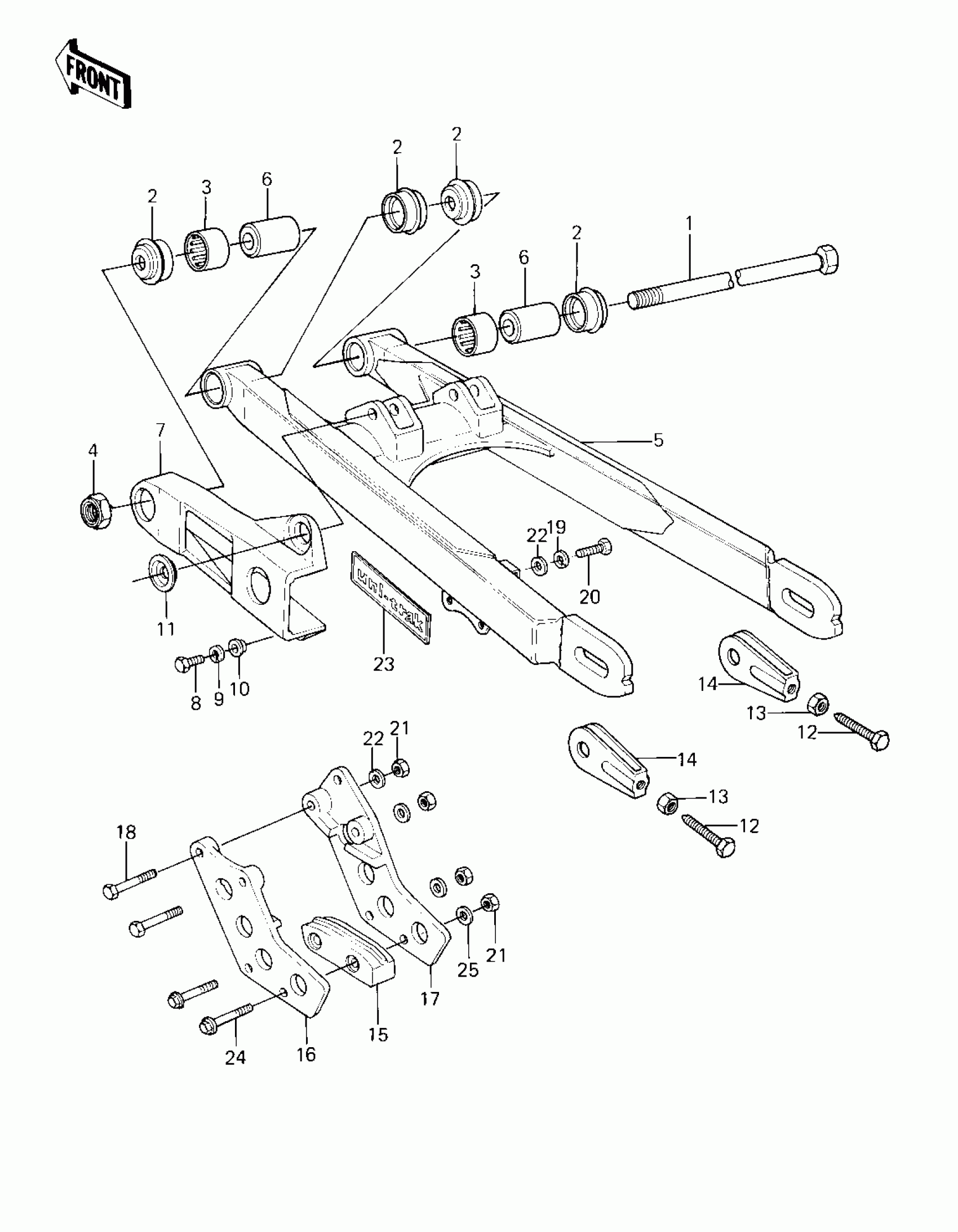

Kawasaki KX80 SWING ARM ('81 KX80-C1) Diagram

SHAFT,SWING ARM

CAP,SWING ARM

BEARING-NEEDLE,F-2220

NUT-LOCK,14MM

ARM,SWING

SLEEVE,CHAIN GUIDE

GUIDE,CHAIN

BOLT-UPSET,6X16

WASHER SPRING 6MM

COLLAR,L=5.1

COLLAR,CHAIN GUIDE

BOLT,6X39

NUT 6MM

ADJUSTER,CHAIN

GUIDE,CHAIN

GUARD,CHAIN

GUARD,CHAIN

BOLT-UPSET

WASHER SPRING 6MM

BOLT-UPSET,6X16

NUT,LOCK,6MM

WASHER,6.5X20X1.6

MARK

BOLT,FLANGED,6X40

WASHER PLAIN 6MM
