Description

Price

11012

CAP

11012-1263

$16.53

11012A

CAP,SWING ARM

11012-1411

$21.34

12053

GUIDE-CHAIN,FR,UPP

12053-1132

Unavailable

12053A

GUIDE-CHAIN,FR,LWR

12053-1133

Unavailable

12053D

GUIDE-CHAIN,RR,LH

12053-1203

$81.86

12053E

GUIDE-CHAIN,RR,RH

12053-1204

$81.86

33001A

ARM-COMP-SWING

33001-1282

$412.71

33032

SHAFT-SWING ARM

33032-1116

$34.11

33040

ADJUSTER-CHAIN

33040-1065

Unavailable

33040A

ADJUSTER-CHAIN,OUTSIDE

33040-1066

Unavailable

42036

SLEEVE,SWING ARM,L=34

42036-1067

$10.65

92015

NUT,LOCK,12MM

92015-1774

$7.71

92015A

NUT,FLANGED,6MM

92015-1078

Unavailable

92046

BEARING-NEEDLE

92046-1046

$27.88

92055

RING-O,SWING ARM

92055-1240

Unavailable

132

BOLT-FLANGED-SMALL,6X40

132G0640

$4.15

132A

BOLT-FLANGED-SMALL,6X45

132G0645

$4.15

221

SCREW-CSK-CROS,6X10

221B0610

$3.67

312

NUT 6MM

312B0600

$0.72

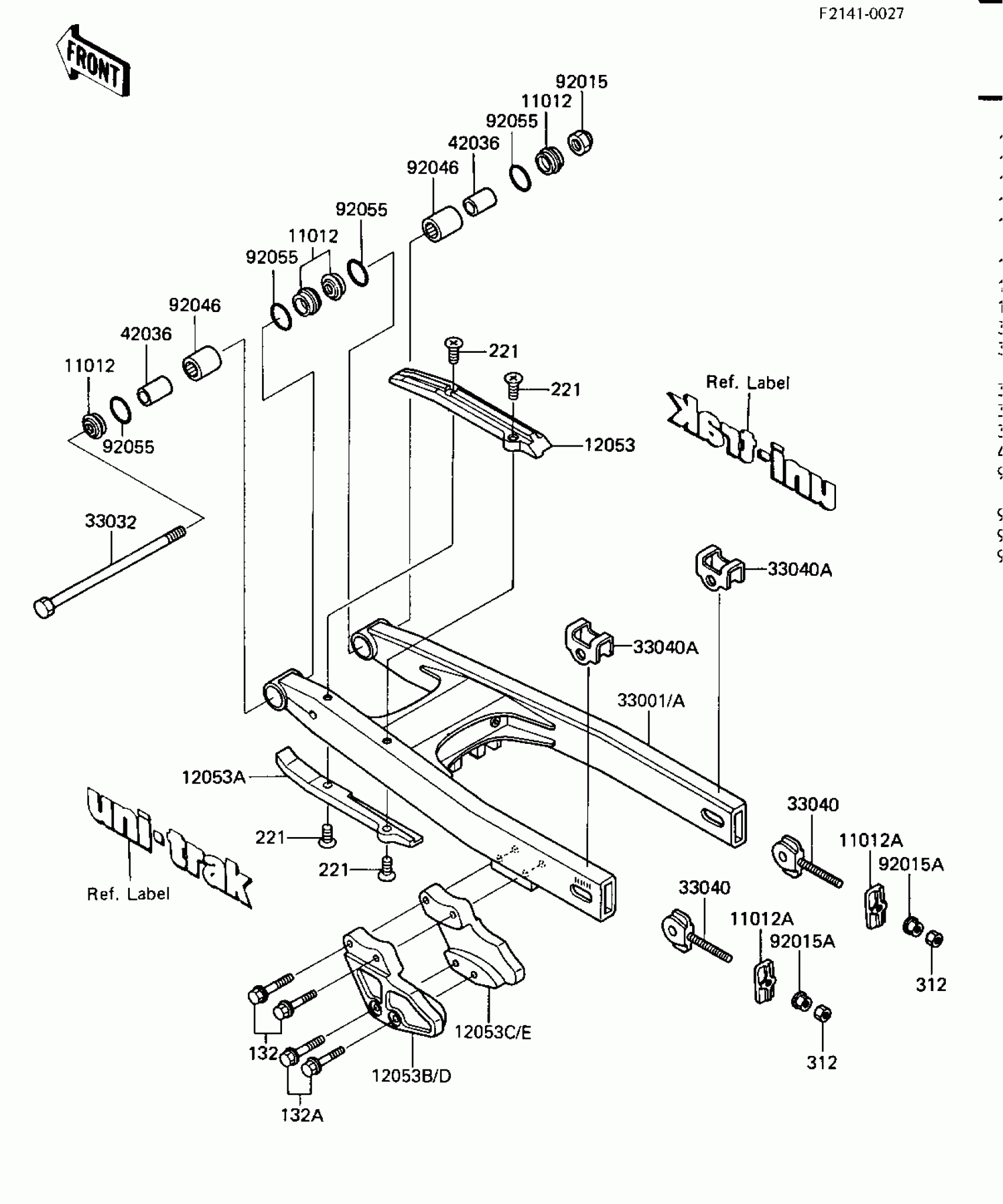

Kawasaki KX80 SWING ARM Diagram

CAP

CAP,SWING ARM

GUIDE-CHAIN,FR,UPP

GUIDE-CHAIN,FR,LWR

GUIDE-CHAIN,RR,LH

GUIDE-CHAIN,RR,RH

ARM-COMP-SWING

SHAFT-SWING ARM

ADJUSTER-CHAIN

ADJUSTER-CHAIN,OUTSIDE

SLEEVE,SWING ARM,L=34

NUT,LOCK,12MM

NUT,FLANGED,6MM

BEARING-NEEDLE

RING-O,SWING ARM

BOLT-FLANGED-SMALL,6X40

BOLT-FLANGED-SMALL,6X45

SCREW-CSK-CROS,6X10

NUT 6MM
