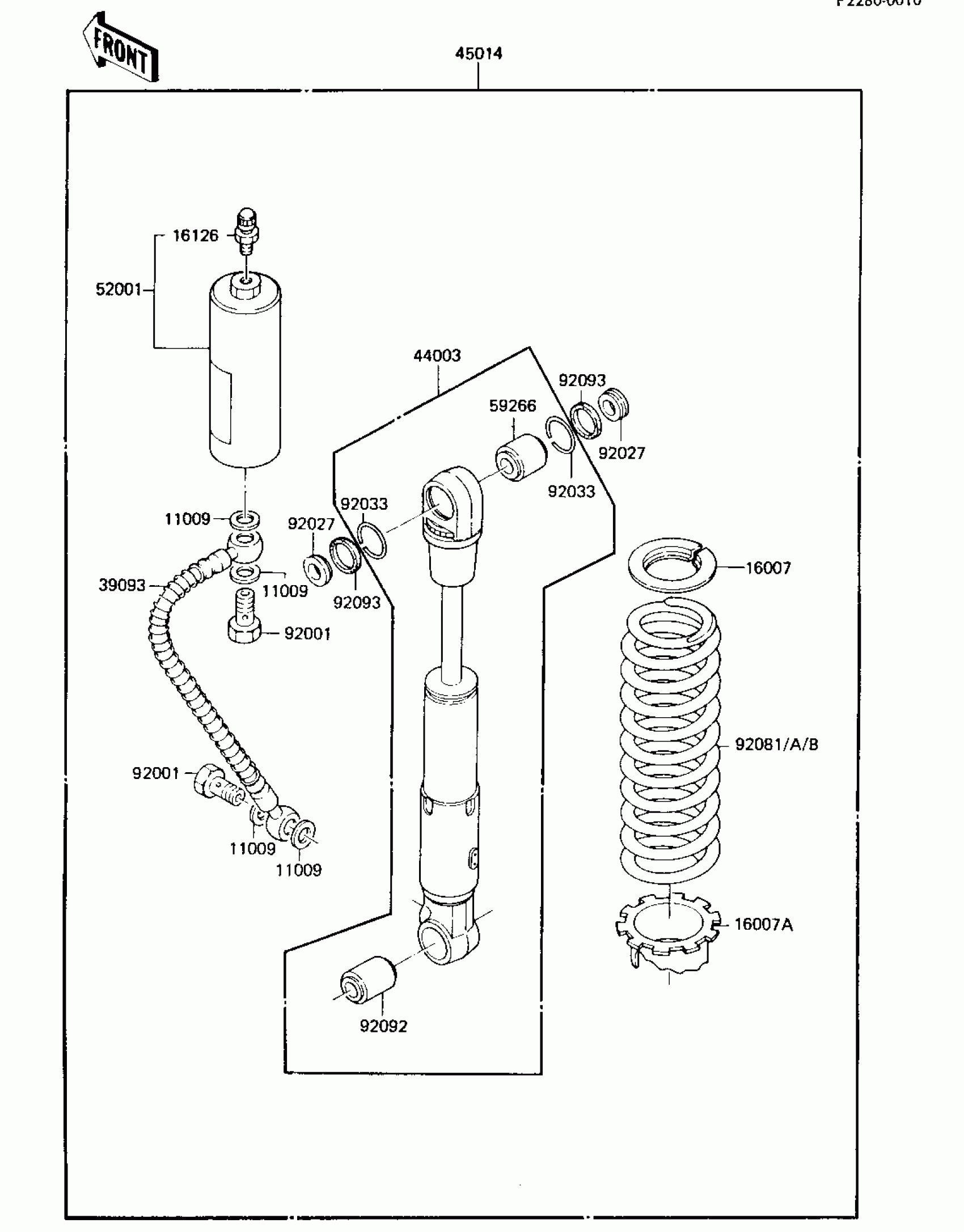

Kawasaki KX80 SHOCK ABSORBER ('84 KX80-E2) Diagram

Description

Price

11009

GASKET

44045-057

$4.86

16007

SEAT-SPRING,REAR SHOC

16007-1056

$7.54

16007A

SEAT-SPRING,REAR SHOC

16007-1057

$17.81

16126

VALVE,AIR

16126-1056

$17.64

39093

PIPE-COMP-SUSP

39093-1085

$94.38

44003

DAMPER-ASSY,REAR SHOC

44003-1488

$620.81

45014

SHOCKABSORBER

45014-1283

$823.04

52001

TANK-OIL,REAR SHOCK

52001-1053

Unavailable

59266

JOINT-BALL

59266-1014

Unavailable

92001

BOLT,BANJO

92001-1752

Unavailable

92027

COLLAR,REAR SHOCK

92027-1558

$10.10

92033

RING-SNAP

92033-1090

$5.42

92081

SPRING,SHOCKABSORBER,

92081-1815

$109.66

92081A

SPRING,SHOCKABSORBER,

92081-1534

$146.34

92081B

SPRING,SHOCKABSORBER,

92081-1535

$146.08

92092

BUSHING-RUBBER,SHOCKABSORBER

92092-1016

$29.14

92093

SEAL,REAR SHOCK

92093-1087

$11.64
