Description

Price

11009

GASKET

44045-057

$4.86

11045

BRACKET,PISTON ROD

11045-1409

Unavailable

13070

GUIDE

13070-1153

Unavailable

16126

VALVE,AIR

16126-1118

$37.15

39093

PIPE-COMP-SUSP

39093-1110

$80.45

43089

CYLINDER-SHOCKABSORBE

43089-1113

$283.26

45014A

SHOCKABSORBER

45014-1350

$756.05

46102A

ROD,SHOCKABSORBER

46102-1194

$442.62

52001

TANK-OIL

52001-1066

$255.18

92001

BOLT,BANJO

92001-1752

Unavailable

92015

NUT

92015-1577

$33.18

92015A

NUT

92015-1578

$34.44

92028

BUSHING,ROD

92028-1412

$23.04

92033

RING-SNAP,SHOCKABSORBER

92033-1211

$4.26

92055

RING-O,ROD

92055-1334

$7.34

92055A

RING-O,ROD

92055-1335

Unavailable

92055B

RING-O,ROD

92055-1336

$7.68

92081

SPRING

92081-1969

$159.91

92081A

SPRING

92081-1975

$170.86

92081B

SPRING

92081-1977

$187.34

92092

BUSHING-RUBBER,SHOCKABSORBER

92092-1016

$29.14

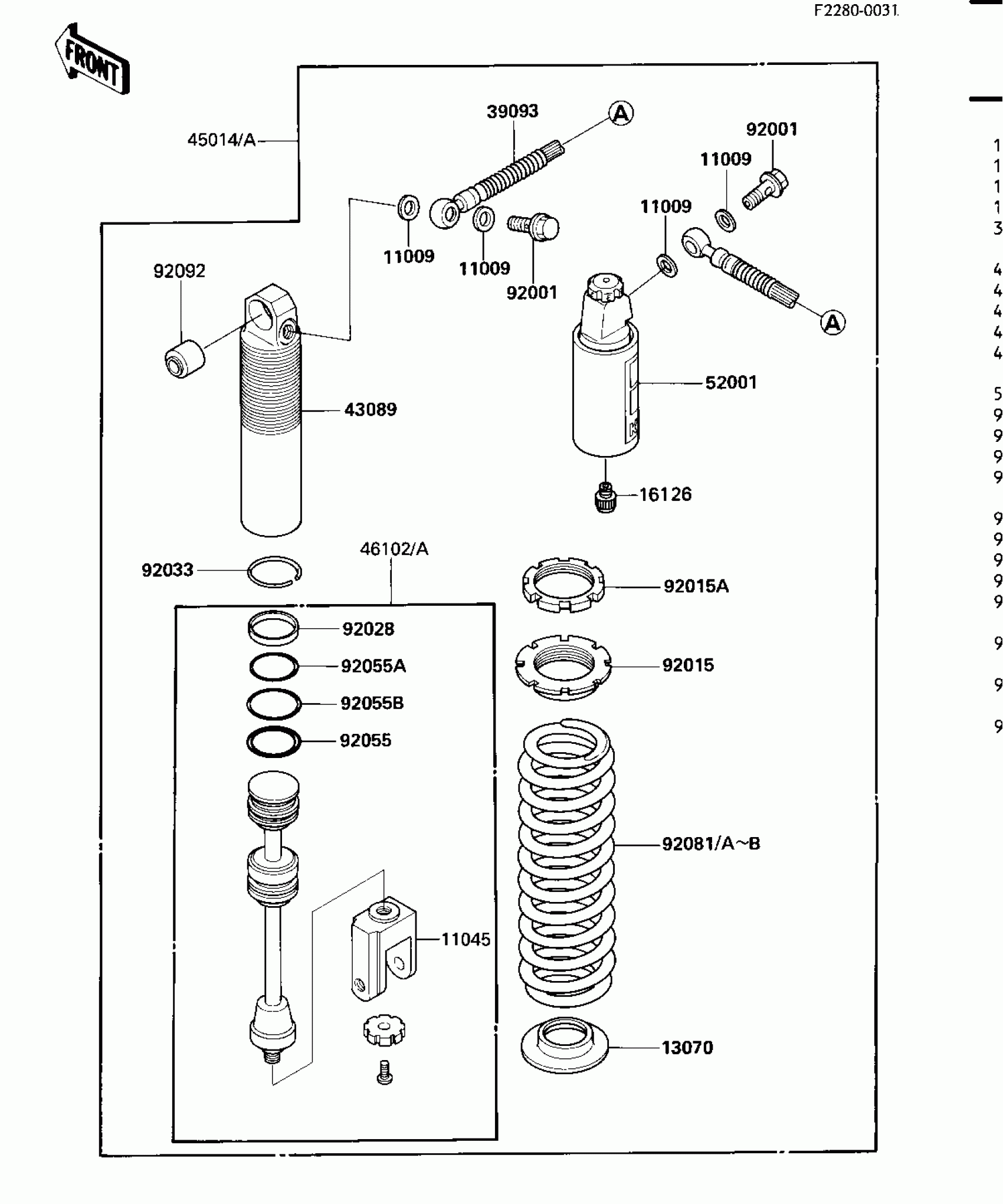

Kawasaki KX80 SHOCK ABSORBER Diagram

GASKET

BRACKET,PISTON ROD

GUIDE

VALVE,AIR

PIPE-COMP-SUSP

CYLINDER-SHOCKABSORBE

SHOCKABSORBER

ROD,SHOCKABSORBER

TANK-OIL

BOLT,BANJO

NUT

NUT

BUSHING,ROD

RING-SNAP,SHOCKABSORBER

RING-O,ROD

RING-O,ROD

RING-O,ROD

SPRING

SPRING

SPRING

BUSHING-RUBBER,SHOCKABSORBER
