Description

Price

1

BOLT-UPSET

112G0645

$0.48

1

BOLT-UPSET,6X40

112G0640

$2.22

2

WASHER PLAIN 6MM

411B0600

$2.84

3

SEAT-ASSY

53001-1020

$357.20

4

DAMPER

92075-1054

$5.00

5

NUT,LOCK,6MM

92019-008

$4.26

6

SCREW PAN HEAD 6X25

220B0625

$2.60

7

WASHER SPRING 6MM

461F0600

$0.69

8

COVER,SIDE,L.H,L.GREN

36001-1029-6W

Unavailable

9

WASHER PLAIN

92022-024

$3.65

10

DAMPER

92075-1067

$4.69

11

SCREW PAN HEAD 6X25

220B0625

$2.60

12

WASHER SPRING 6MM

461F0600

$0.69

13

COVER,SIDE,R.H,L.GREN

36001-1030-6W

Unavailable

14

WASHER PLAIN

92022-024

$3.65

15

DAMPER

92075-1067

$4.69

16

SCREW-PAN-CROS,6X20,WHITE

220B0620

$5.82

17

COVER,SIDE,LH,D GREEN

36001-1089-D4

Unavailable

18

WASHER SPRING 6MM

461F0600

$0.69

19

WASHER PLAIN

92022-024

$3.65

20

WASHER,6.5X20X1.6

92022-125

$1.40

21

COVER,SIDE,RH,D.GREEN

36001-1090-D4

Unavailable

22

BOLT,6X30

92001-1319

$3.21

23

DAMPER

92075-1244

$4.78

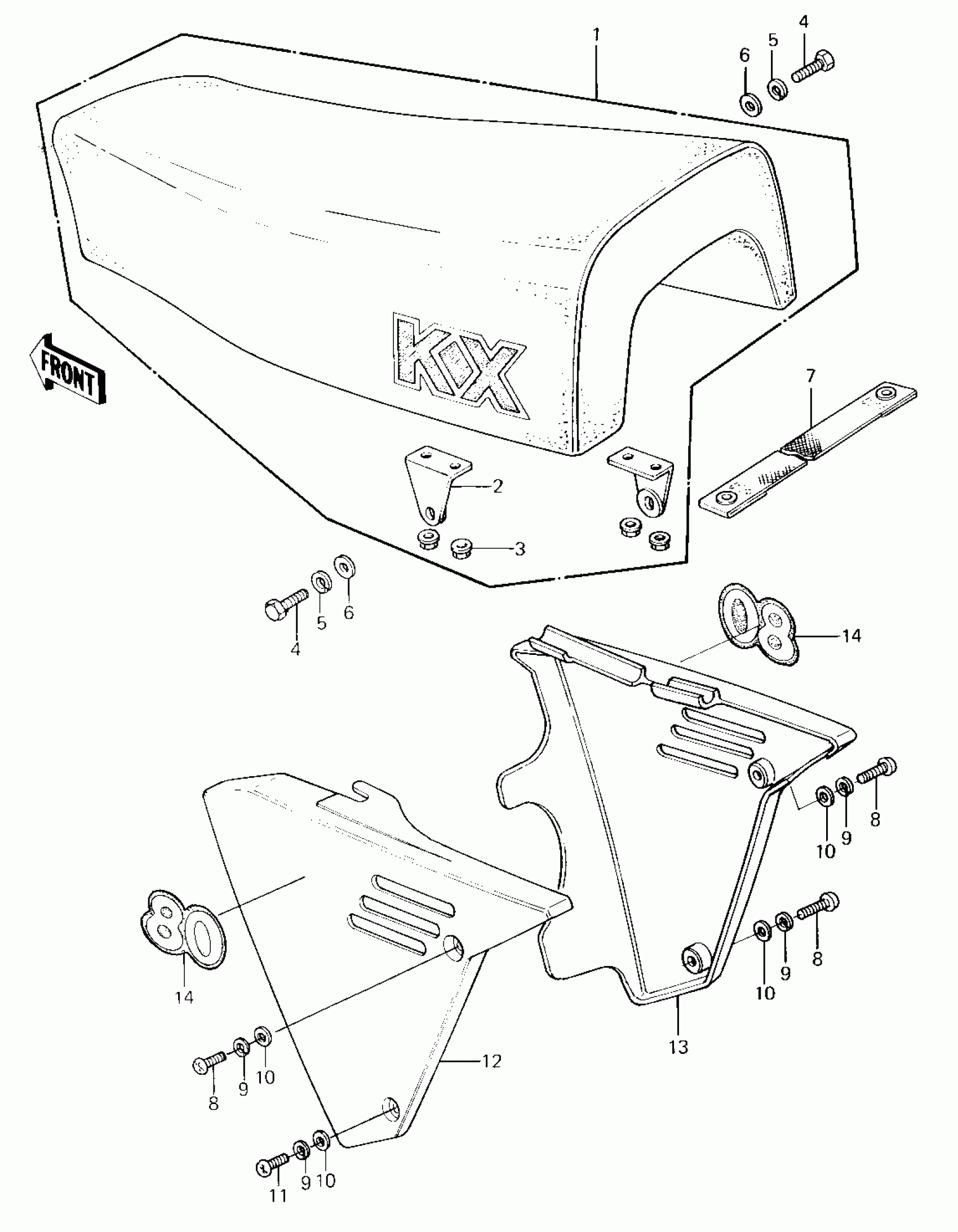

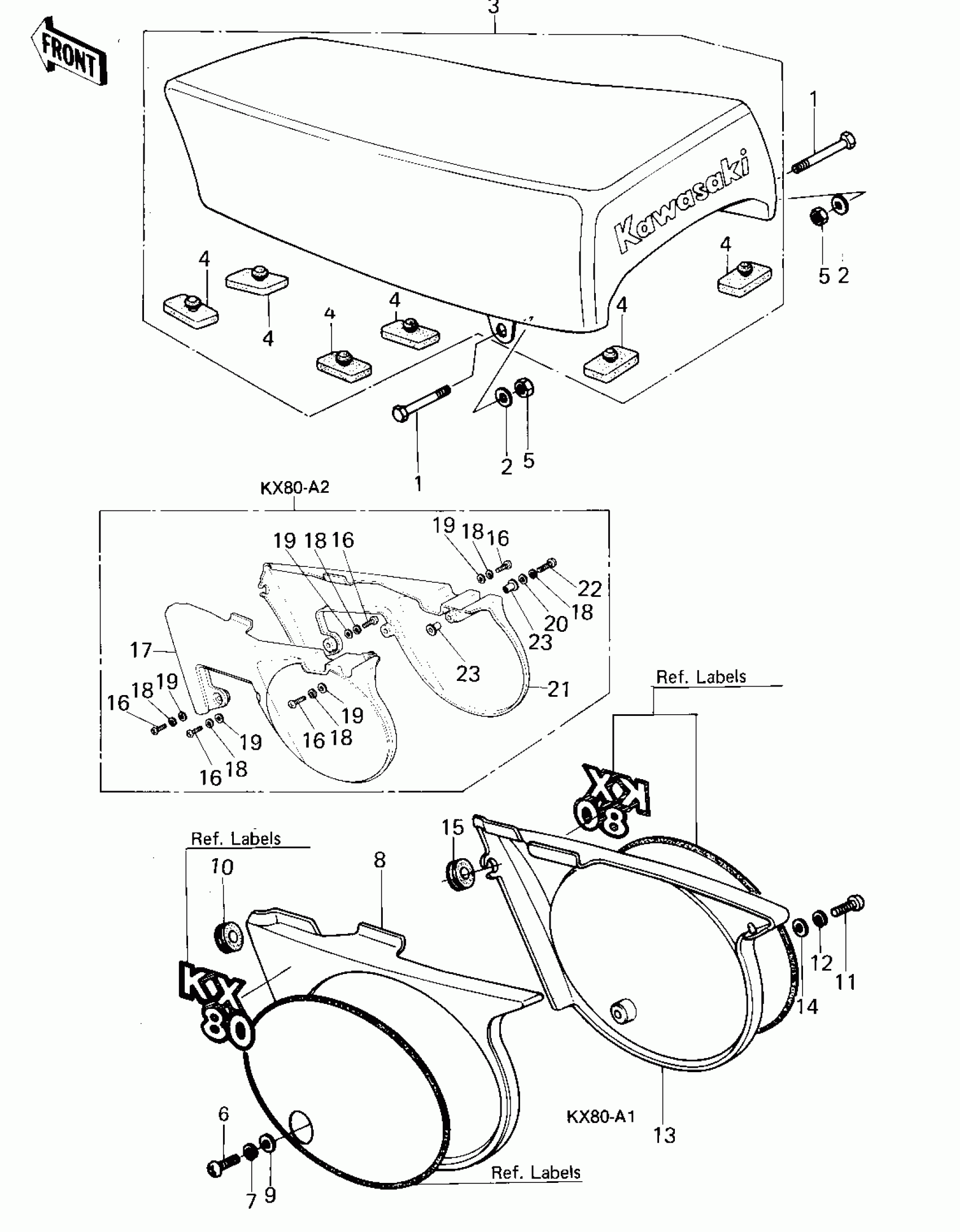

Kawasaki KX80 SEAT/SIDE COVERS Diagram

BOLT-UPSET

BOLT-UPSET,6X40

WASHER PLAIN 6MM

SEAT-ASSY

DAMPER

NUT,LOCK,6MM

SCREW PAN HEAD 6X25

WASHER SPRING 6MM

COVER,SIDE,L.H,L.GREN

WASHER PLAIN

DAMPER

SCREW PAN HEAD 6X25

WASHER SPRING 6MM

COVER,SIDE,R.H,L.GREN

WASHER PLAIN

DAMPER

SCREW-PAN-CROS,6X20,WHITE

COVER,SIDE,LH,D GREEN

WASHER SPRING 6MM

WASHER PLAIN

WASHER,6.5X20X1.6

COVER,SIDE,RH,D.GREEN

BOLT,6X30

DAMPER
