Description

Price

1

BOLT,12X48

92001-1364

$7.33

2

COLLAR

92027-1304

$12.14

3

ARM,SUSPENSION

39007-1004

$65.60

4

BOLT,14X56

92001-1363

Unavailable

5

JOINT-BALL

59266-1051

Unavailable

6

NUT-LOCK,12MM

92019-009

$7.29

7

WASHER-PLAIN-SMALL,12MM

410B1200

$0.70

8

WASHER-PLAIN-SMALL,14MM

410B1400

$2.01

9

NUT-LOCK,14MM

92019-011

Unavailable

9

NUT-LOCK,14MM

92019-011

Unavailable

10

BUSHING

92028-1118

$143.84

11

SEAL

92093-1045

$16.29

12

CAP,SUSPENSION ARM

11012-1117

Unavailable

13

ROD,UNI TRAK

46102-1023

$57.02

14

BOOT,UNITRAK

49006-1049

Unavailable

15

JOINT,BALL

59266-1005

$88.01

16

BOLT,10X34

92001-1366

$3.28

17

NUT 10MM

92016-027

Unavailable

18

BOLT,FLANGED,10X44

92001-1299

Unavailable

18

BOLT,FLANGED,10X44

92001-1299

Unavailable

19

NUT,10MM

92015-1429

$6.88

20

SHOCK ABSBR RR

45014-1125

$572.83

21

SPRING,REAR SHOCK STD

92081-1350

$84.32

21

SPRING,RR SHOCK,OPTN

92081-1339

$120.95

21

OIL SEAL,BALL JOINT

92049-1072

Unavailable

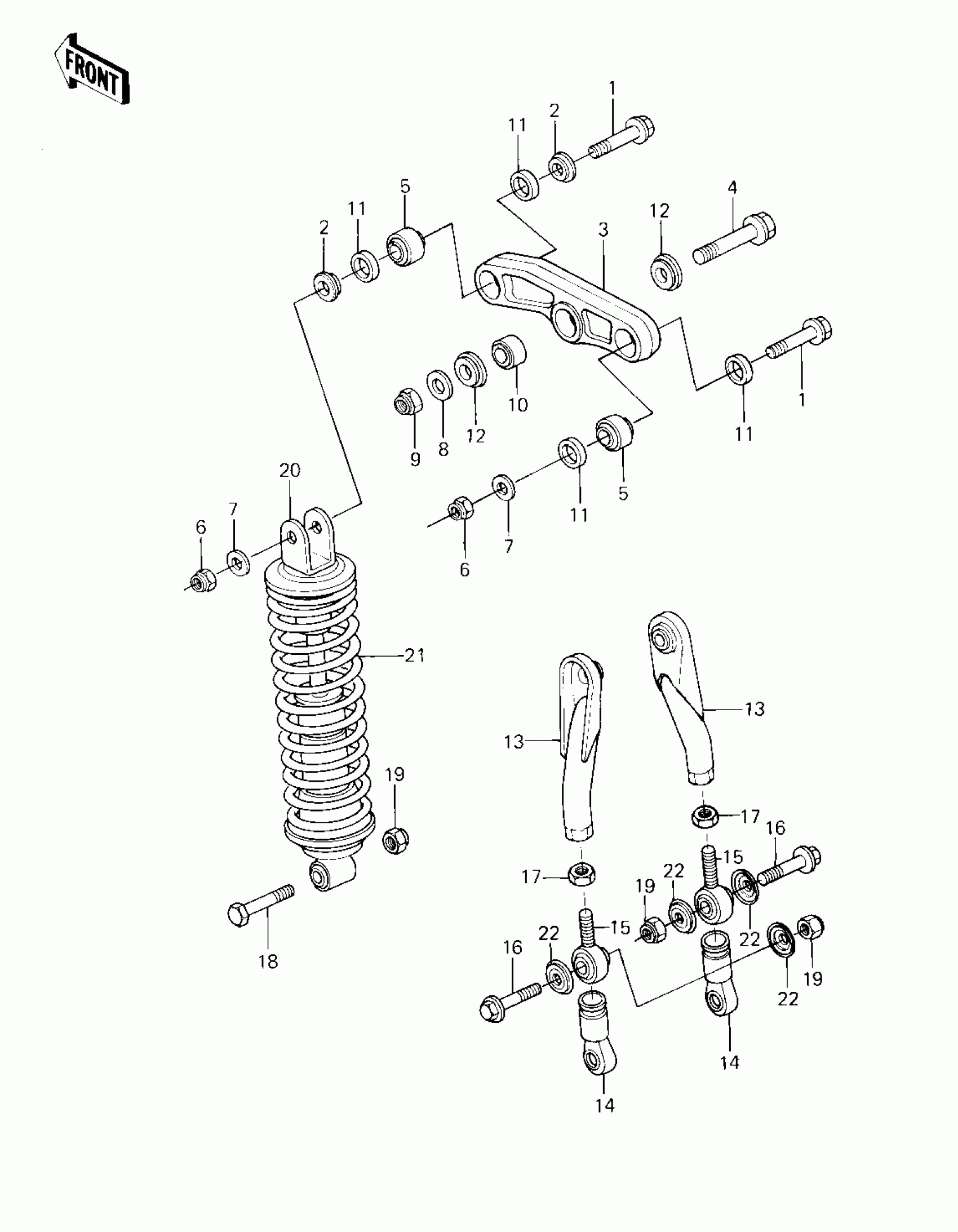

Kawasaki KX80 REAR SUSPENSION/SHOCK ABSORBER Diagram

BOLT,12X48

COLLAR

ARM,SUSPENSION

BOLT,14X56

JOINT-BALL

NUT-LOCK,12MM

WASHER-PLAIN-SMALL,12MM

WASHER-PLAIN-SMALL,14MM

NUT-LOCK,14MM

NUT-LOCK,14MM

BUSHING

SEAL

CAP,SUSPENSION ARM

ROD,UNI TRAK

BOOT,UNITRAK

JOINT,BALL

BOLT,10X34

NUT 10MM

BOLT,FLANGED,10X44

BOLT,FLANGED,10X44

NUT,10MM

SHOCK ABSBR RR

SPRING,REAR SHOCK STD

SPRING,RR SHOCK,OPTN

OIL SEAL,BALL JOINT
