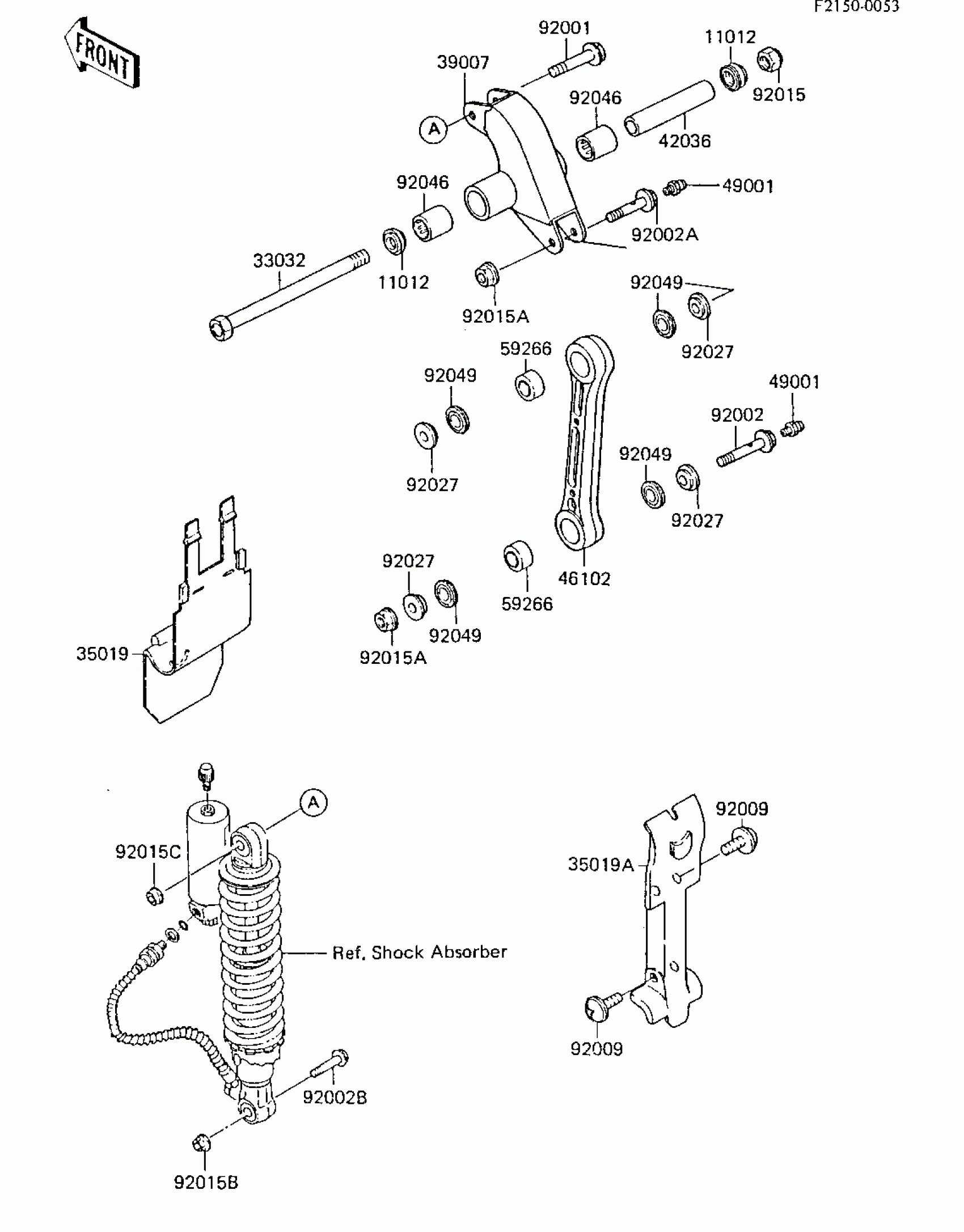

Kawasaki KX80 REAR SUSPENSION ('85 KX80-E3) Diagram

Description

Price

11012

CAP

11012-1263

$16.53

33032

SHAFT-SUSPENSION ARM,L=168

33032-1032

$25.44

35019

FLAP,ARM-SUSP

35019-1054

Unavailable

35019A

FLAP,ROD

35019-1139

Unavailable

39007

ARM-SUSP,UNI-TRAK

39007-1063

$108.33

42036

SLEEVE,SUSPENSION ARM,L=86

42036-1068

$26.04

46102

ROD,SUSPENSION

46102-1124

$129.54

49001

NIPPLE-GREASE

49001-1051

$3.02

59266

JOINT-BALL,SUSPENSION

59266-1054

$115.92

92001

BOLT,FLANGED,10X42

92001-1711

$6.40

92002

BOLT,ROD,LWR,12MM

92002-1366

$29.28

92002A

BOLT,ROD,UPP,12MM

92002-1367

$26.09

92002B

BOLT,FLANGED,10X41

92002-1385

$9.38

92009

SCREW,6X10,WHITE

92009-1286

$4.31

92015

NUT,LOCK,12MM

92015-1774

$7.71

92015A

NUT,FLANGED,12MM

92015-1156

Unavailable

92015B

NUT,FLANGED,10MM

92015-1415

$4.69

92015C

NUT,LOCK,FLANGED,10MM

92015-1338

$10.28

92027

COLLAR,ROD

92027-1523

Unavailable

92046

BEARING-NEEDLE,ARM-SUSP

92046-1050

Unavailable

92049

SEAL-OIL,ROD

92049-1099

Unavailable
