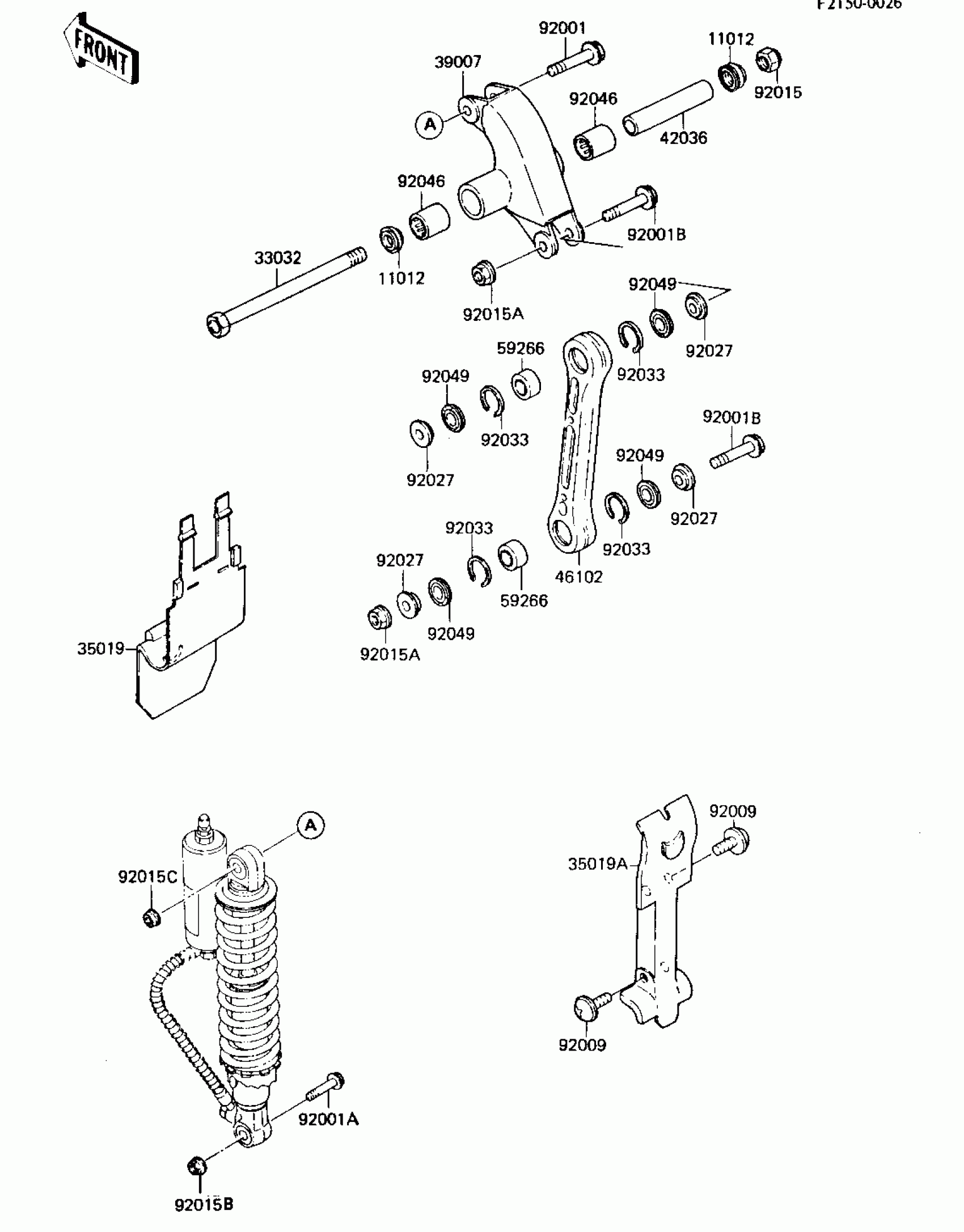

Kawasaki KX80 REAR SUSPENSION ('84 KX80-E2) Diagram

Description

Price

11012

CAP

11012-1263

$16.53

33032

SHAFT-SUSPENSION ARM,L=168

33032-1032

$25.44

35019

FLAP,ARM-SUSP

35019-1054

Unavailable

35019A

FLAP,ROD

35019-1110

$26.81

39007

ARM-SUSP,UNI-TRAK

39007-1020

$55.95

42036

SLEEVE,SUSPENSION ARM,L=86

42036-1068

$26.04

46102

ROD,SUSPENSION

46102-1055

$191.81

59266

JOINT-BALL,ROD

59266-1012

$115.92

92001

BOLT,FLANGED,10X42

92001-1711

$6.40

92001A

BOLT,FLANGED,10X40.5

92001-1712

$4.71

92001B

BOLT,FLANGED,12X48

92001-1736

Unavailable

92009

SCREW,6X10,WHITE

92009-1286

$4.31

92015

NUT,LOCK,12MM

92015-1774

$7.71

92015A

NUT,FLANGED,12MM

92015-1156

Unavailable

92015B

NUT,FLANGED,10MM

92015-1415

$4.69

92015C

NUT,LOCK,FLANGED,10MM

92015-1338

$10.28

92027

COLLAR,ROD

92027-1523

Unavailable

92033

RING-SNAP,22.3MM

92033-1071

$7.95

92046

BEARING-NEEDLE,ARM-SUSP

92046-1050

Unavailable

94029

SEAL-OIL,ROD

92049-1099

Unavailable
