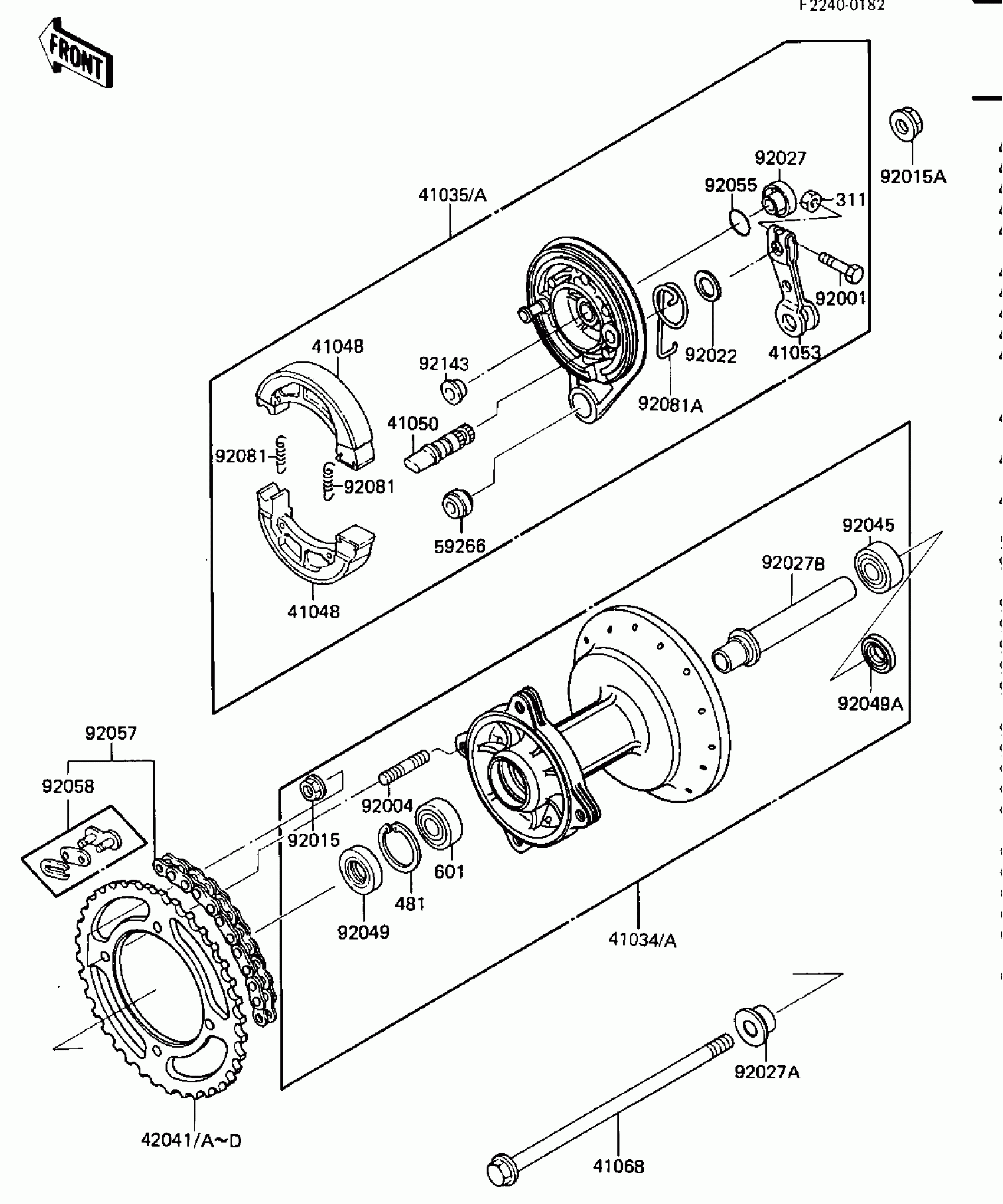

Kawasaki KX80 REAR HUB/BRAKE/CHAIN Diagram

#

Description
Price

1

DRUM-ASSY,REAR BRAKE

41034-5003

$267.98

1

DRUM-ASSY,REAR BRAKE

41034-5003

$267.98

2

CIRCLIP-TYPE-C,32MM

481J3200

$2.68

3

BEARING-BALL,#6201LUC3/2A

601B6201U

$19.40

4

BEARING-BALL,#6203C3

601B6203

$14.12

5

STUD,8X15

92004-1014

Unavailable

5

STUD,8X17

92004-1015

$4.99

6

NUT,FLANGED,8MM

92015-1022

$0.48

7

COLLAR,REAR BRAKE DRM

92027-1089

$40.53

8

OIL SEAL,24X40X8

92049-1012

Unavailable

9

PANEL-ASY,RR BRK

41035-1032

$178.41

9

PANEL-ASY,RR BRK

41035-1032

$178.41

10

SHOE,BRAKE

41048-1021

$29.61

11

SPRING,BRAKE SHOE

92081-1766

$8.03

12

CAM,BRAKE,REAR

41050-1012

Unavailable

13

LEVER,BRAKE CAM,REAR

41053-1010

$42.83

14

NUT,6MM

41072-007

$3.92

15

INDICATOR,BRAKE SHOE

41085-1002

Unavailable

16

O RING,12MM

670B2012

$3.23

17

BOLT,HEX HEAD,6X30

92001-1135

Unavailable

18

AXLE,REAR

41068-1037

$71.52

18

AXLE,REAR,12X211

41068-1036

$54.61

19

NUT,FLANGED,12MM

92015-1156

Unavailable

20

COLLAR,REAR AXLE,R.H.

92027-1090

$13.74

21

COLLAR,REAR AXLE,L.H.

92027-1091

$18.34

22

REAR SPROCKET,48T

42041-1016

$93.82

22

REAR SPROCKET,50T

42041-1034

$93.82

22

REAR SPROCKET,52T

42041-1035

$93.82

23

CHAIN ASSY,EK420SHG

92057-1093

$80.59

23

CHAIN ASSY,EK420SHG

92057-1097

$90.92

24

JOINT,CHAIN

92058-1016

$8.22

25

WASHER

92022-257

Unavailable

26

COLLAR,REAR BRAKE DRM

92027-1246

$28.53

27

COLLAR,REAR AXLE

92027-1247

$7.80
