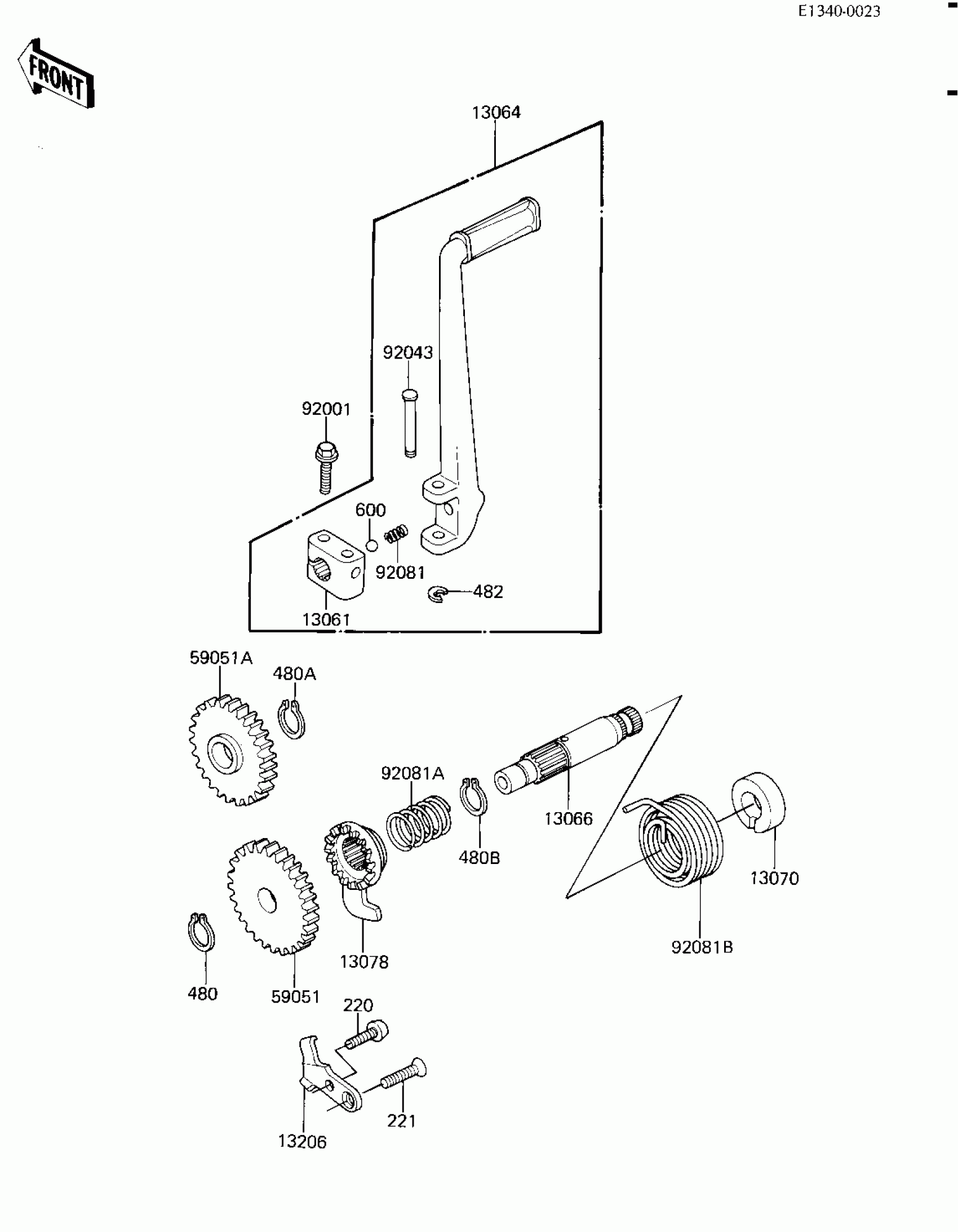

Kawasaki KX80 KICKSTARTER MECHANISM ('82 KX80-C2) Diagram

Description

Price

13061

BOSS,KICK PEDAL

13061-1021

Unavailable

13064

LEVER-ASSY-KICK

13064-1034

Unavailable

13066

SHAFT-KICK

13066-1027

Unavailable

13070

GUIDE,KICK SPRING

13070-1034

$9.50

13078

RATCHET

13078-1004

$58.99

13206

GUIDE-KICK,RATCHET

13206-1008

Unavailable

59051

GEAR-SPUR,32T

59051-1026

$51.72

59051A

GEAR-SPUR,30T

59051-1027

$65.22

92001

BOLT,FLANGED,6X22

92001-1352

$4.31

92043

PIN,KICK PEDAL

92043-1050

$12.18

92081

SPRING,KICK PEDAL

92081-020

$4.26

92081A

SPRING,RATCHET

92081-122

$8.79

92081B

SPRING,RETURN

92081-1434

$16.93

220

SCREW-PAN-CROS,6X16

220B0616

$2.84

221

SCREW-CSK-CROS,6X18

221B0618

$3.41

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.62

480A

CIRCLIP-TYPE-C,15MM

480J1500

$2.31

480B

CIRCLIP-TYPE-C,16MM

480J1600

$4.31

482

CIRCLIP 5MM

482K5000

Unavailable

600

BALL-STEEL,1/4

600A0800

$0.62
