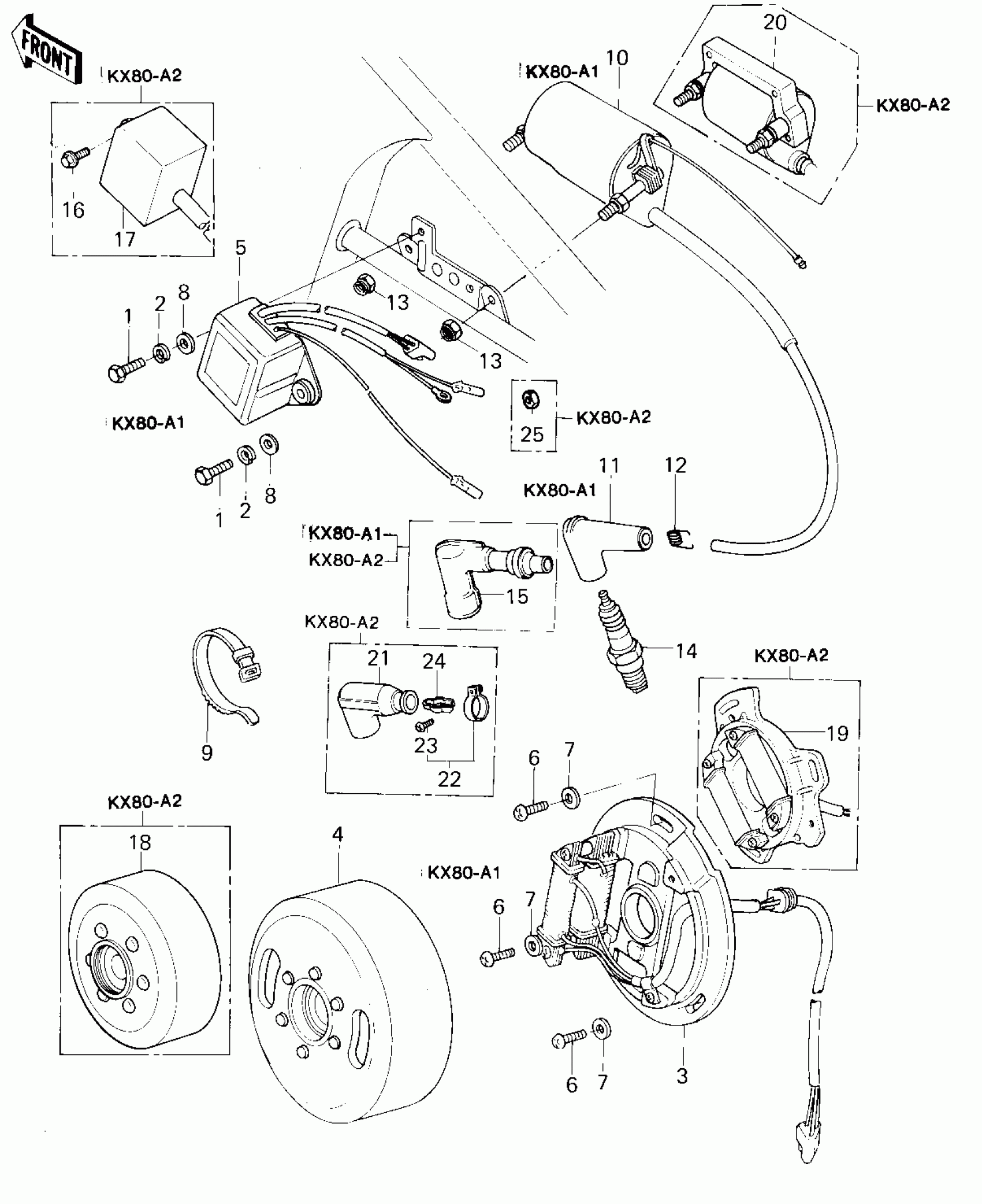

Kawasaki KX80 IGNITION Diagram
#
Description
Price
1
BOLT-UPSET,6X20
112G0620
Unavailable
2
WASHER SPRING 6MM
461F0600
Unavailable
3
STATOR ASSY,MAGNETO
21003-1018
Unavailable
4
FLYWHEEL,MAGNETO
21050-1010
Unavailable
5
IGNITER
21119-1007
Unavailable
6
SCREW-PAN-CROS
220B0514
Unavailable
7
WASHER PLAIN 5MM
410B0500
Unavailable
8
WASHER PLAIN
92022-024
Unavailable
9
BAND,L=123
92072-030
Unavailable
10
COIL,IGNITION
21121-1020
Unavailable
11
CAP-SPARK PLUG
21130-009
Unavailable
12
TERMINAL,SPARK PLUG CAP
92101-001
Unavailable
13
NUT,LOCK,6MM
92019-008
Unavailable
14
SPARK PLUG B8HS
B8HS
Unavailable
14
SPARK PLUG B8ES
B8ES
Unavailable
15
CAP-ASSY-PLUG
21160-005
Unavailable
16
BOLT-FLANGED,6X12
130G0612
Unavailable
17
IGNITER
21119-1016
Unavailable
18
ROTOR,MAGNETO
21007-1018
Unavailable
19
STATOR
21003-1239
Unavailable
20
COIL,IGNITION
21121-1060
Unavailable
21
CAP-SPARK PLUG
21130-1006
Unavailable
22
CLAMP
92037-1173
Unavailable
23
SCREW-PAN-CROS
220B0310
Unavailable
24
TERMINAL,PLUG CAP
21169-001
Unavailable
25
NUT 6MM
311B0600
Unavailable
