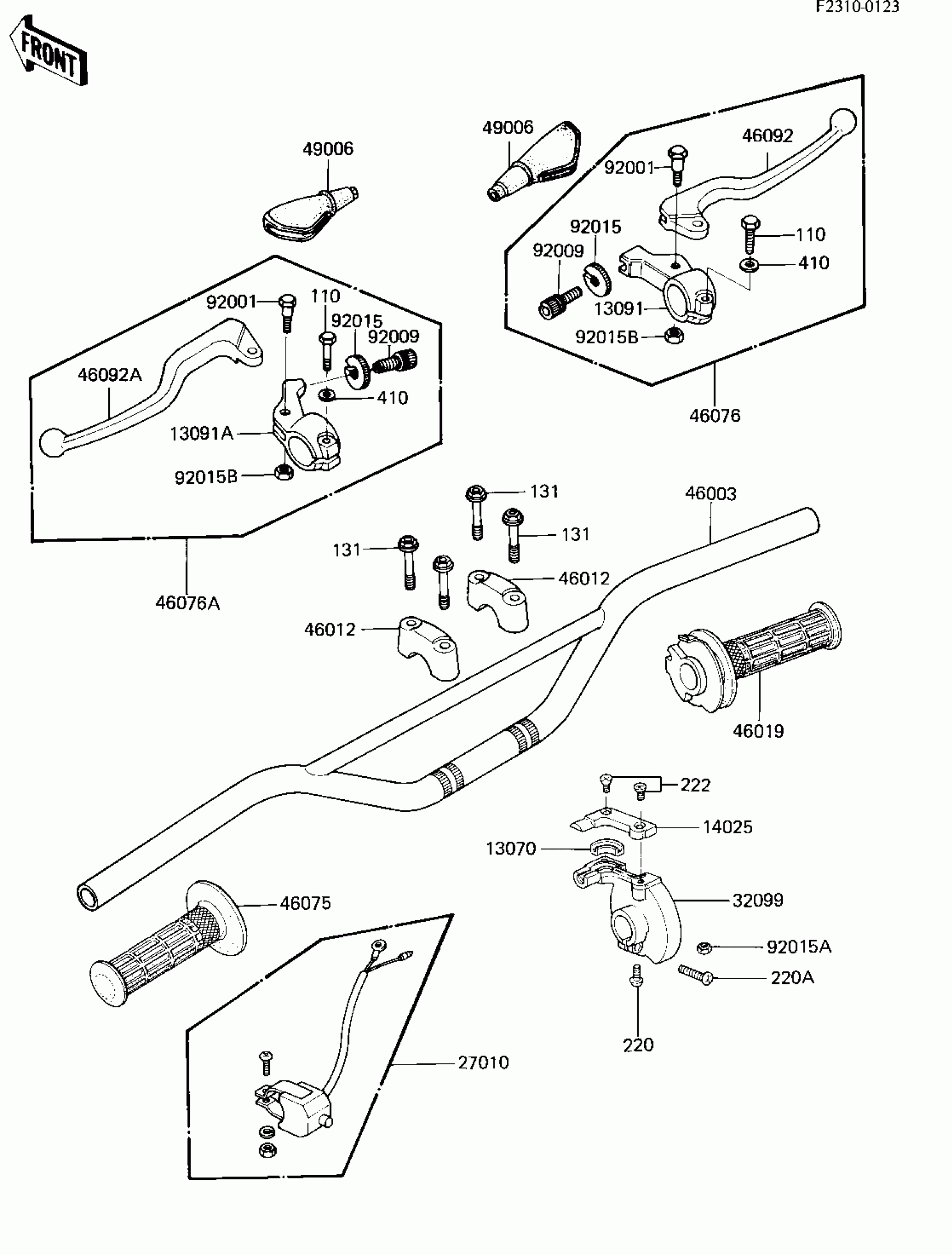

Kawasaki KX80 HANDLEBAR ('82 KX80-C2) Diagram
#
Description
Price
13070
GUIDE,THROTTLE PEACE
13070-1053
Unavailable
13091
HOLDER,BRAKE LEVER,FR,F.BLACK
46060-011-21
Unavailable
13091A
HOLDER,CLUTCH LEVER,F.BLACK
46094-015-21
$37.74
14025
COVER,THROTTLE UPP,R
14025-1392
Unavailable
27010
SWITCH,ASSY,ENG STOP
27010-1018
Unavailable
32099
CASE,THROTTLE LWR,RH
32099-1024
$41.86
46003
HANDLEBAR
46003-1092
$83.53
46012
HOLDER-HANDLE,UPP
46012-008
$37.74
46019
GRIP-ASSY,THROTTLE
46019-1020
Unavailable
46075
GRIP,LH
46075-1024
$25.66
46076
LEVER ASSY,FRONT BRK
46076-1010
Unavailable
46076A
LEVER-ASSY-GRIP,LH
46076-1011
$55.45
46092
LEVER-GRIP,FRONT BRAKE
46092-1014
Unavailable
46092A
LEVER-GRIP,CLUTCH
46092-1015
Unavailable
49006
BOOT,LEVER HOLDER
49006-1017
$18.72
92001
BOLT,5X22
92007-046
$7.62
92009
SCREW,CABLE ADJUST,8MM
46055-003
$16.33
92015
NUT,CABLE ADJUST LOCK,8MM
46056-005
$8.86
92015A
NUT,LOCK,4MM
92019-010
$3.55
92015B
NUT,LOCK,5MM
92019-014
$4.50
110
BOLT HEX HEAD 6X25
110N0625
$5.46
131
BOLT-FLANGED,8X35
130G0835
$1.42
220
SCREW PAN HEAD 4X8
220B0408
$0.67
220A
SCREW-PAN-CROS
220B0520
$0.68
222
SCREW-CSK-RD-CROS,4X12
222E0412A
$2.63
410
WASHER,PLAIN,6MM
410D0600
$0.77
