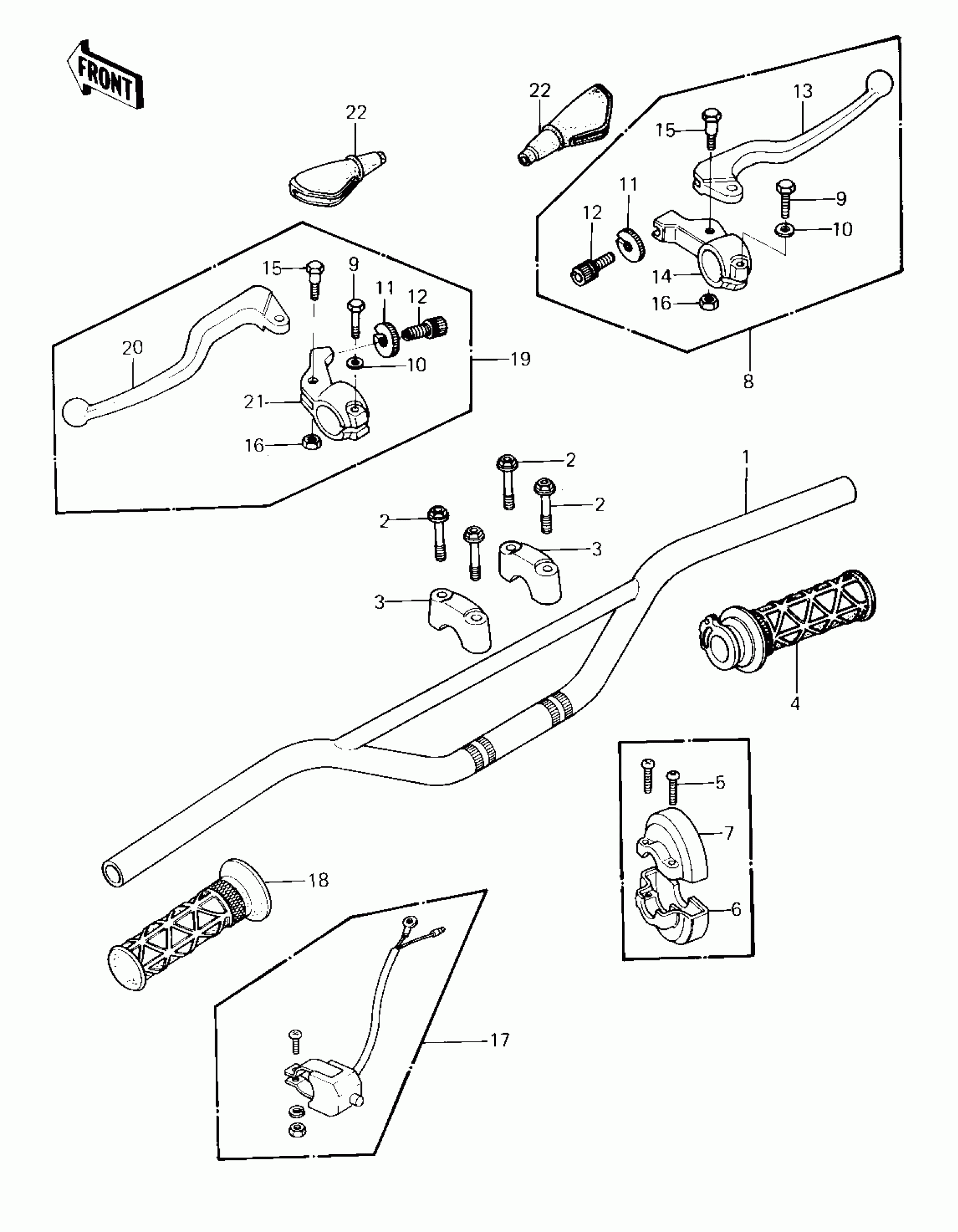

Kawasaki KX80 HANDLEBAR ('81 KX80-C1) Diagram

#

Description
Price

1

HANDLEBAR,F.BLACK

46003-1082

$93.34

2

BOLT-FLANGED,8X35

130G0835

$1.42

3

HOLDER-HANDLE,UPP

46012-008

$37.74

4

GRIP-ASSY

46019-1012

Unavailable

5

SCREW-PAN-CROS

220B0520

$0.68

6

HOUSING CONTROL,R.H.

32099-1011

Unavailable

7

CASE,R.H,GRIP,UPPER

32099-1014

Unavailable

8

LEVER ASSY,FRONT BRK

46076-1010

Unavailable

9

BOLT HEX HEAD 6X25

110N0625

$5.46

10

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

11

SCREW,CABLE ADJUST,8MM

46055-003

$16.33

12

NUT,CABLE ADJUST LOCK,8MM

46056-005

$8.86

13

LEVER-GRIP,FRONT BRAKE

46092-1014

Unavailable

14

HOLDER,BRAKE LEVER,FR,F.BLACK

46060-011-21

Unavailable

15

BOLT,5X22

92007-046

$7.62

16

NUT,LOCK,5MM

92019-014

$4.50

17

SWITCH,ASSY,ENG STOP

27010-1018

Unavailable

18

GRIP

46075-1015

Unavailable

19

LEVER-ASSY-GRIP,LH

46076-1011

$55.45

20

LEVER-GRIP,CLUTCH

46092-1015

Unavailable

21

HOLDER,CLUTCH LEVER,F.BLACK

46094-015-21

$37.74

22

BOOT,LEVER HOLDER

49006-1017

$18.72
