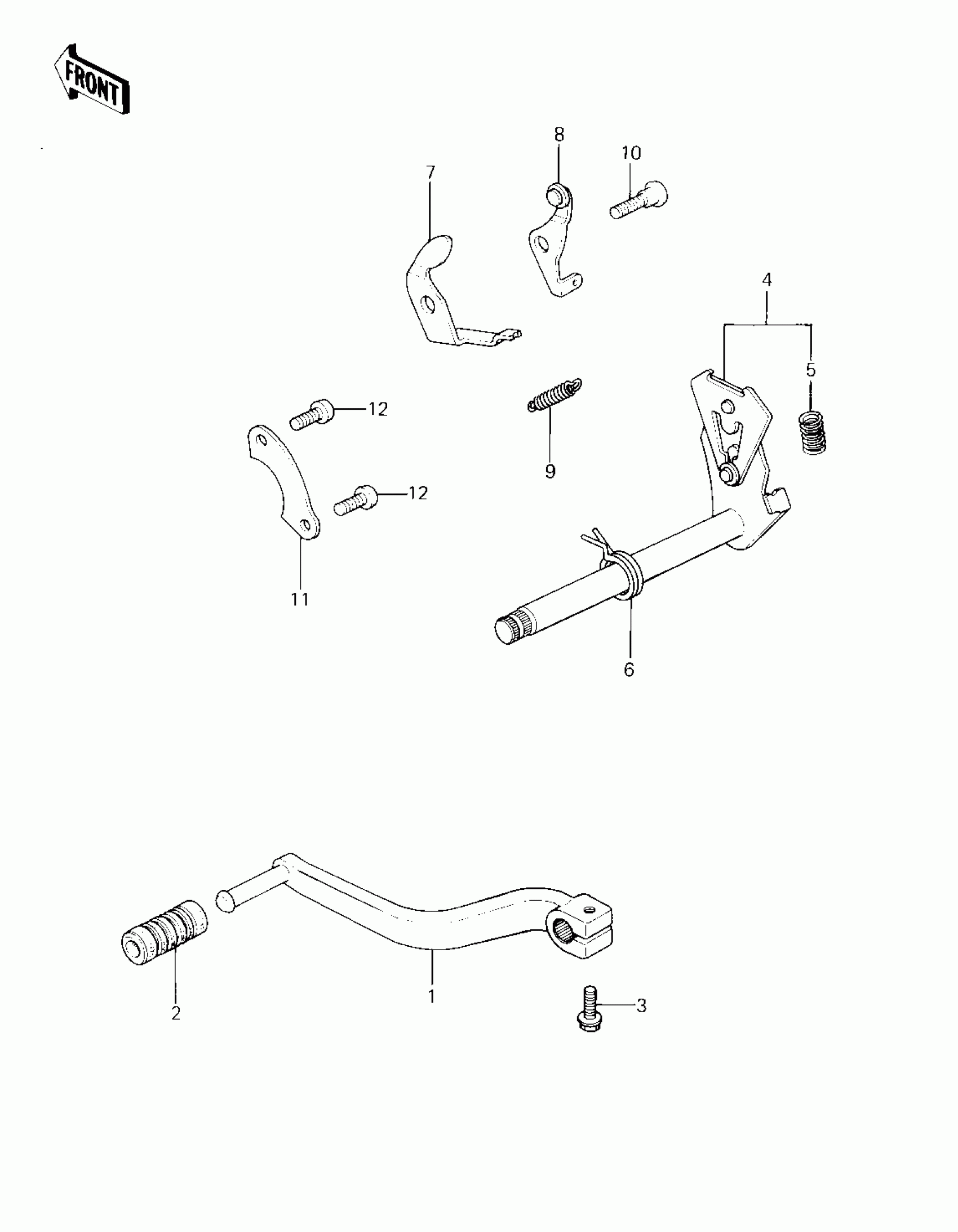

Kawasaki KX80 GEAR CHANGE MECHANISM ('81 KX80-C1) Diagram

#

Description

Price

1

PEDAL,GEAR CHANGE

13156-1049

Unavailable

2

DAMPER,CHANGE PEDAL

92160-1108

$8.10

3

BOLT,FLANGED,6X22

92001-1352

$4.31

4

LEVER-COMP-CHANGE SHAFT

13161-1108

Unavailable

5

SPRING,CHANGE LEVER

92081-1275

$4.26

6

SPRING,TENSION

92081-1129

$9.43

7

LEVER,GEAR SET

13168-1069

$9.07

8

LEVER-COMP,CHANGE DRUM

13236-1026

$8.40

9

SPRING,CHANGE LEVER

92081-1109

$4.96

10

SCREW,CHANGE LEVER

92009-1102

$5.52

11

PLATE,CHANGE DRUM POSITION

13169-1309

$9.24

12

SCREW-PAN-CROS,6X14

220B0614

$1.48
