Description

Price

1

TANK-FUEL,L.GREEN

51001-1056-6W

Unavailable

2

TUBE,5X5.6X280

92059-1109

Unavailable

3

CAP-TANK,FUEL

51049-1006

$33.34

4

GASKET,FUEL TANK CAP

11009-1452

$22.59

5

BOLT 6X90

110G0690

$4.90

6

DAMPER,FUEL TANK FITT

92075-1220

Unavailable

7

BOLT,6X10

112G0610

$0.58

8

WASHER SPRING 6MM

461F0600

$0.69

9

BRACKET,FUEL TANK

32052-1051

Unavailable

10

NUT,LOCK,6MM

92019-008

$4.26

12

DAMPER,FUEL TANK

92075-1151

$19.66

13

BAND,FUEL TANK

92072-1013

Unavailable

14

BAND,FUEL TANK

92072-1056

$10.04

15

TAP-ASSY,FUEL

51023-1115

$50.23

16

WASHER PLAIN 6MM

411B0600

$2.84

17

WASHER SPRING 6MM

461F0600

$0.69

18

BOLT-UPSET,6X16

112G0616

$1.10

19

PATTERN A TANK LH

56044-1231

Unavailable

20

PATTERN A TANK RH

56044-1232

$30.12

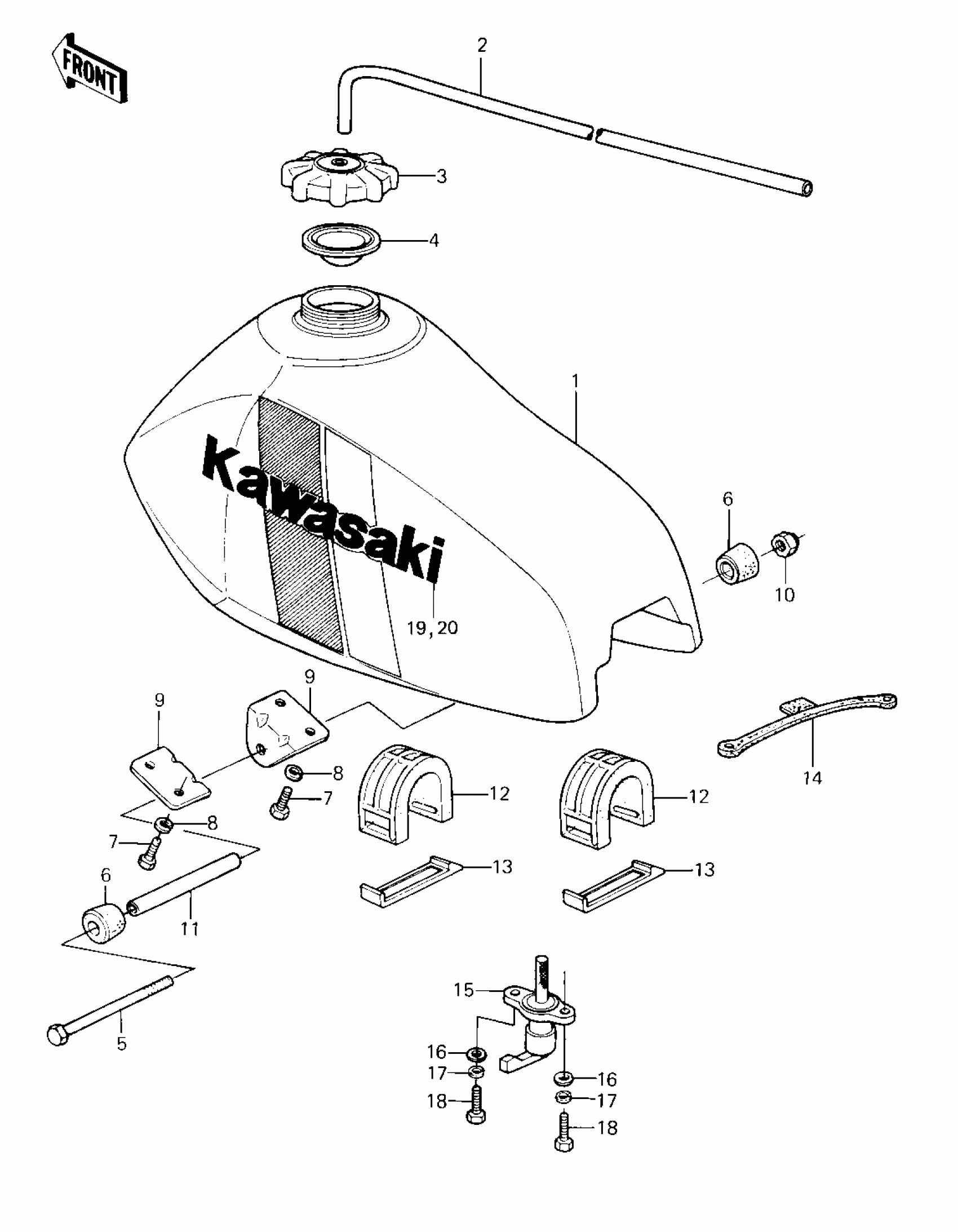

Kawasaki KX80 FUEL TANK ('81 KX80-C1) Diagram

TANK-FUEL,L.GREEN

TUBE,5X5.6X280

CAP-TANK,FUEL

GASKET,FUEL TANK CAP

BOLT 6X90

DAMPER,FUEL TANK FITT

BOLT,6X10

WASHER SPRING 6MM

BRACKET,FUEL TANK

NUT,LOCK,6MM

DAMPER,FUEL TANK

BAND,FUEL TANK

BAND,FUEL TANK

TAP-ASSY,FUEL

WASHER PLAIN 6MM

WASHER SPRING 6MM

BOLT-UPSET,6X16

PATTERN A TANK LH

PATTERN A TANK RH
