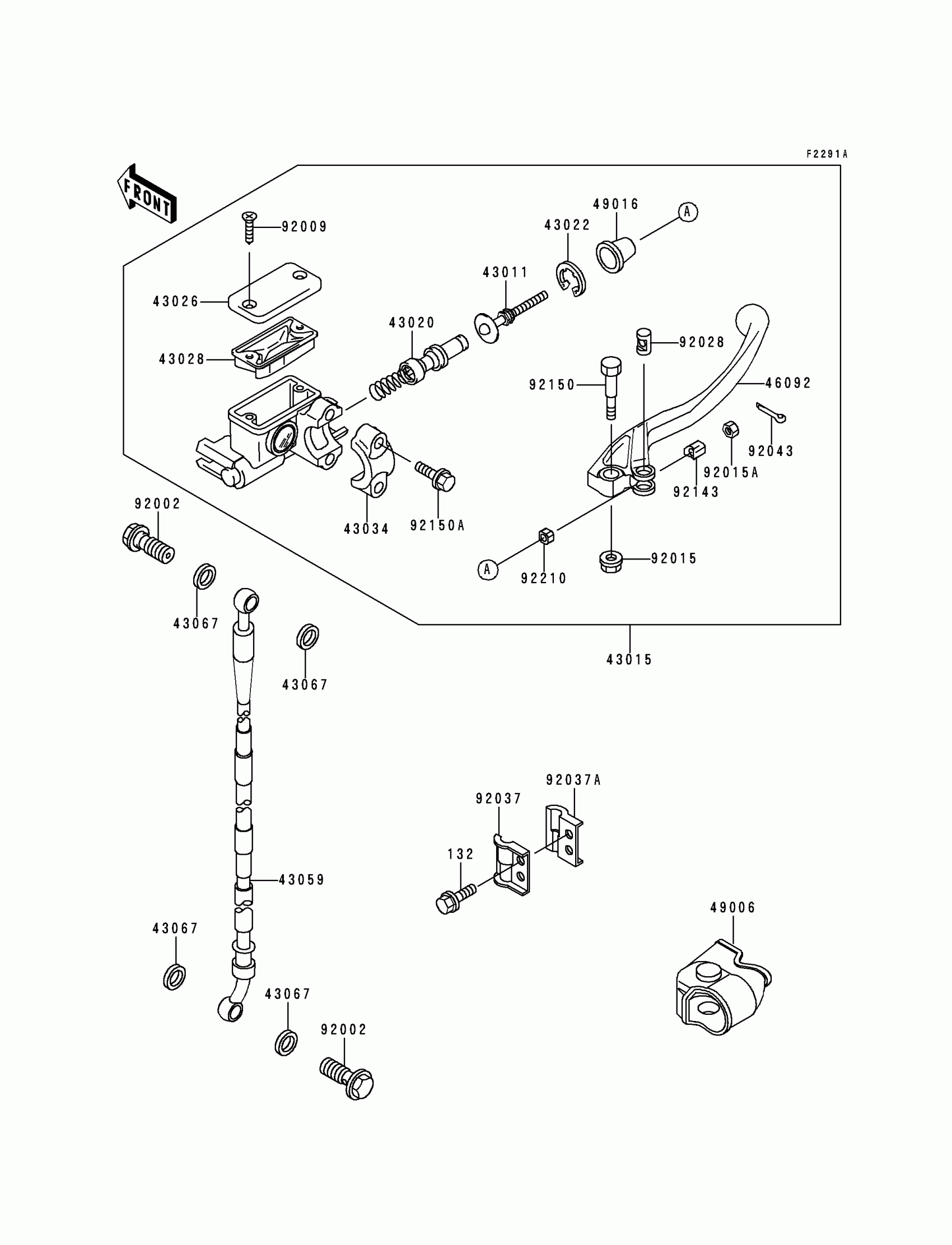

Kawasaki KX80 Front Master Cylinder(KX80-R7) Diagram
#
Description
Price
132
BOLT-FLANGED-SMALL,6X16
132G0616
$1.47
43011
ROD-BRAKE,FR MASTER CYLINDER
43011-1166
$22.10
43015
CYLINDER-ASSY-MASTER,FR
43015-1594
$309.82
43020
PISTON-COMP-BRAKE
43020-1115
$37.72
43022
STOPPER-BRAKE,PISTON
43022-1010
$4.65
43026
CAP-BRAKE
43026-1075
$13.61
43028
DIAPHRAGM
43028-1067
$18.72
43034
HOLDER-BRAKE
43034-1110
$19.45
43059
HOSE-BRAKE,FR
43059-1965
Unavailable
43067
WASHER,10.5X15X1.5
43067-001
$2.15
46092
LEVER-GRIP,FRONT BRAKE
46092-1191
$25.52
49006
BOOT,FRONT BRAKE LEVER
49006-1286
$14.63
49016
COVER-SEAL,MASTER CYLINDER
49016-1044
$8.68
92002
BOLT,OIL,L=23
92002-1888
$5.48
92009
SCREW,4MM
92009-1458
$3.21
92015
NUT,FLANGED,6MM
92015-1528
$5.52
92015A
NUT,ADJUST
92015-1642
$3.92
92028
BUSHING
92028-1792
$12.60
92037
CLAMP,BRAKE HOSE,OUTSIDE
92037-1362
$7.34
92037A
CLAMP,BRAKE HOSE,INSIDE
92037-1363
$7.34
92043
PIN
92043-1539
$2.93
92143
COLLAR
92143-1882
$9.18
92150
BOLT,LEVER SET
92150-1451
$14.23
92150A
BOLT
92150-1452
$5.52
92210
NUT,ADJUST
92210-1064
$4.99
