Description

Price

1

DRUM-ASSY,FR BRK

41034-1013

$150.27

2

CIRCLIP-TYPE-C,35MM

481J3500

$1.96

3

BEARING,BALL,#6200U

601B6200U

$14.14

4

BEARING,BALL,#6300

601B6300

$13.82

5

OIL SEAL,20X35X7

654A203507

$11.40

6

COLLAR,FRONT BRAKE

92027-1093

$11.06

7

PANEL-ASY,FR BRK

41035-1037

$205.85

7

PANEL-ASY,FR BRK

41035-1037

$205.85

8

SHOE,BRAKE

41048-1021

$29.61

9

SPRING,BRAKE SHOE

92081-1766

$8.03

10

CAM,BRAKE,FRONT

41050-1009

Unavailable

11

LEVER,BRAKE CAM,FRONT

41053-1011

Unavailable

12

NUT,6MM

41072-007

$3.92

13

INDICATOR,BRAKE SHOE

41085-1002

Unavailable

14

O RING,12MM

670B2012

$3.23

15

BOLT,HEX HEAD,6X30

92001-1135

Unavailable

16

AXLE,FRONT

41068-1011

Unavailable

17

NUT,FLANGED,10MM

92015-1415

$4.69

17

NUT,FLANGED,10MM

92015-1415

$4.69

18

COLLAR,FRONT AXLE

92027-1094

Unavailable

19

WASHER

92022-257

Unavailable

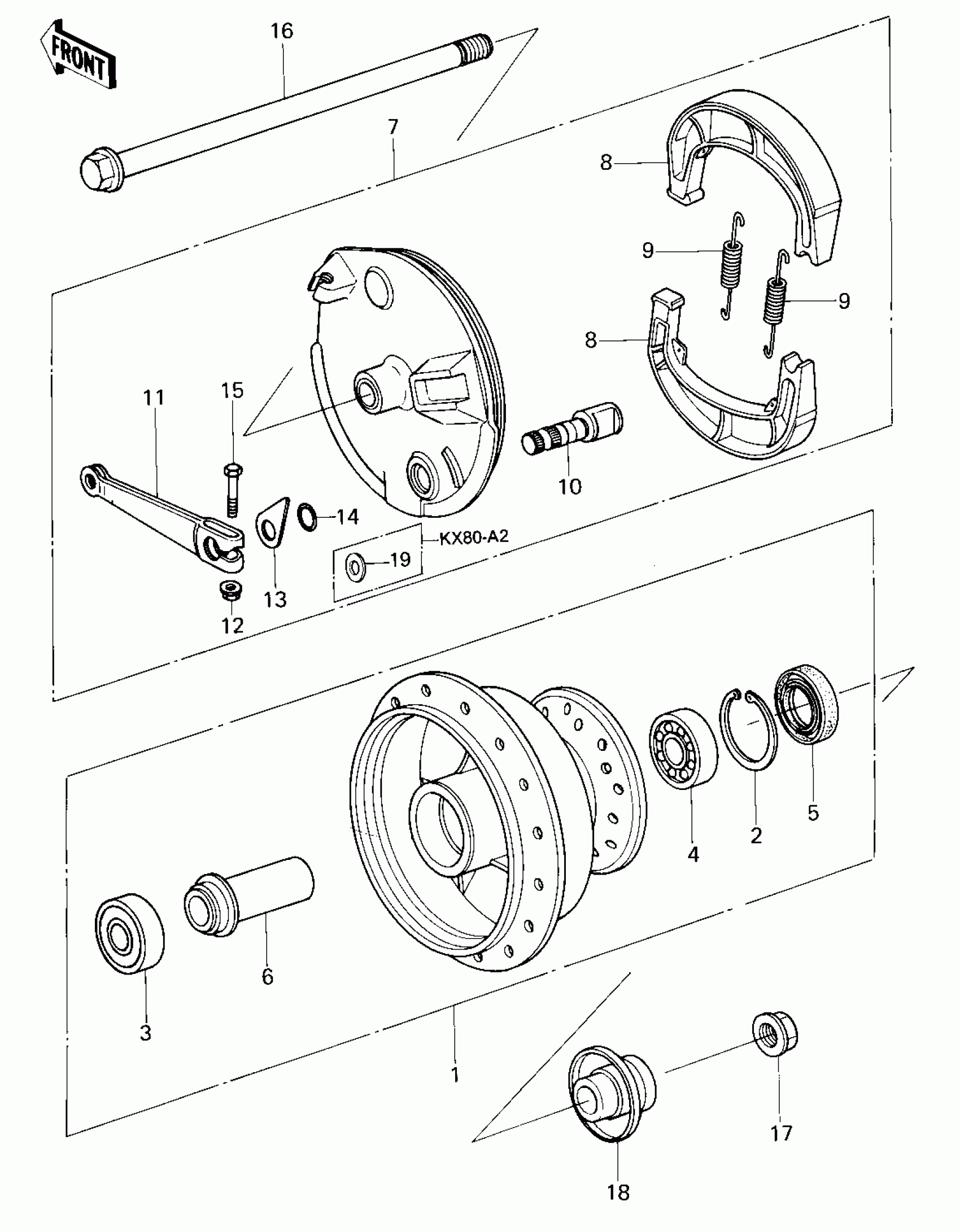

Kawasaki KX80 FRONT HUB/BRAKE Diagram

DRUM-ASSY,FR BRK

CIRCLIP-TYPE-C,35MM

BEARING,BALL,#6200U

BEARING,BALL,#6300

OIL SEAL,20X35X7

COLLAR,FRONT BRAKE

PANEL-ASY,FR BRK

PANEL-ASY,FR BRK

SHOE,BRAKE

SPRING,BRAKE SHOE

CAM,BRAKE,FRONT

LEVER,BRAKE CAM,FRONT

NUT,6MM

INDICATOR,BRAKE SHOE

O RING,12MM

BOLT,HEX HEAD,6X30

AXLE,FRONT

NUT,FLANGED,10MM

NUT,FLANGED,10MM

COLLAR,FRONT AXLE

WASHER
