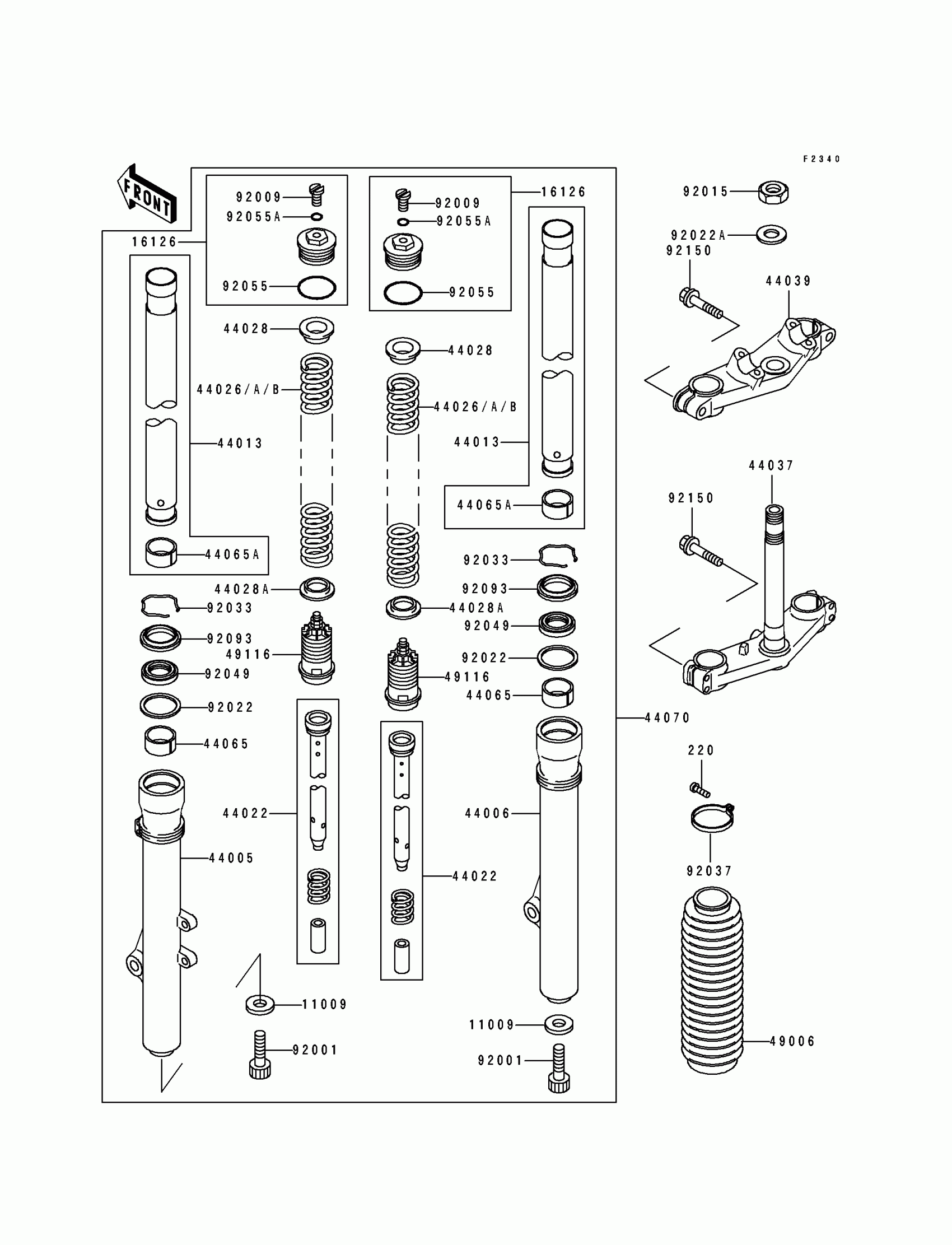

Kawasaki KX80 Front Fork(KX80-R4/R5) Diagram
#
Description
Price
11009
GASKET,FORK CYLINDER BOLT
11009-1127
$5.18
16126
VALVE,AIR
16126-1265
Unavailable
44005
PIPE-LEFT FORK OUTER
44005-1314
Unavailable
44006
PIPE-RIGHT FORK OUTER
44006-1311
$247.34
44013
PIPE-FORK INNER
44013-1360
Unavailable
44022
CYLINDER-FORK
44022-1271
Unavailable
44026
SPRING-FRONT FORK,K=0.26
44026-1506
Unavailable
44026A
SPRING-FRONT FORK,K=0.25
44026-1516
Unavailable
44026B
SPRING-FRONT FORK,K=0.27
44026-1517
Unavailable
44028
GUIDE-FORK SPRING
44028-1059
Unavailable
44028A
GUIDE-FORK SPRING
44028-1068
Unavailable
44037
HOLDER-FORK UNDER
44037-1293
Unavailable
44039
HOLDER-FORK UPPER
44039-1220
Unavailable
44065
BUSHING-FRONT FORK
44065-1106
$20.51
44065A
BUSHING-FRONT FORK,INNER PIPE
44065-1107
Unavailable
44070
DAMPER-ASSY,FORK
44070-5053
$1,228.32
49006
BOOT,FORK,VIOLET
49006-1273-VW
Unavailable
49116
VALVE-ASSY,FORK
49116-1098
Unavailable
92001
BOLT,FORK CYLINDER
92001-1309
$7.62
92009
SCREW
92009-1568
$7.21
92015
NUT,STEERING STEM,22MM
92015-1653
$16.69
92022
WASHER
92022-1242
$8.60
92022A
WASHER,STEERING STEM
92022-1873
$7.45
92033
RING-SNAP,FORK
92033-1047
$6.46
92037
CLAMP,BOOT,BLACK
92037-1321
Unavailable
92049
SEAL-OIL,FRONT FORK
92049-1180
$22.14
92055
RING-O,FORK TOP CAP
92055-1050
$6.27
92055A
RING-O,2.8X6.6X1.9
92055-1441
$4.33
92093
SEAL,FRONT FORK
92093-1166
$18.22
92150
BOLT,FLANGED,8X35
92150-1499
$5.50
220
SCREW-PAN-CROS,4X16
220C0416
$1.69
