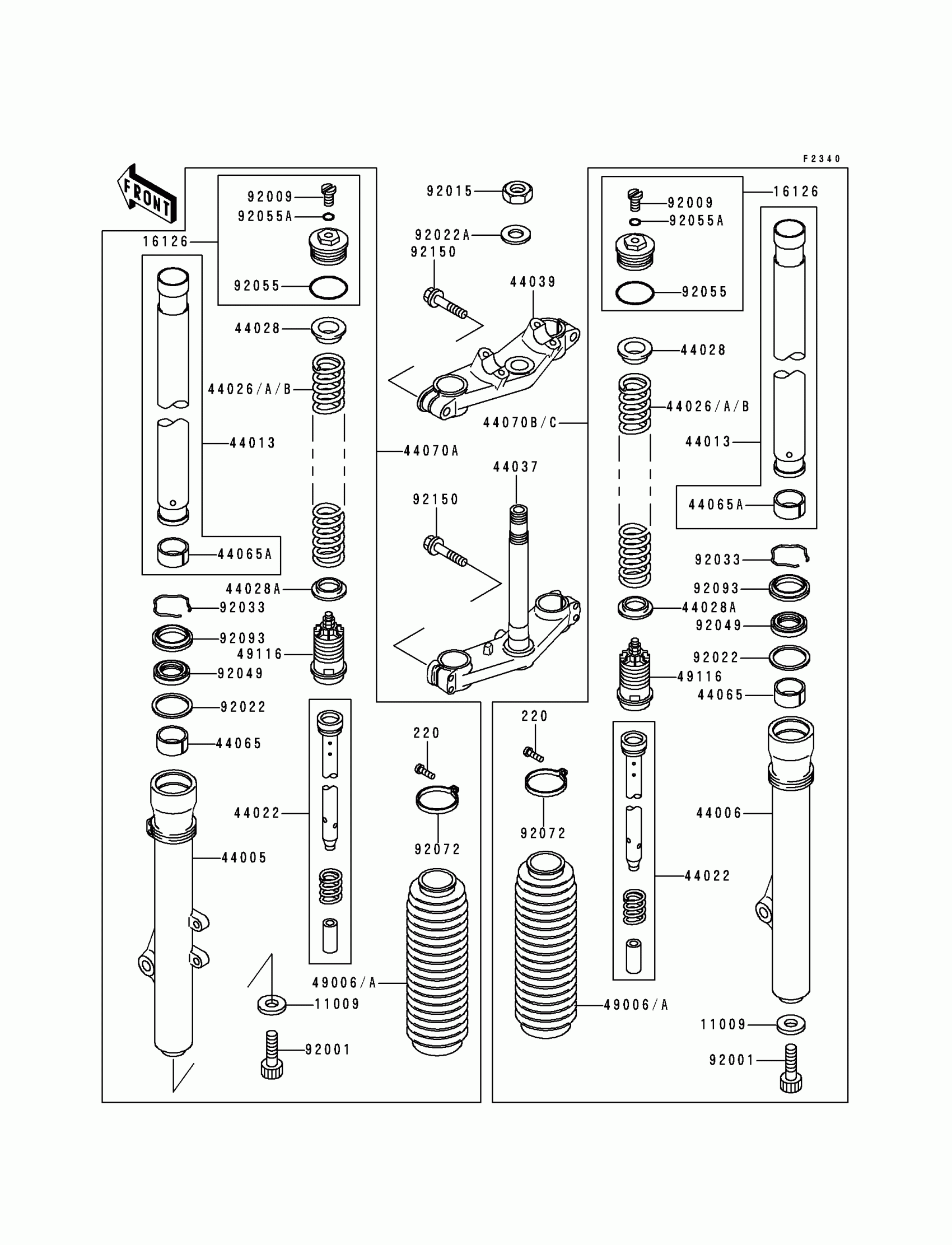

Kawasaki KX80 Front Fork(KX80-R2/R3) Diagram

#

Description
Price

220

SCREW-PAN-CROS,4X16

220C0416

$1.69

11009

GASKET,FORK CYLINDER BOLT

11009-1127

$5.18

16126

VALVE,AIR

16126-1265

Unavailable

44005

PIPE-LEFT FORK OUTER

44005-1314

Unavailable

44006

PIPE-RIGHT FORK OUTER

44006-1311

$247.34

44013

PIPE-FORK INNER

44013-1360

Unavailable

44022

CYLINDER-FORK

44022-1271

Unavailable

44026

SPRING-FRONT FORK,K=0.26

44026-1506

Unavailable

44026A

SPRING-FRONT FORK,K=0.25

44026-1516

Unavailable

44026B

SPRING-FRONT FORK,K=0.27

44026-1517

Unavailable

44028

GUIDE-FORK SPRING

44028-1059

Unavailable

44028A

GUIDE-FORK SPRING

44028-1068

Unavailable

44037

HOLDER-FORK UNDER

44037-1293

Unavailable

44039

HOLDER-FORK UPPER

44039-1220

Unavailable

44065

BUSHING-FRONT FORK

44065-1106

$20.51

44065A

BUSHING-FRONT FORK,INNER PIPE

44065-1107

Unavailable

44070

DAMPER-ASSY,FORK

44070-5053

$1,228.32

49006A

BOOT,FORK,BLUE

49006-1273-GF

$45.36

49116

VALVE-ASSY,FORK

49116-1098

Unavailable

92001

BOLT,FORK CYLINDER

92001-1309

$7.62

92009

SCREW

92009-1568

$7.21

92015

NUT,STEERING STEM,22MM

92015-1653

$16.69

92022

WASHER

92022-1242

$8.60

92022A

WASHER,STEERING STEM

92022-1873

$7.45

92033

RING-SNAP,FORK

92033-1047

$6.46

92037

CLAMP,BOOT,BLACK

92037-1321

Unavailable

92049

SEAL-OIL,FRONT FORK

92049-1180

$22.14

92055

RING-O,FORK TOP CAP

92055-1050

$6.27

92055A

RING-O,2.8X6.6X1.9

92055-1441

$4.33

92093

SEAL,FRONT FORK

92093-1166

$18.22

92150

BOLT,FLANGED,8X35

92150-1499

$5.50
