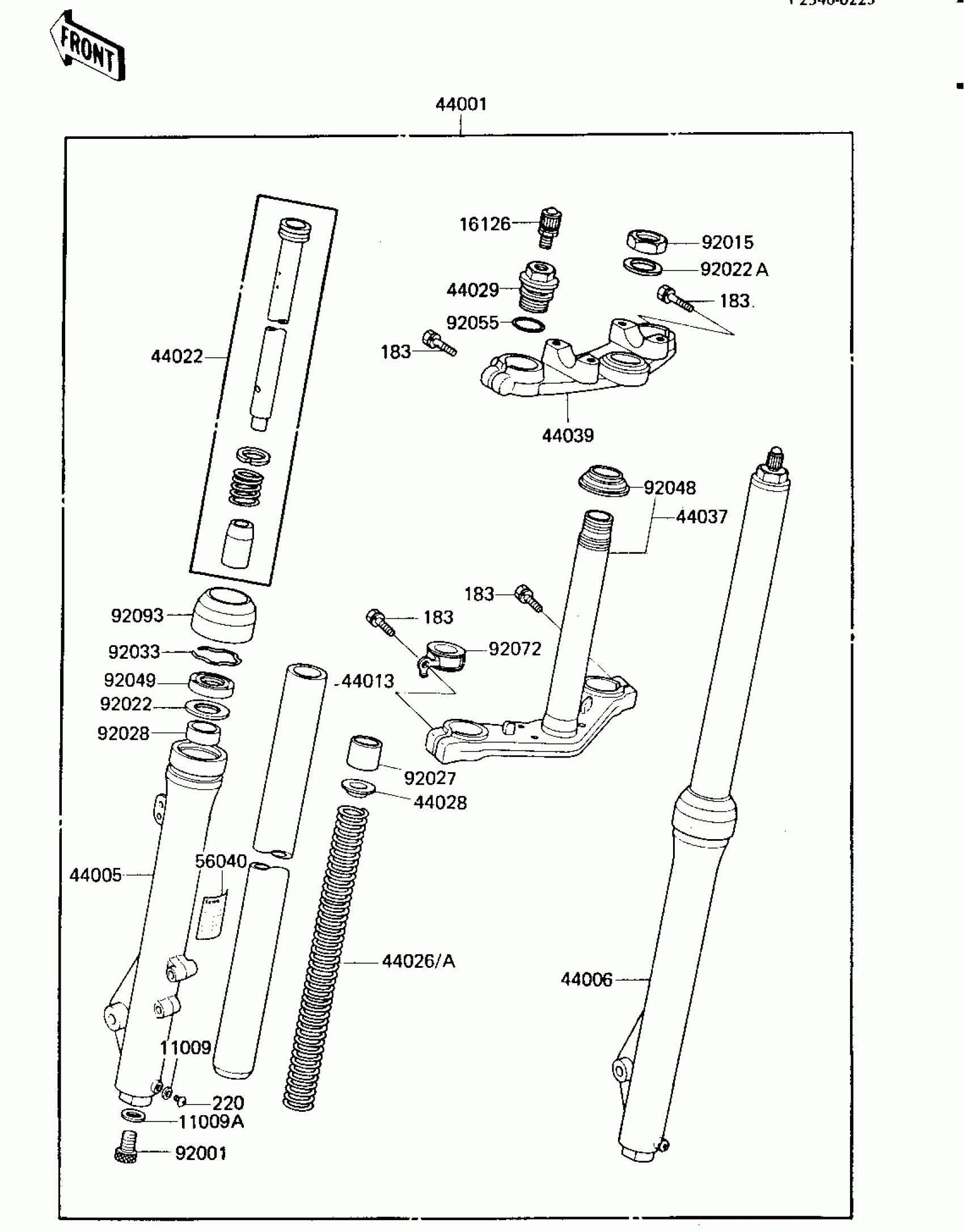

Kawasaki KX80 FRONT FORK ('84 KX80-E2) Diagram
#
Description
Price
11009
GASKET,FORK DRAIN PLUG
44045-002
$5.18
11009A
GASKET
44045-057
$4.86
16126
VALVE,AIR FRONT FORK
16126-1048
Unavailable
44001
FORK-FRONT
44001-1532
$699.86
44005
PIPE LEFT FORK OUTER
44005-1208
$191.82
44006
PIPE RIGHT FORK OUTER
44006-1208
$169.46
44013
PIPE-FORK INNER
44013-1225
$273.29
44022
CYLINDER-FORK
44022-1160
$59.74
44026
SPRING-FRONT FORK,K=0
44026-1266
$31.49
44026A
SPRING-FRONT FORK,K=0
44026-1267
$32.14
44028
GUIDE,FORK SPRING
44028-033
Unavailable
44029
SEAT-FORK SPRING
44029-1105
$43.61
44037
HOLDER-FORK UNDER
44037-1162
$239.99
44039
HOLDER-FORK UPPER
44039-1108
$117.94
56040
LABEL-WARNING,FRONT F
56040-1115
$3.27
92001
BOLT,SOCKET,FORK CYLINDER
44041-040
$6.57
92015
NUT,FORK TOP,22MM
92015-1361
$19.14
92022
WASHER,FORK
92022-1527
Unavailable
92022A
WASHER,FORK TOP
92022-1528
$8.92
92027
COLLAR,L=25
92027-1759
$6.61
92028
BUSHING,FORK
92028-1298
Unavailable
92033
RING-SNAP,FORK
92033-1165
Unavailable
92048
RACE,STEERING STEM BEARING
92047-010
$10.51
92049
SEAL-OIL,FORK
92049-1179
Unavailable
92055
RING-O,FORK SPRING SEAT
92055-1135
$7.55
92072
CLAMP,CABLE
92072-1027
Unavailable
92093
SEAL,FORK
92093-1165
$23.41
183
BOLT-UPSET-WS-SMALL
183G0835
$6.16
220
SCREW PAN HEAD 4X8
220B0408
$0.67
