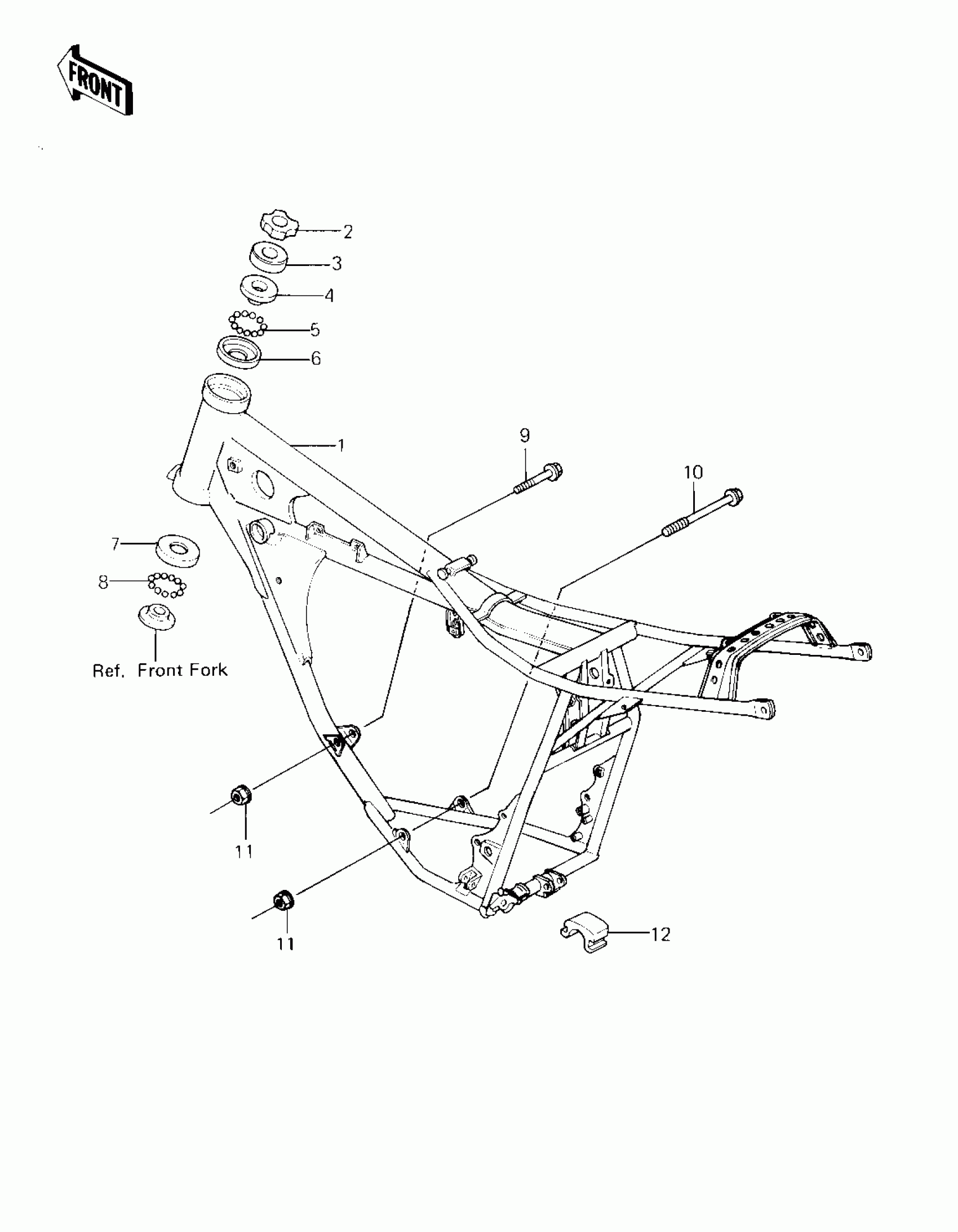

Kawasaki KX80 FRAME/FRAME FITTINGS ('81 KX80-C1) Diagram

#

Description

Price

1

FRAME

32002-1187

Unavailable

2

NUT,STEERING LOCK,25MM

92090-022

$21.61

3

CAP,STEERING STEM

46098-018

$6.51

4

RACE,STEERING STEM BEARING

92047-014

$12.72

5

BALL-STEEL,3/16

600A0600

$1.07

6

RACE,STEERING STEM BEARING

92048-009

$14.10

7

RACE,STEERING STEM BEARING,LWR

92048-005

$12.37

8

BALL-STEEL,1/4

600A0800

$0.62

9

BOLT-FLANGED,8X60

131G0860

$1.63

10

BOLT,8X105

92001-1367

$8.03

11

NUT,8MM

92015-1143

$0.65

12

GUIDE,CHAIN

12053-1052

Unavailable
